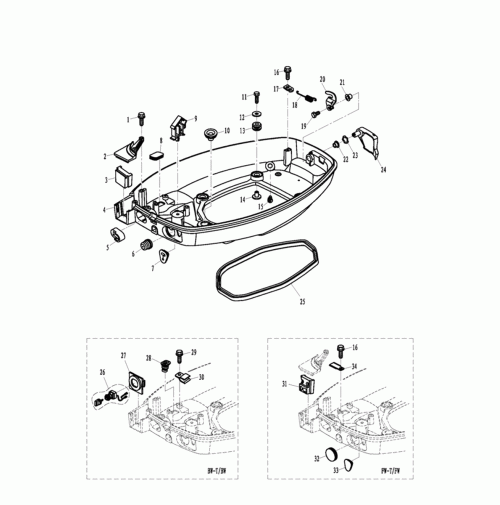

BOTTOM COWLING - 2 Strock for T40
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | GB/T9074.14-M6x25 | BOLT M6x25 | 97095-06025-00
|
| 2 | T40-03000005 | COVER, BOTTOM COWLING | 66T-42738-00-5B
|
| 3 | T40-03000004 | JAM, RUBBER | 66T-42725-00
|
| 4 | T40-03000001 | BOTTOM COWLING | 66T-42710-01-4D
|
| 5 | T40-03000003 | SPACER, FUEL FILTER | 66T-24329-00
|
| 6 | F15-05000006 | JACKET, BELLOWS
| 0.00
|
| 7 | F15-01000015 | JACKET, THROTTLE CABLE | 0.00
|
| 8 | F15-05000003 | RUBBER PLUG, QUADRATE | 688-42726-10
|
| 9 | F15-05000008 | SQUARE CLAMP A | 90465-25M57
|
| 10 | T40-03000006 | JACKET, SHIFT ROD | 676-42727-00
|
| 11 | GB/T9074.14-M6x30 | BOLT M6x30 | 0.00
|
| 12 | F25-00000004 | BIG WASHER 6 | 92992-06100
|
| 13 | F25-03000006 | DAMPER | 6BG-42748-00
|
| 14 | T40-03000011 | BUSH, DAMPER | 90387-06M41
|
| 15 | F15-05000009 | PIPE, JOINT | 6E5-44391-00
|
16
| GB/T9074.14-M6x20 | BOLT M6x20 | 97095-06020-00
|
17
| T40-03000008 | BRACKET,TENSION SPRING | 66T-43144-00
|
| 18 | F15-05000026 | SPRING, LOCKED BLOCK | 90506-18010
|
19
| GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73
|
| 20 | F25-03020000
| LOCKING HOOK ASSY
| 0.00
|
| 21 | F15-05000036
| BUSH B
| 0.00
|
| 22 | F15-05000022
| BUSH A
| 90386-12MA2
|
| 23 | F15-05000023
| WAVE WASHER
| 90206-12052
|
| 24 | T40-03000100
| LOCKING HANDLE ASSY
| 66T-42815-00-4D
|
| 25 | T40-03000002
| SEAL, BOTTOM COWLING
| 66T-42716-00
|
| 26 | T40-03000200BW
| START SWITCH ASSY
| 0.00
|
| 27 | T40-03000008BW
| FIXED PLATE, SWITCH
| 0.00
|
| 28 | F20-03000003
| JACKET, BELLOWS
| 0.00
|
| 29 | GB/T5783-M6x16
| BOLT M6x16
| 0.00
|
| 30 | T40-03000012BW
| CLAMP, POWER CABLE
| 0.00
|
| 31 | T40-03000012W
| JAM, RUBBER
| 0.00
|
| 32 | F25-03000024W
| RUBBER PLUG, CIRCULAR B
| 0.00
|
| 33 | F25-03000025W
| JAM, THROTTLE CABLE
| 0.00
|
| 34 | T40-03000011W
| PLATE, WIRE
| 0.00
|
