ELECTRICAL 1 - 2 Strock for T40
- Brand: Yamaha
- Product Code: ELECTRICAL 1 - 2 Strock for T40
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

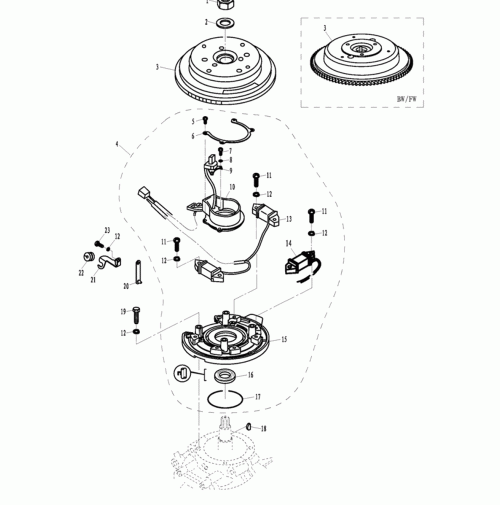

ELECTRICAL 1 - 2 Strock for T40
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | F25-05000026 | NUT, FLY WHEEL | 90170-20137 |
| 2 | F25-05000025 | WASHER, FLYWHEEL NUT | 90201-21M18 |
| 3 | T40-05050000 | FLYWHEEL ASSY | 66T-85550-10 |
| T40-05000600W | FLYWHEEL ASSY | 66T-85550-00 | |
| 4 | T40-05040000 | STATOR COIL ASSY | 66T-85560-10 |
| T40-05040000W | STATOR COIL ASSY | 0.00 | |
| 5 | GB/T818-M4x6 | SCREW M4x6 | 0.00 |
| 6 | T40-05040003 | PLATE,PULSER COIL | 0.00 |
| 7 | GB/T818-M4x8 | SCREW M4x8 | 68580-04008 |
| 8 | GB/T97.1-4 | WASHER 4 | 0.00 |
| 9 | T40-05040100 | PULSER COIL ASSY | 66T-85582-00 |
| 10 | T40-05040009 | BRACKET, PULSER COIL | 0.00 |
| 11 | GB/T818-M6x35 | SCREW M6x35 | 0.00 |
| 12 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 13 | T40-05040007 | CHARGE COIL | 66T-85520-00 |
| 14 | T40-05040008W | LIGHTING COIL | 0.00 |
| 15 | T40-05040001 | BASE, STATOR COIL | 0.00 |
| 16 | T40-05040008 | OIL SEAL 35x50x8 | 93102-35M18 |
| 17 | T40-05040002 | O-RING, STATOR COIL | 93210-75M51 |
| 18 | T40-05000018 | WOODRUFF KEY, FLY WHEEL | 90280-05015 |
| 19 | GB/T5782-M6x40 | BOLT M6x40 | 0.00 |
| 20 | T40-05040004 | CLAMP, NYLON | 90464-12M00 |
| 21 | T40-05000022 | CLAMP | 90465-15M74 |
| 22 | T40-05040005 | WASHER, RINGENT | 90480-10M71 |
| 23 | GB/T5783-M6x16 | BOLT M6x16 | 0.00 |
