ELECTRIC 3 - 2 Strock for T40
- Brand: Yamaha
- Product Code: ELECTRIC 3 - 2 Strock for T40
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

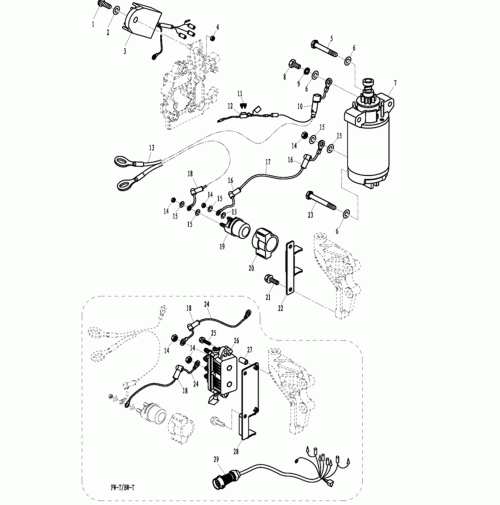

ELECTRIC 3 - 2 Strock for T40
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | GB/T818-M5x30 | SCREW M5x30 | 98503-05028 |
| 2 | GB/T97.1-5 | WASHER 5 | 6Y1-24329-00 |
| 3 | F15-07060001 | RECTIFIER ASSY | 6G1-81970-62 |
| 4 | GB/T6170-M5 | NUT M5 | 95380-05600 |
| 5 | GB/T5782-M8x50 | BOLT M8x50 | 0.00 |
| 6 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 7 | T40-05000500W | STARTER MOTOR | 0.00 |
| 8 | GB/T5783-M8x16 | BOLT M8x16 | 97095-08016 |
| 9 | GB/T93-8 | WASHER, SPRING 8 | 92995-08100 |
| 10 | F25-05170201W | JACKET A, POWER CABLE | 0.00 |
| 11 | T40-05000040W | FUSE 10A | 0.00 |
| 12 | F25-05090100W | FUSE ASSY | 0.00 |
| 13 | F15-07150200W | POWER CABLE ASSY | 689-82105-13 |
| 14 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 15 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 16 | F15-07150501W | JACKET, POWER CABLE | 0.00 |
| 17 | F15-07150500W | POWER CABLE, MOTOR | 0.00 |
| 18 | F25-05170202W | JACKET B, POWER CABLE | 682-82119-01 |
| 19 | F15-07150300W | STARTER RELAY ASSY | 6G1-81941-10 |
| 20 | F15-07150301W | COVER, RELAY | 0.00 |
| 21 | GB/T9074.14-M6x20 | BOLT M6x20 | 97095-06020-00 |
| 22 | T40-05000030W | FIXED PLATE, RELAY | 0.00 |
| 23 | F15-07000028 | FLANGE BOLT M8X75 | 90105-08M78 |
| 24 | T85-05030002 | EARTH WIRE BLACK | 6H0-81949-10 |
| 25 | GB/T9074.14-M6x35 | BOLT M6x35 | 0.00 |
| 26 | T85-05030200 | RELAY | 61A-81950-00 |
| 27 | F25-05000037 | TUBE, PLATE | 0.00 |
| 28 | T40-05000300W | FIXED PLATE, RELAY | 0.00 |
| 29 | F25-05090200W | IGNITION WIRE ASSY, 10 PIN | 0.00 |
