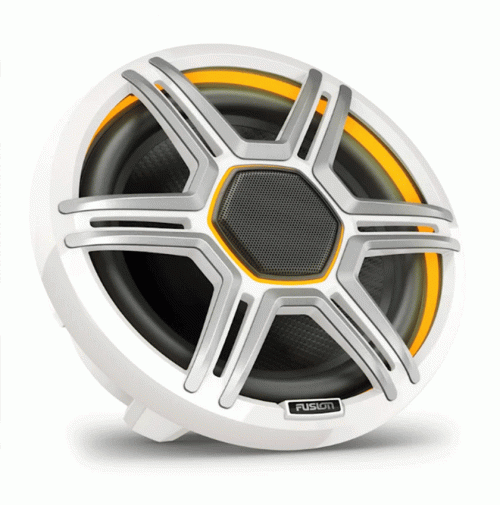

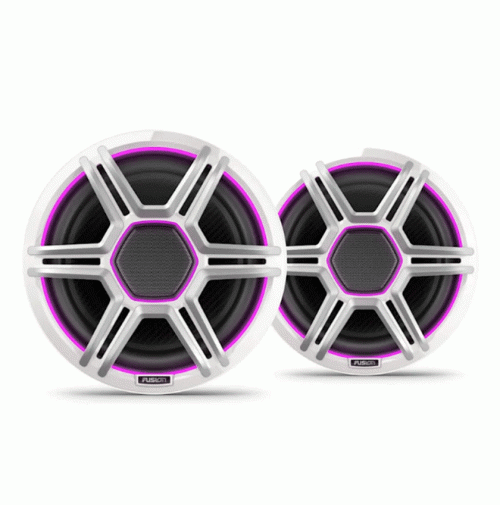

Apollo Subwoofer 8.8" LED Marine Speakers with Sports White Grilles - (AP-FL88SPW) - 010-02918-21 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02918-21
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty
Apollo Subwoofer 8.8" LED Marine Speakers with Sports White Grilles - (AP-FL88SPW) - 010-02918-21 - Fusion :
IN THE BOX:
| Lighting Features | |
| LED CONNECTION TYPES | 150 mm (5.9″) water-resistant 6-way connector (6-pin, CRGBW and ground) |
| Mounting Dimensions | |
| Mounting depth clearance | 6.5″: 77 mm (3.03″ ) 7.7″: 86 mm (3.39″) 8.8″: 105 mm (4.13″) |
| Mounting diameter clearance | 6.5″: 136 mm (5.35″) 7.7″: 156 mm (6.14″) 8.8″: 180 mm (7.09″) |
| GENERAL | |
| COLOUR | Sports White or Sports Gray |
| Cone material | CURV® Cone Technology with rubber surround |
| CONTINUOUS POWER HANDLING (RMS) | 6.5″: 75 W 7.7″: 100 W 8.8″: 130 W |
| Frequency response | 6.5″: 70 Hz-22 kHz 7.7″: 60 Hz-22 kHz 8.8″: 50 Hz-20 kHz |
| LED lighting | Yes - CRGBW (5 colours) |
| LED load current @14.4 VDC (max) | 6.5″: 130 mA per colour, per speaker 7.7″: 140 mA per colour, per speaker 8.8″: 180mA per colour, per speaker |
| LED supply voltage | 10.8-16 VDC |
| Nominal impedance | 4 Ω |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| PHYSICAL DIMENSIONS (DEPTH) | 6.5″: 103.1 mm (4.06″) 7.7″: 113.2 (4.46″) 8.8″: 134.1 (5.28″) |
| PHYSICAL DIMENSIONS (DIAMETER) | 10": 10.83" (275 mm) 12": 14.02" (356 mm) |
| Recommended amplifier power (watts RMS) | 6.5″: 25-150 W/Channel 7.7″: 30-200 W/Channel 8.8″: 40-260 W/Channel |
| Sensitivity | 6.5″: 90 dB 7.7″/8.8″: 91 dB |
| SIZES | 6.5″/7.7″/8.8″ |
| SPEAKER TYPE | Coaxial |
| Tweeter type | Silk dome |
| Warranty | 3 years |
| Water and dust rating | IP66/IP67 |
| WEIGHT | 6.5″: 3.76 kg (8.3 lbs) 7.7″: 5.12 kg (11.3 lbs) 8.8″: 6.39 kg (14.1 lbs) |
| Connections | |
| speaker connections | 150 mm (5.9″) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors 6.3 mm (0.25″) positive and 4.8 mm (0.19″) negative) |
| Electrical | |
| COMPASS SAFE DISTANCE | 6.5″: 280 cm (9.19 ft) 7.7″: 300 cm (9.84 ft) 8.8″: 315 cm (10.33 ft) |
Tags: subwoofers, audio systems, marine entertainment, waterproof, square
