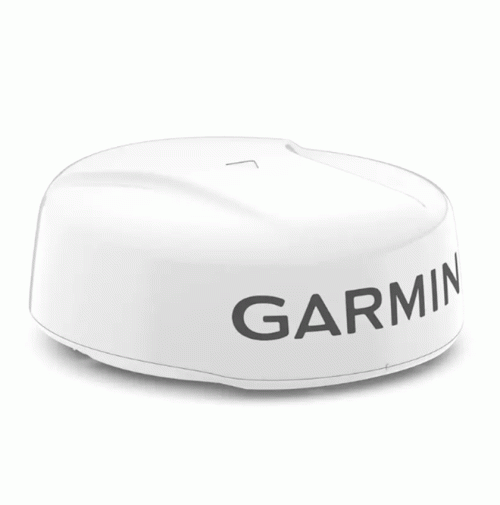

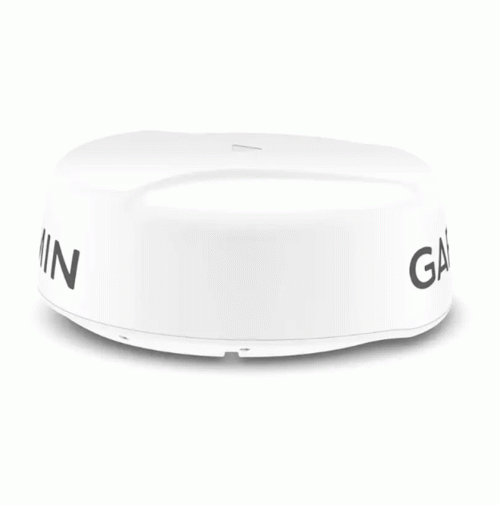

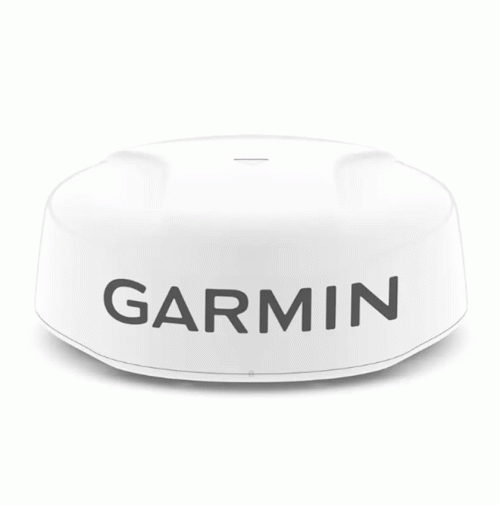

GMR Fantom - 18x/24x Dome Radar - 24x Radome - White - 50W - 010-02585-00 - Garmin
- Brand: Garmin
- Product Code: 010-02585-00
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty
GMR Fantom - 18x/24x Dome Radar - 24x Radome - White - 50W - 010-02585-00 - Garmin
IN THE BOX:
- GMR Fantom 18x or 24x Dome Radar(depending on model selected)
- Power cable (15 m/49.21 ft)
- Network cable (15 m/49.21 ft)
- Garmin Marine Network adapter cable (small connector to large connector)
- Installation instructions
- Mounting hardware kit and template
- Garmin Marine Network adapter cable (small connector to large connector)
| GENERAL | |
| Antenna length | 18x: 17″ (43.18 cm) 24x: 23″ (58.42 cm) |
| Beam width | 18x: 5.20° horizontal, 25° vertical 24x: 3.70° horizontal, 25° vertical |
| DIMENSION | 18x: 20″ x 9.80″ (50.80 x 24.90 cm) 24x: 25.40″ x 9.80″ (64.50 cm x 24.90 cm) |
| MAX RANGE | 48 NM |
| Minimum range | 6 meters |
| Radar type | Radome |
| Rotation speed (RPM) | Up to 60 rpm, depending on settings |
| Water rating | IPX7 |
| Weight , | 18x: 14.0 lbs 24x: 17.40 lbs |
| Radar Features | |
| AUTOBIRD | Yes |
| DUAL RADAR | Yes |
| Dual range support | Yes |
| DYNAMIC AUTO GAIN | Dynamic |
| ECHO TRAIL | Yes |
| MARPA TARGET TRACK | yes (requires heading sensor, sold separately) |
| MOTIONSCOPE | Yes |
| Radar overlay support | Yes |
| SCAN | Yes |
| TARGET SIZE | Yes |
| Electrical | |
| MAX POWER CONSUMPTION TRANSMITTING (NORMAL MODE) | 33 W |
| MAX POWER CONSUMPTION TRANSMITTING (POWER SAVE) | 24 W |
| POWER CONSUMPTION | 4 W |
| Power input | 10-32 V DC |
| TRANSITION POWER | 50 W |
