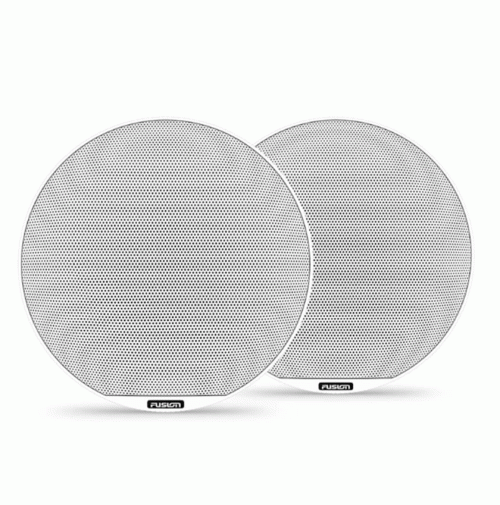

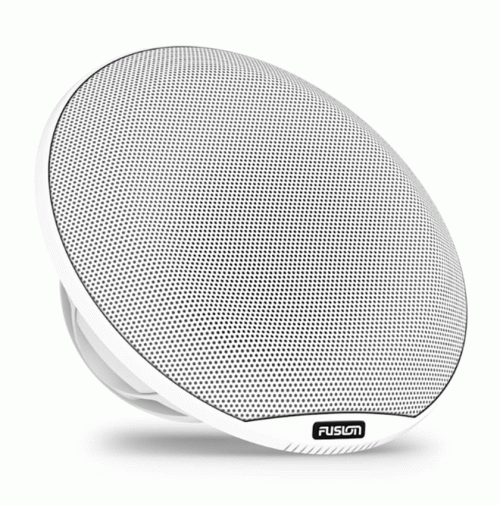

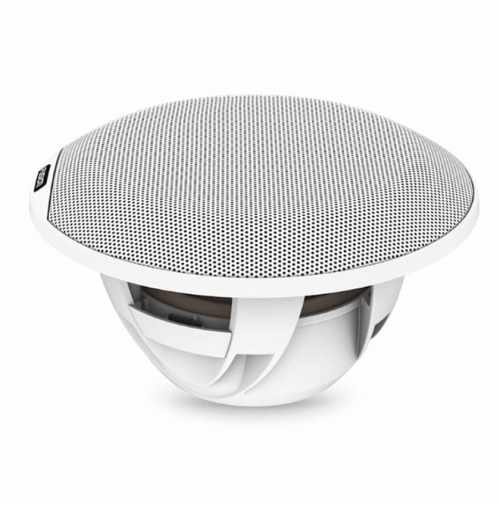

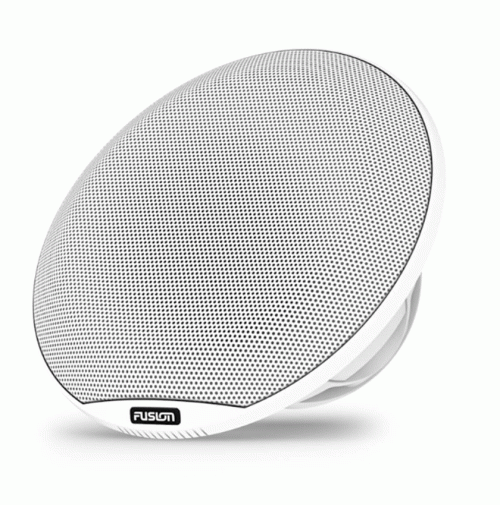

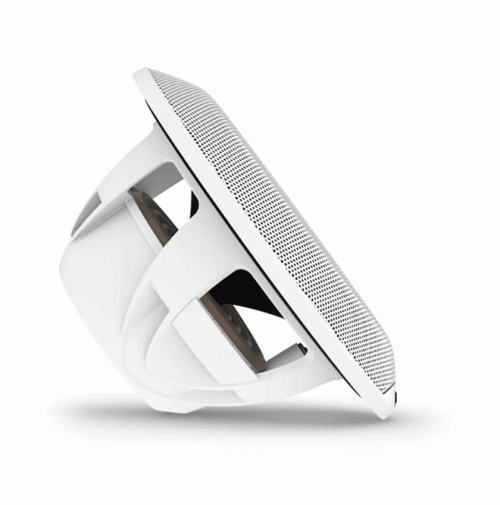

FUSION SIGNATURE SERIES 3I MARINE COAXIAL SPEAKERS 8.8" 330-WATT COAXIAL CLASSIC WHITE MARINE SPEAKERS (PAIR) - 010-02773-00 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02773-00
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty
FUSION SIGNATURE SERIES 3I MARINE COAXIAL SPEAKERS 8.8" 330-WATT COAXIAL CLASSIC WHITE MARINE SPEAKERS (PAIR) - 010-02773-00 - Fusion
IN THE BOX:
- One pair of speakers (based on what you select)
- 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6”)
- 2 water-resistant cable assemblies with 2-pin connector (5.9" (150mm))
- 2 water-resistant cable assemblies with 6-pin connector (5.9" (150mm), sports style with LED models only)
- Documentation
| Networking | |
| LED CONNECTION | Flying Lead with Water-resistant 6-way Connector, 150 mm (5.9") (selected Sport models only) |
| Mounting Dimensions | |
| FRONTAL GRILLE PROTRUSION | 6.5": 29 mm (1.14") 7.7": 29 mm (1.14") 8.8": 31 mm (1.34") |
| Mounting depth clearance | 6.5": 79 mm (3.11") 7.7": 86mm (3.39") 8.8": 106mm (4.13") |
| Mounting diameter clearance | 6.5": 136mm (5.35") 7.7": 156mm (6.14") 8.8": 188mm (7.44") |
| GENERAL | |
| COLOUR | Classic white or Sports white or Sports grey |
| Cone material | CURV® Cone Technology with rubber surround |
| CONTINUOUS POWER HANDLING (RMS) | 6.5": 75 W 7.7": 100 W 8.8": 130 W |
| Frequency response | 6.5": 70 Hz-22 kHz 7.7": 60 Hz-22 kHz 8.8": 50 Hz-20 kHz |
| LED lighting | Yes - CRGBW (selected Sport models only) |
| LED load current @14.4 VDC (max) | 300 mA (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| Nominal impedance | 4 Ω |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| PHYSICAL DIMENSIONS (DEPTH) | 6.5" (Classic): 103 mm (4.06") 6.5" (Sports): 104.5 mm (4.11") 7.7" (Classic): 109.5 mm (4.31") 7.7" (Sports): 111 mm (4.37") 8.8" (Classic): 131mm (5.16") 8.8" (Sports): 133mm (5.24") |
| PHYSICAL DIMENSIONS (DIAMETER) | 6.5" (Classic): 200 mm (7.87") 6.5" (Sports): 176 mm (6.93") 7.7" (Classic): 220 mm (8.66") 7.7" (Sports): 196 mm (7.72") 8.8" (Classic): 247 mm (9.75") 8.8" (Sports): 224 mm (8.82") |
| Recommended amplifier power (watts RMS) | General 6.5": 25-160 W/Channel 7.7": 25-220 W/Channel 8.8": 30-300 W/Channel |
| Sensitivity (1 watt @ 1 metre) | 6.5": 90 dB 7.7"/8.8": 91 dB |
| SIZES | 6.5"/7.7"/8.8" |
| SPEAKER TYPE | Coaxial |
| Tweeter type | Silk dome |
| Warranty | 3 years |
| Water and dust rating | IP65 |
| WEIGHT | 6.5" (Classic): 1.35 kg (3 lbs) 6.5" (Sports): 1.29 kg (2.8 lbs) 6.5" (Sports) with CRGBW: 1.32 kg (2.9 lbs) 7.7" (Classic): 1.8 kg (4 lbs) 7.7" (Sports): 1.76 kg (3.9 lbs) 7.7" (Sports) with CRGBW: 1.77 kg (3.9 lbs) 8.8" (Classic): 2.62 kg (5.8 lbs) 8.8" (Sports) with CRGBW: 2.61 kg (5.8 lbs) |
| Connections | |
| speaker connections | Flying Lead with Water-resistant 2-way Connector, 150mm (5.9") |
| Electrical | |
| COMPASS SAFE DISTANCE | 6.5": 310 cm (122") 7.7": 358 cm (141") 8.8": 412 cm (162") |
