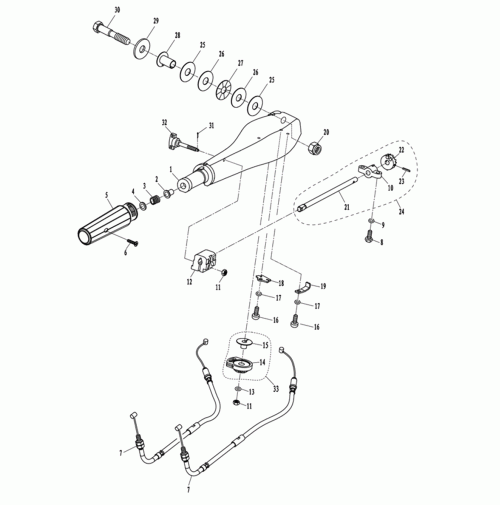

STEERING - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T36-01030001
| TILLER HANDLE
| 676-42111-03-4D
|
| 2 | F4-01090006
| BUSH
| 90386-08032
|
| 3 | F4-01090007
| SPRING
| 90501-23215
|
| 4 | GB/T848-10
| WASHER 10
| 90201-10M02
|
| 5 | T36-01030300
| GRIP ASSY, TILLER HANDLE
| 0.00
|
| 6 | GB/T820-M5x25
| SCREW M5x25
| 90152-05011
|
| 7 | T36-01030100
| THROTTLE CABLE ASSY
| 6F5-26311-00
|
| 8 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 9 | | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 10 | T36-01030203
| SUPPORT PLATE, THROTTLE
| 676-42159-00
|
| 11 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 12 | T36-01030006
| FRICTION BLOCK
| 6F5-42126-00
|
| 13 | GB/T93-6
| WASHER, SPRING 6
| 92995-06100
|
| 14 | T36-01030002
| BUSH, GEAR
| 90386-08M00
|
| 15 | T36-01030003
| GEAR, THROTTLE CABLE
| 0.00
|
| 16 | GB/T5783-M5x10
| BOLT M5x10
| 0.00
|
| 17 | GB/T97.1-5
| WASHER 5
| 6Y1-24329-00
|
| 18 | T36-01030004
| FIXED PLATE, THROTTLE CABLE
| 676-26392-00
|
| 19 | T36-01030005
| PLATE, THROTTLE CABLE
| 676-26392-00
|
| 20 | GB/T889.2-M12x1.25
| LOCK NUT M12x1.25
| 0.00
|
| 21 | T36-01030201
| LEVER, THROTTLE
| 676-42115-00
|
| 22 | T36-01030202
| GEAR, THROTTLE
| 650-42152-00-94
|
| 23 | GB/T879.2-3x24
| PIN 3x24
| 91690-30025
|
| 24 | T36-01030200
| THROTTLE LEVER ASSY
| 0.00
|
| 25 | T85-01030015
| DAMPER, HANDLE
| 90202-12092
|
| 26 | T85-01030016
| WASHER, HANDLE
| 90201-12537
|
| 27 | T85-01030017
| WAVE WASHER
| 90206-12054
|
| 28 | T85-01030013
| BUSH,NYLON
| 90386-12089
|
| 29 | GB/T96-12
| BIG WASHER 12
| 0.00
|
| 30 | T85-01030014
| BOLT M12x1.25x70
| 90101-12M06
|
| 31 | GB/T91-1.6x12
| COTTER PIN 1.6x12
| 0.00
|
| 32 | T20-01030200
| BOLT, FRICTION ADJUSTING
| 0.00
|
| 33 | T36-01030007
| GEAR ASSY, THROTTLE CABLE
| 676-42151
|
