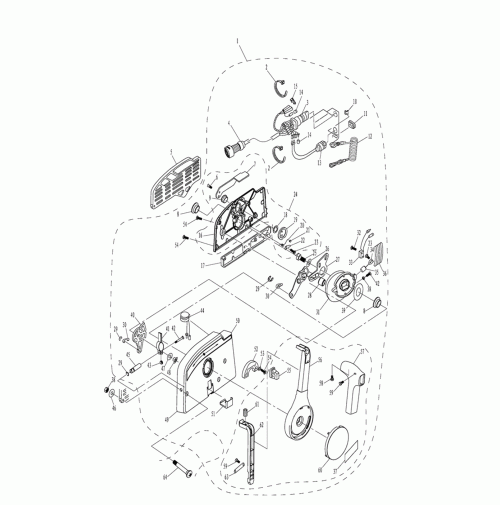

CONTROL BOX ASS'Y - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T20-13000000W | CONTROL BOX ASSY | 703-48230-16
|
| 2 | HT2.5*60 | NYLON CLAMP 2.5x60 | 0.00
|
| 3 | F15-13000200W | START SWITCH ASSY | 703-82510-43
|
| 4 | F15-13000100W | CONTROL WIRE ASSY | 0.00
|
| 6 | GB/T819.1-M5x12 | SCREW M5x12 | 0.00
|
| 7 | F15-13020007W
| INCHING HANDLE, THROTTLE | 703-48152-10
|
| 8 | F15-13000005W | BUSH, CAM | 0.00
|
| 9 | F15-13020006W | BUSH, HANDLE | 0.00
|
| 10 | F15-11000001W | BLOCK, RUBBER | 0.00
|
| 11 | F15-13000014W
| JACKET, CABLE
| 0.00
|
| 12 | F4-01090401
| STOPER, HANG ROPE ASSY
| 682-82556-00
|
| 13 | F15-13000400W
| ENGINE STOP SWITCH ASSY
| 688-82575-12
|
| 14 | F15-13000203W
| INSULATED PLUG B
| 90464-09M13
|
| 15 | F15-13000202W
| INSULATED PLUG A
| 0.00
|
| 16 | F15-13020001W
| COVER, CONTROL BOX
| 703-48212-10
|
| 17 | F15-13000013W
| SMALL COVER, CONTROL BOX
| 703-48213-10
|
| 18 | F15-13020005W
| WAVE WASHER B
| 0.00
|
| 19 | F15-13020100W
| LOCKED DISK ASSY
| 0.00
|
| 20 | F15-13020002W
| WRING SPRING
| 0.00
|
| 21 | F15-13020003W
| EACH LOCKED PULLEY
| 0.00
|
| 22 | F15-13020004W
| PLATE, PULLEY
| 0.00
|
| 23 | GB/T818-M4X6
| SCREW M4x6
| 0.00
|
| 24 | F15-13020000W
| COVER ASSY, CONTROL BOX
| 0.00
|
| 25 | GB/T9074.14-M8X30
| BOLT M8x30
| 0.00
|
| 26 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 27 | F15-13000500W
| CONTROL, THROTTLE
| 0.00
|
| 28 | F15-13000007W
| WASHER
| 0.00
|
| 29 | GB/T896-6
| CIRCLIP 6
| 0.00
|
| 30 | F25-07000007W
| JOINT B, REMOTE CABLE
| 703-48345-01
|
| 31 | F15-13000002W
| CAM
| 703-48232-00
|
| 32 | GB/T818-M3X14
| SCREW M3x14
| 0.00
|
| 33 | F15-13000800W
| INCHING SWITCH
| 703-82540-00
|
| 34 | F15-13000003W
| SPRING PLATE, SHIFT LEVER
| 703-48189-00
|
| 35 | F15-13000004W
| PULLEY, SHIFT LEVER
| 0.00
|
| 36 | F15-13000001W
| SPRING, SHIFT LEVER B
| 0.00
|
| 37 | F15-12000016W
| MARK 16
| 0.00
|
| 39 | F15-13000008W
| WASHER, CAM
| 0.00
|
| 40 | F15-13000700W
| SHIFT ROD
| 703-48271-00
|
| 41 | F15-13000601W
| ADJUSTING PLATE
| 0.00
|
| 42 | GB/T5783-M5X25
| BOLT M5x25
| 0.00
|
| 43 | GB/T6170-M5
| NUT M5
| 95380-05600
|
| 44 | F15-13000300W
| BUZZER ASSY
| 703-83383-11
|
| 45 | F15-13000602W
| ADJUSTING PIN
| 0.00
|
| 47 | F15-13000006W
| BUSH, HANDLE
| 0.00
|
| 48 | F15-13000011W
| BUSH, SHIFT SWING SHAFT
| 0.00
|
| 49 | F15-13000012W
| BRACKET, CONTROL BOX
| 703-48211-10
|
| 50 | F15-12000013W
| MARK 13
| 0.00
|
| 51 | F15-13000015W
| COVER, WATERPROOF
| 703-48219-10
|
| 52 | F15-13010010W
| BLOCK, CONTROL HANDLE
| 0.00
|
| 53 | GB/T956.1-5
| WASHER, LOCKED 5
| 0.00
|
54
| GB/T819.1-M5x18
| SCREW M5x18
| 0.00
|
55
| F15-13010003W
| JAM, BUTTON
| 0.00
|
56
| F15-13010001W
| HANDLE, CONTROL BOX
| 703-48221-10
|
57
| F15-13010002W
| TILLER, CONTROL BOX
| 703-48222-30
|
58
| GB/T84.5-ST4.8X12
|
|
|
59
| GB/T818-M4X10
| SCREW M4x10
| 0.00
|
60
| F15-13010009W
| COVER, CONTROL HANDLE
| 703-48215-10
|
61
| F15-13010005W
| SPRING
| 0.00
|
62
| F15-13010004W
| ORIENTATION, CONTROL
| 703-48223-10
|
| 63 | F15-13010008W
| FIXED PLATE, LOCATED
| 0.00
|
| 5 | F15-11000002W
| PLATE, CONTROL BOX
| 703-48293-10
|
| 38 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 46 | GB/T5287-6
| BIG WASHER 6
| 0.00
|
64
| GB/T820-M6X90
| SCREW M6x90
| 0.00
|
