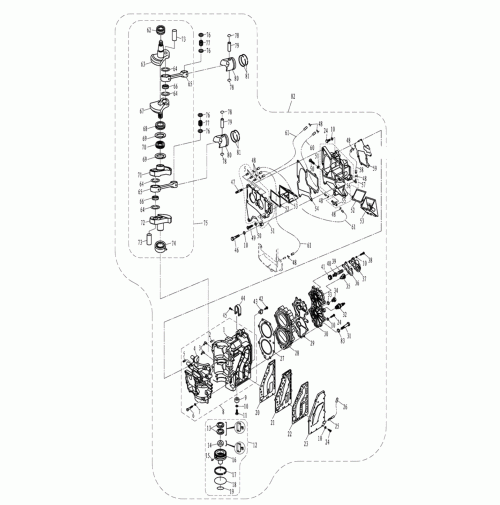

ENGINE ASSY (REPAIR KIT) - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T36-04010100
| CYLINDER CASE
| 0.00
|
| 2 | F25-00000014
| PIN 8x12
| 99530-08012
|
| 3 | T85-05010400
| VALVE CHECK ASSY
| 650-11370-01
|
| 4 | T36-04010201
| CRANKCASE
| 0.00
|
| 5 | T15-04010202
| PIPE, JOINT
| 624-14485-00
|
| 6 | T40-05000030
| BOLT M8x1.25x55
| 90119-10005
|
| 7 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 8 | T36-04010000
| CRANKCASE ASSY
| 6F6-15100-02-1S
|
| 9 | T40-05000001
| ANODE A, CRANKCASE
| 676-45251-00
|
| 10 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 11 | GB/T5783-M6x16
| BOLT M6x16
| 0.00
|
| 12 | T36-04020300
| OIL SEAL CASING ASSY
| 0.00
|
| 13 | T40-05010302
| OIL SEAL A 30x42x6
| 93101-30M33
|
| 14 | F25-02010002
| OIL SEAL 16x30x6
| 93104-16M01
|
| 15 | GB/T879.1-3x10
| PIN 3x10
| 0.00
|
| 16 | T36-04020306
| CASING, OIL SEAL
| 6F5-15396-01-5B
|
| 17 | T40-05020107
| CIRCLIP
| 93440-68M03
|
| 18 | T40-04000205
| O-RING 59.1x2.5
| 0.00
|
| 19 | T36-04020303
| O-RING A
| 93210-22M02
|
| 20 | T36-04000013
| GASKET, INNER COVER
| 6F5-41112-A0
|
| 21 | T36-04000014
| INNER COVER, EXHAUST
| 6F5-41111-01-1S
|
| 22 | T36-04000015
| GASKET, OUTER COVER
| 6F5-41114-A0
|
| 23 | T36-04000016
| OUTER COVER, EXHAUST
| 6F5-41113-01-1S
|
| 24 | GB/T9074.14-M6X25
| BOLT M6x25
| 97095-06025-00
|
| 25 | F4-04010102A
| PIPE, JOINT
| 0.00
|
| 26 | T36-04000017
| HOSE 5x10x260
| 0.00
|
| 27 | T36-04000001
| GASKET, CYLINDER HEAD
| 6F5-11181-00
|
| 28 | T36-04000002
| CYLINDER COVER
| 6F6-11111-00-1S
|
| 29 | T36-04000003
| GASKET, CYLINDER COVER
| 6F6-11193-A1
|
| 30 | T36-04000004
| OUTER COVER, CYLINDER
| 6F6-11191-00-1S
|
| 31 | T40-05000031
| BOLT M8x70
| 90119-08MA5
|
| 32 | BPR7HS
| SPARK PLUG BPR7HS
| 0.00
|
| 33 | T85-05000003
| GASKET, JAM
| 90430-14115
|
| 34 | T36-04000011
| JAM M14x14
| 0.00
|
| 35 | T15-04000010
| THERMOSTAT
| 688-12411-11
|
| 36 | T36-04000010
| GASKET, THERMOSTAT
| 6E9-12414-A1
|
| 37 | T36-04000009
| COVER, THERMOSTAT
| 6E9-12413-00-1S
|
| 38 | GB/T9074.14-M6X30
| BOLT M6x30
| 0.00
|
| 39 | T36-04000008
| SPRING, PRESSURE VALVE
| 90501-14M02
|
| 40 | T36-04000007
| CORE, PRESSURE VALVE
| 663-12416-00
|
| 41 | T36-04000006
| SEAL, PRESSURE VALVE
| 90480-18065
|
| 42 | GB/T819.1-M6X25
| SCREW M6x25
| 0.00
|
| 43 | T40-05000012
| ANODE B, CRANKCASE
| 676-11325-00
|
| 44 | T36-04000025
| POTHOOK
| 6F5-11119-00
|
| 45 | GB/T9074.14-M8X35
| BOLT M8x35
| 90119-08M10
|
| 46 | GB/T5782-M6x65
| BOLT M6x65
| 0.00
|
| 47 | F8-02000012
| BOLT STUD M6x28
| 90116-06M17
|
| 48 | T15-04000013
| CLIP SPRING C
| 90467-06016
|
| 49 | GB/T818-M5x14
| SCREW M5x14
| 0.00
|
| 50 | GB/T93-5
| WASHER, SPRING 5
| 0.00
|
| 51 | T36-04030200
| COVER ASSY, INTAKE MANIFOLD
| 6F6-13643-01-1S
|
| 52 | T36-04030101
| GASKET, INTAKE VALVE
| 6F5-13621-A1
|
| 53 | T36-04030100
| INTAKE VALVE ASSY
| 6F5-13610-00
|
| 54 | T36-04030201
| GASKET, INTAKE MANIFOLD
| 6F5-13645-00
|
| 55 | T36-04030104
| VALVE CHECK ASSY
| 6F6-11370-01-00
|
| 56 | T85-05010400
| VALVE CHECK ASSY
| 650-11370-01
|
| 57 | T36-04030000
| SEAT ASSY, INTAKE MANIFOLD
| 6F6-13641-00-1S
|
| 58 | T36-04030102
| HOSE A 2.5x7x120
| 0.00
|
| 59 | T36-04000018
| GASKET, INTAKE MANIFOLD
| 6F5-13646-A2
|
| 60 | T36-04030103
| HOSE B 2.5x7x250
| 0.00
|
| 61 | T36-04030105
| HOSE C 2.5x7x370
| 0.00
|
| 62 | T40-05020009
| BALL BEARING
| 93306-307U0
|
| 63 | T36-04020102
| BLOCK, SWING A
| 6F5-11412-11
|
| 64 | T40-05020103
| THRUST WASHER
| 90209-27011
|
| 65 | T40-05020105
| CONNECTING ROD
| 6F5-11651-00
|
| 66 | T40-05020104
| NEEDLE BEARING
| 93310-727V7
|
| 67 | T36-04020106
| BLOCK, SWING B
| 6F5-11422-11
|
| 68 | T40-05020010
| ROLLER BEARING
| 93332-000UE
|
| 69 | T40-05020107
| CIRCLIP
| 93440-68M03
|
| 70 | T40-05020108
| SEAL, RETAINER
| 6F5-11515-00
|
| 71 | T36-04020110
| BLOCK, SWING C
| 6F5-11432-11
|
| 72 | T36-06020111
|
|
|
| 73 | T36-04020107
| PIN, CRANKSHAFT
| 6F5-11681-00
|
| 74 | T40-05020011
| BALL BEARING
| 93306-306V5
|
| 75 | T36-04020100
| CRANKSHAFT ROD ASSY
| 6F5-11400-10
|
| 76 | T40-05020007
| WASHER, PISTON
| 90201-20417
|
| 77 | T40-05020008
| NEEDLE BEARING 2.5x20.8
| 93603-21111
|
| 78 | T40-05020006
| CIRCLIP
| 688-11634-00
|
| 79 | T40-05020003
| PIN, PISTON
| 6F5-11633-00
|
| 80 | T36-04020200
| PISTON
| 0.00
|
| 81 | T36-04020201
| PISTON RING ASSY
| 6F6-11610-00
|
| 82 | T36-04000000
| ENGINE ASSY
| 0.00
|
| 83 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
