LOWER CASING & DRIVE II - 2 Strock for T40J
- Brand: Yamaha
- Product Code: LOWER CASING & DRIVE II - 2 Strock for T40J
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

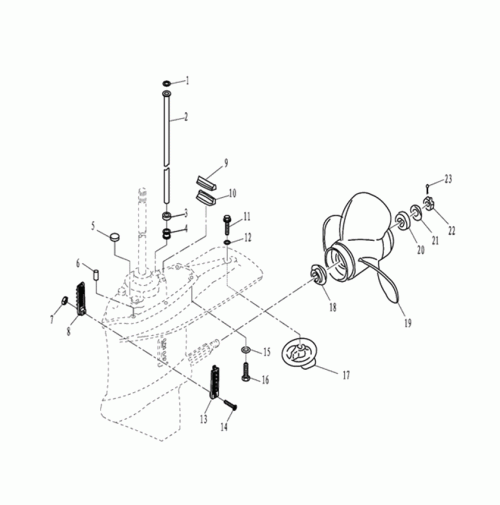

LOWER CASING & DRIVE II - 2 Strock for T40J
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | T40-02010003 | WASHER, WATER TUBE | 90202-12060 |
| 2 | T36-00010006L | WATER TUBE L | 676-44361-10 |
| T36-00010006S | WATER TUBE S | 676-44361-00 | |
| 3 | T40-02010005 | SEAL, WATER TUBE | 90430-12072 |
| 4 | T36-02000002 | BUSH, WATER TUBE | 663-44367-00 |
| 5 | T36-03000011 | JAM | 0.00 |
| 6 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 7 | GB/T889.1-M5 | LOCK NUT M5 | 90185-05002 |
| 8 | T36-03000015 | WATER INLET A | 688-45215-02 |
| 9 | T85-04000013 | WATER SEAL | 688-45375-00 |
| 10 | T40-04000013 | PLATE, WATER SEAL | 688-45376-00 |
| 11 | T36-03000025 | BOLT, COURSE TAB | 0.00 |
| 12 | GB/T93-10 | WASHER, SPRING 10 | 92995-10100 |
| 13 | T36-03000016 | WATER INLET B | 688-45214-02 |
| 14 | GB/T820-M5x32 | SCREW M5x32 | 0.00 |
| 15 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 16 | T36-00000013 | BOLT M8x30 | 90705-08030 |
| 17 | T36-03000020 | COURSE TAB | 679-45371-00 |
| 18 | T40-04000018 | SPACER, PROPELLER | 663-45987-02 |
| 19 | T40-04070000-13 | PROPELLER ASSY 3-11 1/8"x13" | 69W-45945-00 |
| T40-04070000-12 | PROPELLER ASSY 3-11 3/8"x12" | 69W-45952-00 | |
| T40-04070000-11 | PROPELLER ASSY 3-11 5/8"x11" | 69W-45947-00 | |
| 20 | T40-04000019 | BUSH A, PROPELLER | 66T-45997-00 |
| 21 | T40-04000020 | BUSH B, PROPELLER | 90389-22M01 |
| 22 | T40-04000021 | SLOTTED NUT | 90171-16011 |
| 23 | GB/T91-2.5x25 | COTTER PIN 2.5x25 | 0.00 |
