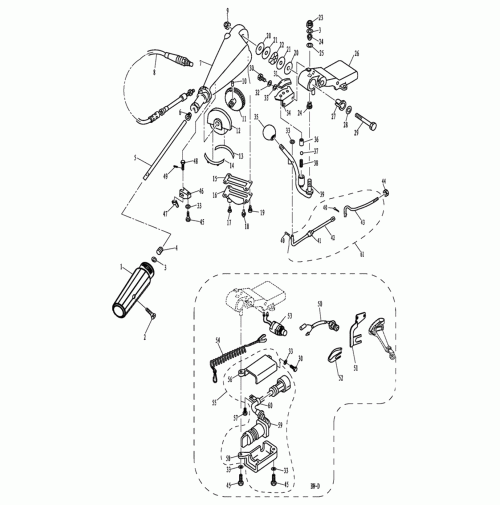

STEERING (MANUAL CONTROL) - 2 Strock for T60A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T15-01020300 | GRIP ASSY, TILLER HANDLE | 6F6-42177-A0
|
| 2 | GB/T820-M5x25 | SCREW M5x25 | 90152-05011
|
| 3 | GB/T848-10 | WASHER 10 | 90201-10M02
|
| 4 | F4-01090007 | SPRING | 90501-23215
|
| 5 | T60-01030101 | THROTTLE LEVER | 663-42115-00
|
| 6 | F4-01090006 | BUSH | 90386-08032
|
| 7 | T60-01030001 | TILLER HANDLE | 663-42111-02-8D
|
| 8 | T85-01030200 | THROTTLE CABLE ASSY | 692-26301-03
|
| 9 | GB/T889.2-M12x1.25 | LOCK NUT M12x1.25 | 0.00
|
| 10 | GB/T879.3-3x16 | PIN 3x16 | 0.00
|
| 11 | T85-01030102 | GEAR, THROTTLE | 663-42138-00
|
| 12 | T85-01030002 | HOUSING, THROTTLE LEVER | 692-42135-00
|
| 13 | T85-01030002-1 | WEDGE A, THROTTLE LEVER | 0.00
|
| 14 | T60-01030002 | WEDGE B, THROTTLE LEVER | 0.00
|
| 15 | T85-01030005 | GASKET, COVER | 663-42133-01
|
| 16 | T60-01030003 | COVER, THROTTLE | 663-42134-03-94
|
| 17 | GB/T818-M6x6 | SCREW M6x6 | 97885-06008
|
| 18 | JB/T9740.1-M6 | NIPPLE, GREASE M6 | 93700-06M03
|
| 19 | GB/T818-M5x12 | SCREW M5x12 | 97885-05012
|
| 20 | T85-01030015 | DAMPER, HANDLE | 90202-12092
|
21
| T85-01030016 | WASHER, HANDLE | 90201-12537
|
22
| T85-01030017 | WAVE WASHER | 90206-12054
|
23
| GB/T889.2-M10x1.25 | LOCK NUT M10x1.25 | 90185-10051
|
24
| T85-01030007 | NYLON BUSH, SHIFT HANDLE | 90386-10009
|
25
| F25-01010009 | WASHER, NYLON | 90201-12M34
|
26
| T85-01030301 | BRACKET, HANDLE | 692-42121-02-8D
|
27
| T85-01030013 | BUSH,NYLON | 90386-12089
|
28
| GB/T97.1-12 | WASHER 12 | 92990-12200
|
| 29 | T85-01030014 | BOLT M12x1.25x70 | 90101-12M06
|
| 30 | GB/T5783-M6x16 | BOLT M6x16 | 0.00
|
| 31 | T85-01030012 | INDICATOR, SHIFT | 6K5-44191-00
|
32
| GB/T93-6 | WASHER, SPRING 6 | 92995-06100
|
| 33 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
34
| T85-01030011A | CAM PLATE, SHIFT | 697-44113-02
|
35
| JB/T727.1-M10x32 | KNOB M10x32 | 0.00
|
36
| T85-01030010 | COLLAR, SHIFT ROD | 90387-12M30
|
| 37 | GB/T308-12 | STEEL BALL 12 | 0.00
|
38
| T85-01030009 | SPRING, SHIFT HANDLE | 90501-16M17
|
39
| T85-01030500 | SHIFT HANDLE ASSY | 692-44159-01
|
| 40 | GB/T91-2x12
| COTTER PIN 2x12
| 0.00
|
| 41 | T85-01030018
| JACKET, SHIFT ROD
| 90386-06088
|
| 42 | T60-01030202
| SHIFT ROD B
| 6H3-42191-01
|
| 43 | T60-01030201
| SHIFT ROD A
| 6H3-42192-00
|
| 44 | E4-06000009
| NUT
| 700-48339-00
|
| 45 | GB/T9074.14-M6X25
| BOLT M6x25
| 97095-06025-00
|
| 46 | T85-01030003
| FRICTION BLOCK
| 663-42126-01
|
| 47 | GB/T62-M6
| NUT M6
| 0.00
|
| 48 | T85-01030008
| BOLT M6x25
| 0.00
|
| 49 | F4-04120106
| SNAP RING
| 0.00
|
| 50 | T20-06000037W | INCHING SWITCH | 6H3-82540-01
|
51
| T60-00000008BW | PLATE, INCHING SWITCH | 6H3-82554-00
|
52
| T85-05000042BW | PLATE, INCHING SWITCH | 663-82555-01
|
53
| F15-13000400W | ENGINE STOP SWITCH ASSY | 688-82575-12
|
| T40-01020101 | ENGINE STOP SWITCH ASSY | 0.00
|
| 54 | F4-01090401 | STOPER, HANG ROPE ASSY | 682-82556-00
|
| 55 | T85-01010700BW | START SWITCH ASSY | 0.00
|
| 56 | T85-01010701BW | UPPER COVER, START SWITCH | 697-8252E-02-8D
|
| 57 | GB/T818-M6x10
| SCREW M6x10 | 97880-06012
|
| 58 | T85-01010702BW | LOWER COVER, START SWITCH | 697-8252F-02-8D
|
| 59 | T85-01010703BW
| START SWITCH
| 6H3-82510-21
|
| 60 | T85-01010705BW
| CLAMP B, WIRE
| 0.00
|
| 61 | T60-01030200
| SHIFT ROD ASSY
| 0.00
|
| 62 | T60-01030000
| TILLER HANDLE ASSY
| 0.00
|
| T60-01030000BW
| TILLER HANDLE ASSY
| 0.00
|
