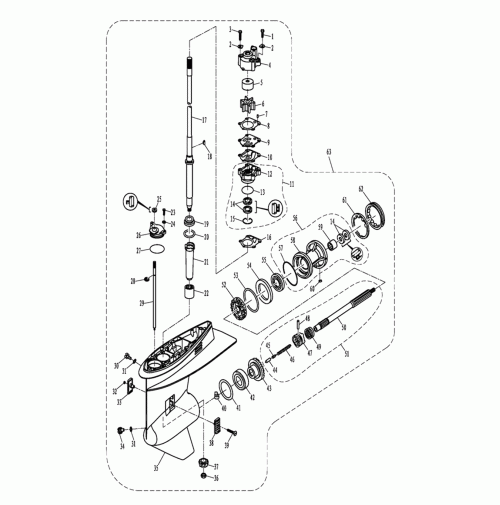

LOWER CASING & DRIVE 1 - 2 Strock for T60A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | GB/T5782-M8x50 | BOLT M8x50 | 0.00
|
| 2 | T40-04000012 | PLATE, WATER PUMP | 0.00
|
| 3 | GB/T5782-M8x70
| BOLT M8x70 | 0.00
|
| 4 | T85-04000401 | HOUSING, WATER PUMP | 688-44311-01
|
| 5 | T85-04000402 | INSERT COVER, WATER PUMP | 688-44322-41
|
| 6 | T85-04000300 | IMPELLER ASSY | 688-44352-02
|
| 7 | F25-04000007 | PIN 4x10 | 93604-10M03
|
| 8 | T85-04000017 | GASKET, OUTER PLATE | 688-44315-A0
|
| 9 | T85-04000016 | OUTER PLATE | 688-44323-40
|
| 10 | T85-04000015 | GASKET, OUTER PLATE | 688-44324-A0
|
| 11 | T85-04000200 | WATER PUMP BASE ASSY | 688-44341-01-94
|
| 12 | T85-04000201 | BASE, WATER PUMP | 6D8-44341-01-CA
|
| 13 | T85-04000204 | O-RING 46.7x3.1 | 93210-46044
|
| 14 | T85-04000202 | OIL SEAL 25x40x6 | 93101-25M03
|
| 15 | T85-04000203 | CIRCLIP, OIL SEAL | 93450-44166
|
| 16 | T85-04000014 | GASKET, WATER PUMP BASE | 688-44316-A0
|
| 17 | T60-04010100BM | DRIVE SHAFT ASSY 22" | 69D-45501-10
|
| T60-04010100FW | DRIVE SHAFT ASSY 20" | 0.00
|
18
| T85-04000018 | WOODRUFF KEY | 90280-04M04
|
| 19 | L44649H1-CAP
| ROLLER BEARING
| 93332-000U3
|
| 20 | T85-04000003-1
| SHIM T:0.12mm
| 688-45587-01
|
| T85-04000003-2
| SHIM T:0.30mm
| 688-45587-10
|
| T85-04000003-3
| SHIM T:0.40mm
| 688-45587-20
|
| T85-04000003-4
| SHIM T:0.50mm
| 688-45587-30
|
| T85-04000003-5
| SHIM T:0.30mm
| 688-45587-40
|
| T85-04000003-6
| SHIM T:0.40mm
| 688-45587-50
|
| T85-04000003-7
| SHIM T:0.50mm
| 688-45587-60
|
| 21 | T85-04000002
| BUSH, NYLON
| 688-45536-01
|
| 22 | NSK-1620
| NEEDLE BEARING 1620
| 0.00
|
| 23 | GB/T5783-M6x16
| BOLT M6x16
| 0.00
|
| 24 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 25 | T85-04000011
| OIL SEAL 9x19x5
| 93106-09014
|
| 26 | T85-04000009
| COVER, SHIFT CAM
| 688-45321-00
|
| 27 | JASO-F404-31-050
| O-RING 50x3.1
| 0.00
|
| 28 | GB/T896-8
| CIRCLIP 8
| 99001-08600
|
| 29 | T85-04000008
| SHIFT CAM SHAFT
| 663-43144-01
|
| 30 | F4-03000023
| SCREW PLUG
| 90340-08002
|
| 31 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 32 | GB/T889.1-M5
| LOCK NUT M5
| 90185-05002
|
| 33 | T85-04000023
| WATER INLET B
| 6H1-45215-00
|
| 34 | F25-04000031
| BOLT, DRAIN
| 688-45341-10
|
| 35 | T85-04000001
| LOWER CASING
| 688-45311-06-8D
|
| 36 | T85-04000006
| NUT, PINION
| 90170-16M01
|
| 37 | T60-04000002
| PINION
| 6K5-45551-00
|
| 38 | T85-04000022
| WATER INLET A
| 6H1-45214-00
|
| 39 | GB/T820-M5x45
| SCREW M5x45
| 90151-05M00
|
| 40 | T85-04000007
| SHIFT CAM
| 663-44151-00
|
| 41 | T85-04000004-1
| SHIM T:0.10mm
| 688-45567-01
|
| T85-04000004-2
| SHIM T:0.12mm
| 688-45567-10
|
| | T85-04000004-3
| SHIM T:0.20mm
| 688-45560-20
|
| T85-04000004-4
| SHIM T:0.30mm
| 688-45567-30
|
| T85-04000004-5
| SHIM T:0.40mm
| 688-45567-40
|
| T85-04000004-6
| SHIM T:0.50mm
| 688-45567-50
|
| T85-04000004-7
| SHIM T:0.50mm
| 688-45567-60
|
| 42 | KOYO-26882-N
| ROLLER BEARING
| 93332-000W7
|
| 43 | T60-04000100
| FORWARD GEAR ASSY
| 6K5-45560-00
|
| 44 | T60-04000008
| PLUNGER, SHIFT ROD
| 0.00
|
| 45 | T85-04000506
| SPACER, CLUTCH
| 688-45634-00
|
| 46 | T60-04000502
| SPRING, CLUTCH
| 90501-16233
|
| 47 | T60-04000501
| CLUTCH, DOG
| 0.00
|
| 48 | T85-04000504
| PIN, CLUTCH
| 90250-07M02
|
| 49 | T85-04000505
| RING, CLUTCH
| 688-45633-00
|
| 50 | T85-04000501
| SHAFT, PROPELLER
| 688-45611-00
|
| 51 | T85-04000500
| PROPELLER SHAFT ASSY
| 0.00
|
| 52 | T60-04000601
| GEAR, REVERSE
| 6H3-45571-00
|
| 53 | T85-04000606-1
| SHIM T:0.10mm
| 688-45577-01
|
| T85-04000606-2
| SHIM T:0.12mm
| 688-45577-10
|
| T85-04000606-3
| SHIM T:0.15mm
| 688-45577-20
|
| T85-04000606-4
| SHIM T:0.18mm
| 688-45577-30
|
| | T85-04000606-5
| SHIM T:0.30mm
| 688-45577-40
|
| T85-04000606-6
| SHIM T:0.40mm
| 688-45577-50
|
| T85-04000606-7
| SHIM T:0.50mm
| 688-45577-60
|
| 54 | T85-04000604
| SPACER, REVERSE GEAR
| 688-45576-00
|
| 55 | NTN-6207-15-C-3
| BEARING 6207
| 93316-207U0
|
| 56 | T60-04000600
| COVER ASSY, LOWER CASING
| 0.00
|
| 57 | T85-04000603
| O-RING
| 93210-85M97
|
| 58 | T85-04000601
| COVER, LOWER CASING
| 688-45331-00-CA
|
| 59 | HK-2526NS
| NEEDLE BEARING 2526
| 93317-325U0
|
| 60 | T85-04000027
| FIXED PLATE, COVER
| 90282-04010
|
| 61 | T85-04000020
| WASHER, LOCKED
| 688-45383-02
|
| 62 | T85-04000021
| CROWN NUT
| 688-45384-02
|
| 63 | T60-04000000BM
| LOWER CASING ASSY 22 BM
| 69D-45300-11-4D
|
| T60-04000000FW
| LOWER CASING ASSY 20 FW
| 0.00
|
| 64 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
