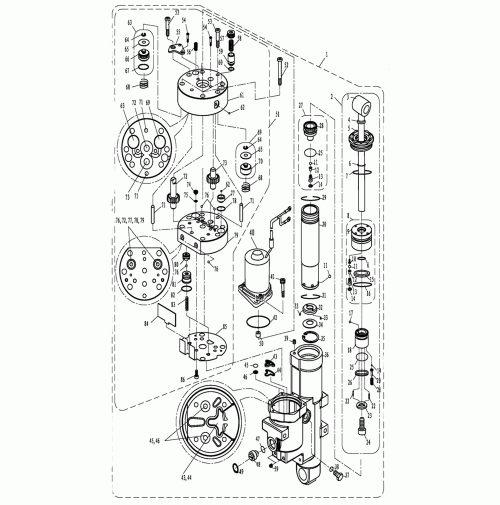

POWER TRIM TILT ASSY - 2 Strock for T60A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | F60-06000000 | POWER TRIM&TILT ASSY | 6C5-43800-12
|
| 2 | F60-06010000 | PISTON ASSY | 0.00
|
| 3 | F60-06010100 | PISTON SHAFT ASSY | 0.00
|
4
| F60-06010003 | OIL SEAL 17x25x5 | 0.00
|
| 5 | F60-06010002 | NUT | 0.00
|
6
| GB/T3452.1-16.8x2.65 | O-RING 16.8x2.65 | 0.00
|
| 7 | JISFG-46 | O-RING 45.5x2 | 0.00
|
| 8 | F60-06010200 | COVER ASSY | 0.00
|
9
| F60-06010201
| COVER, HYDRAULIC CYLINDER | 0.00 |
| 10 | GB/T70.1-M1.6x8
| BOLT M1.6x8 BLACK
| 0.00
|
| 11 | F60-06010204
| BEARING BALL 3/16
| 0.00
|
| 12 | GB/T876-3x3
| HOLLOW RIVET 3x3
| 0.00
|
| 13 | F60-06010203
| SPRING, CHECK VALVE
| 0.00
|
| 14 | T85-06010403
| THRUST WASHER
| 0.00
|
| 15 | JISB-2407-P40T2
| CLIP
| 0.00
|
| 16 | JISB-2401-P40
| O-RING 39.7x3.5
| 0.00
|
| 17 | T40-10000001
| BEARING BALL 1/8
| 0.00
|
| 18 | F60-06010004
| PISTON
| 0.00
|
| 19 | F60-06010006
| BEARING BALL 3/32
| 0.00
|
| 20 | F60-06010007
| BRACKET, STEEL BALL
| 0.00
|
| 21 | F60-06010008
| SPRING
| 0.00
|
| 22 | F60-06010009
| NEEDLE ROLLER 2x6.8
| 0.00
|
| 23 | F60-06010010
| WASHER, PLATE
| 0.00
|
| 24 | GB/T70.1-M10x1.25x40
| BOLT M10x1.25x40 BLACK
| 0.00
|
| 25 | JISB-2401-P24
| O-RING 23.7x3.5
| 0.00
|
| 26 | JISB-2407-P24T2
| CIRCLE P24T2
| 0.00
|
| 27 | F60-06000200
| FREE PISTON ASSY
| 0.00
|
| 28 | F60-06000201
| FREE PISTON
| 0.00
|
| 29 | F60-06000102
| SNAP RING 30
| 0.00
|
| 30 | F60-06000101
| CYLINDER, PISTON
| 0.00
|
| 31 | F60-06000011
| SNAP RING 32
| 0.00
|
| 32 | F60-06000002
| SEAT, HYDRAULIC CYLINDER
| 0.00
|
| 33 | F60-06000003
| SPRING
| 0.00
|
| 34 | F60-06000004
| WASHER
| 0.00
|
| 35 | GB/T893.1-32
| CIRCLIP 32
| 0.00
|
| 36 | F60-06000001
| HYDRAULIC HOUSING
| 0.00
|
| 37 | T85-06010009
| SCREW, DRAIN
| 6H1-43829-00
|
| 38 | GB/T3452.1-9x2.2
| O-RING 9x2.2
| 0.00
|
| 39 | T85-06010002
| BLOCK, CYLINDER 1/16
| 0.00
|
| 40 | F60-06030000
| TILT MOTOR
| 0.00
|
| 41 | GB/T70.1-M5x20
| BOLT M5x20 BLACK
| 0.00
|
| 42 | JASO-F404-31-065
| O-RING 64.4x3.1
| 0.00
|
| 43 | F60-06000008
| FILTER B
| 0.00
|
| 44 | F60-06000009
| WASHER,FIFTER B
| 0.00
|
| 45 | F60-06000007
| O-RING 7.6x1.5
| 0.00 |
| 46 | F60-06000006
| FIFTER A
| 0.00
|
| 47 | T85-06020015
| O-RING 17.5x2.65
| 0.00
|
| 48 | F60-06000005
| SCREW, MANUAL RELEASE
| 0.00
|
| 49 | GB/T893.1-20
| CIRCLIP 20
| 6H1-43875-00
|
| 50 | F60-06000010
| CONNECTOR, GEAR PUMP
| 0.00
|
| 51 | F60-06020000
| GEAR PUMP ASSY
| 0.00
|
| 52 | GB/T70.1-M5x45
| BOLT M5x45 BLACK
| 0.00
|
| 53 | GB/T70.1-M5x30
| BOLT M5x30 BLACK
| 0.00
|
| 54 | GB/T70.1-M3x25
| BOLT M3x25 BLACK
| 0.00
|
| 55 | F60-06020015
| VALVE PLATE
| 0.00
|
| 56 | F60-06020014
| SPRING
| 0.00
|
| 57 | F60-06020009
| SCREW, RELIEF VALVE
| 0.00
|
| 58 | F60-06020008
| SPRING
| 0.00
|
| 59 | F60-06020006
| BODY, RELIEF VALVE
| 0.00
|
| 60 | F60-06020007
| O-RING 4.5x1.5
| 0.00
|
| 61 | F60-06020001
| GEAR PUMP BODY
| 0.00
|
| 62 | GB/T308-3
|
|
|
| 63 | F60-06020100
| PISTON ASSY A, SHUTTLE
| 0.00
|
| 64 | GB/T896-3
| CIRCLIP 3
| 0.00
|
| 65 | F60-06020102
| WASHER
| 0.00
|
| 66 | F60-06020101
| PISTON A, SHUTTLE
| 0.00
|
| 67 | F60-06020103
| O-RING 8.6x1.5
| 0.00
|
| 68 | F60-06020004
| SPRING
| 0.00
|
| 69 | F60-06020200
| PISTON B ASSY, SHUTTLE ASSY
| 0.00
|
| 70 | F60-06020201
| PISTON B,SHUTTLE
| 0.00
|
| 71 | F60-06020005
| NEEDLE ROLLER 4x25.8
| 0.00
|
| 72 | F60-06020002
| GEAR A
| 0.00
|
| 73 | F60-06020003
| GEAR B
| 0.00
|
| 74 | T85-06010205
| BRACKET, VALVE
| 6H1-43844-10
|
| 75 | T85-06010204
| SEAL,VALVE
| 6H1-4384G-11
|
| 76 | T85-06020202
| BEARING BALL 4
| 0.00
|
| 77 | F60-06020013
| BASE, RELIEF VALVE
| 0.00
|
| 78 | F60-06020012
| O-RING 5.5×1.5
| 0.00
|
| 79 | F60-06020010
| COVER, GEAR PUMP
| 0.00
|
| 80 | F60-06020011
| SEAT, CHECK VALVE
| 0.00
|
| 81 | F60-06020017
| BODY, CHECK VALVE
| 0.00
|
| 82 | F60-06020018
| O-RING 7.5×1.5
| 0.00
|
| 83 | F60-06020019
| SPRING
| 0.00
|
| 84 | F60-06020020
| PLATE, MANUAL RELEASE
| 0.00
|
| 85 | F60-06020021
| SEAL PLATE, VALVE
| 0.00
|
| 86 | GB/T70.1-M3x5
| BOLTM3x5 BLACK
| 0.00
|
