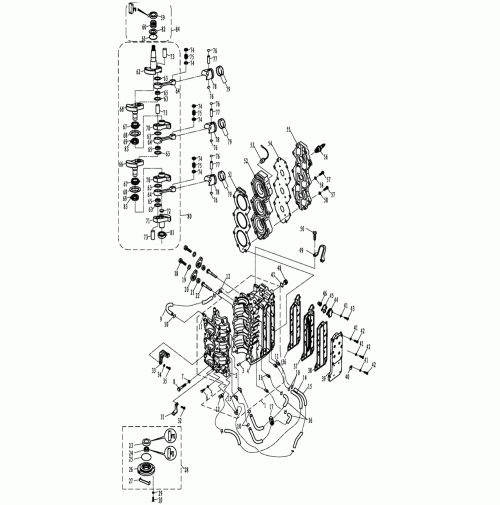

ENGINE ASSY (REPAIR KIT) - 2 Strock for T60A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T60-05010000 | CRANKCASE ASSY | 69D-15100-00
|
| 2 | T60-05010201 | CRANKCASE | 0.00
|
| 3 | F25-00000014 | PIN 8x12 | 99530-08012
|
4
| T60-05010100 | CYLINDER CASE | 0.00
|
| 5 | GB/T97.1-8 | WAHSER 8 | 92995-08100
|
6
| T60-05010001 | BOLT M8x40 | 0.00
|
| 7 | GB/T97.1-10 | WASHER 10 | 90201-10120
|
| 8 | T40-05000030 | BOLT M8x1.25x55 | 90119-10005
|
9
| T60-05000014
| HOSE A 2x7x255 | 0.00 |
| 10 | T15-04000013 | CLIP SPRING C | 90467-06016
|
| 11 | T15-04010202 | PIPE, JOINT | 624-14485-00
|
| 12 | T85-05010300 | VALVE CHECK ASSY | 688-11370-01
|
| 13 | T85-05010400
| VALVE CHECK ASSY | 650-11370-01
|
| 14 | T60-05000015 | HOSE B 2x7x445 | 0.00
|
| 15 | T60-05000016 | HOSE C 2.5x7x350 | 0.00
|
| 16 | T60-05000017 | HOSE D 2.5x7x170 | 0.00
|
| 17 | F25-05000016 | CLAMP, NYLON | 0.00
|
| 18 | GB/T5783-M6x16 | BOLT M6x16 | 0.00
|
| 19 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 20 | T60-05000009 | PLATE, ANODE | 6H3-11327-00-94
|
| 21 | T60-05000008 | SEAL, ANODE | 6H3-11328-00
|
| 22 | T60-05000007 | ANODE | 6H3-11325-01
|
| 23 | T85-05020403 | OIL SEAL 30x47x7 | 93102-30M05
|
| 24 | T60-05020202 | OIL SEAL 18x32x5 | 93106-18001
|
| 25 | T60-05020205 | O-RING 65.8x2.4 | 93210-65M50
|
| 26 | T60-05020201 | CASING, OIL SEAL | 6H3-15359-00-94
|
| 27 | T60-05020204 | SEAL, OIL SEAL CASING | 0.00
|
| 28 | T60-05020200 | OIL SEAL CASING ASSY | 0.00
|
| 29 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 30 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00
|
| 31 | T60-05000044 | FRAME, DETENT CABLE | 0.00
|
| 32 | GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73
|
| 33 | T60-05000043 | RIGHT BRACKET, STARTER | 0.00
|
| 34 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 35 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00
|
| 36 | T60-05000010 | GASKET, INNER COVER | 6H3-41112-A0
|
| 37 | T60-05000011 | INNER COVER, EXHAUST | 6H3-41111-01-1S
|
| 38 | T60-05000012 | GASKET, OUTER COVER | 6H3-41114-A0
|
| 39 | T60-05000013 | OUTER COVER, EXHAUST | 6H3-41113-02-1S
|
| 40 | T85-01030006 | CLAMP | 0.00
|
| 41 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 42 | GB/T9074.14-M6X35 | BOLT M6x35 | 0.00
|
| 43 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00
|
| 44 | F15-07010021 | COVER, THERMOSTAT | 6H3-12413-00-1S
|
| 45 | F15-07010022
| COVER, THERMOSTAT | 6H3-12414-A1 |
| 46 | T15-04000010 | THERMOSTAT | 688-12411-11
|
| 47 | T85-05000003 | GASKET, JAM | 90430-14115
|
| 48 | F15-04000002 | BOLT, DRAIN | 90340-14M00
|
| 49 | T60-05000019 | POTHOOK, ENGINE | 6K5-11119-01
|
| 50 | GB/T9074.14-M8X20 | BOLT M8x20 | 0.00
|
| 51 | T60-05000001 | GASKET, CYLINDER HEAD | 6H3-11181-A2
|
| 52 | T60-05000002 | CYLINDER COVER | 6H3-11111-01S
|
| 53 | T40-05000100 | THERMOSENSOR ASSY | 688-82560-10
|
| 54 | T60-05000003 | GASKET, CYLINDER COVER | 6H3-11193-A1
|
| 55 | T60-05000004 | OUTER COVER, CYLINDER | 6H3-11191-00-1S |
| 56 | BPR7HS | SPARK PLUG BPR7HS | 0.00
|
| 57 | T40-05000031 | BOLT M8x70 | 90119-08MA5
|
| 58 | GB/T97.1-8 | WAHSER 8 | 92995-08100
|
| 59 | T85-05020003
| OIL SEAL 36x46x6
| 93102-36M02
|
| 60 | T60-05020104 | NEEDLE BEARING | 93310-527W1
|
| 61 | T20-06020115 | O-RING 45x2.65 | 93210-46M16
|
| 62 | T60-05020101
| BLOCK, SWING A
| 6K5-11412-00
|
| 63 | T40-05020103 | THRUST WASHER | 90209-27011
|
| 64 | T60-05020105 | CONNECTING ROD | 6K5-11651-00
|
| 65 | T60-05020104 | NEEDLE BEARING | 93310-527W1
|
| 66 | T60-05020106 | BLOCK, SWING B | 6K5-11422-00
|
| 67 | T40-05020010 | ROLLER BEARING | 93332-000UE
|
| 68 | T40-05020107 | CIRCLIP | 93440-68M03
|
| 69 | T60-05020108 | SEAL, RETAINER | 6H3-11515-00
|
| 70 | T60-05020109 | BLOCK, SWING C | 6H3-11432-00
|
| 71 | T60-05020110 | BLOCK, SWING D | 6K5-11422-00
|
| 72 | T60-05020110-1 | JAM, SWING BLOCK | 0.00
|
| 73 | T60-05020102 | PIN, CRANKSHAFT | 6K5-11681-00
|
| 74 | T85-05020007 | WASHER, PISTON | 90201-20417
|
| 75 | T60-05020006 | NEEDLE BEARING 2.5x17.8 | 90603-18M09
|
| 76 | T40-05020006 | CIRCLIP | 688-11634-00
|
| 77 | T60-05020002 | PIN, PISTON | 6H3-11633-00
|
| 78 | T60-05020001 | PISTON | 6K5-11631-03-95
|
| 79 | T20-06020004-1 | PISTON RING | 6K5-11601-02
|
| 80 | T60-05020100 | CRANKSHAFT ROD ASSY | 69D-W1140-01
|
| 81 | T40-05020011 | BALL BEARING | 93306-306V5
|
| 82 | T60-05020007 | LOCATED PLATE, BEARING | 93440-49M04
|
| 83 | GB/T879.3-3X10 | PIN 3x10 | 0.00
|
| 84 | T60-05020400 | CRANKSHAFT BEARING ASSY | 93311-636U6
|
| 85 | T60-05000000 | ENGINE ASSY | 0.00
|
