INTAKE SYSTEM - 2 Strock for T75T85T90
- Brand: Yamaha
- Product Code: INTAKE SYSTEM - 2 Strock for T75T85T90
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

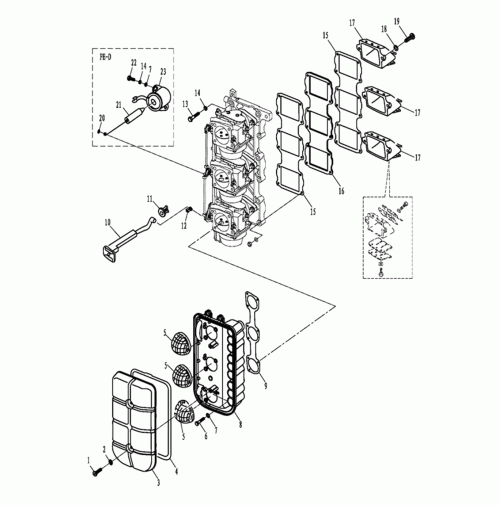

INTAKE SYSTEM - 2 Strock for T75T85T90
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | GB/T818-M6x16 | SCREW M6x16 | 90159-06M11 |
| 2 | GB/T86.1-6 | LOCKING WASHING 6 | 90209-06M05 |
| 3 | T85-05060009 | COVER, INTAKE SILENCER | 688-14418-01 |
| 4 | T85-05060008 | SEAL, INTAKE SILENCER | 688-14416-01 |
| 5 | T85-05060007 | FILTER, INTAKE SILENCER | 6988-14481-00 |
| 6 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 7 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 8 | T85-05060006 | SEAT, INTAKE SILENCER | 688-14417-01-94 |
| 9 | T85-05060005 | GASKET, INTAKE SILENCER | 688-14483-A0 |
| 10 | T85-03000200 | HANDLE, CHOKE | 692-41256-01 |
| 11 | F15-05010001 | BUSH, CHOKE | 689-41273-00 |
| 12 | F15-07000016 | JOINT, THROTTLE ACTUATOR | 661-41262-02 |
| 13 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
| 14 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 15 | T85-05060002 | GASKET, INTAKE VALVE | 688-13621-A1 |
| 16 | T85-05060003 | BUSH, INTAKE VALVE SEAT | 688-13624-00 |
| 17 | T85-05060100 | INTAKE VALVE ASSY | 688-13610-00 |
| 18 | GB/T93-5 | WASHER, SPRING 5 | 0.00 |
| 19 | GB/T818-M5x20 | SCREW M5x20 | 97880-05200 |
| 20 | F15-11030304W | O-RING | 0.00 |
| 21 | T85-05060500 | IRON CORE ASSY | 0.00 |
| 22 | GB/T818-M6x14 | SCREW M6x14 | 90159-06M19 |
| 23 | T85-05060400 | MAGNETIC COIL ASSY | 688-86110-01 |
