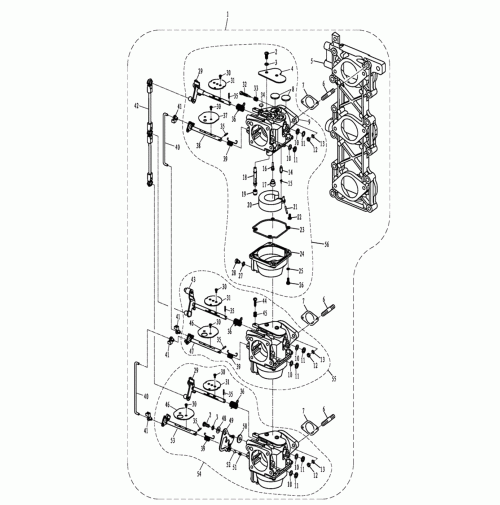

CARBURETOR ASSY - 2 Strock for T75T85T90
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
1
| T85-05160200 | CARBURETOR ASSY | 688-14301-00
|
| 2 | GB/T818-M5x10 | SCREW M5x10
| 97980-05310
|
| 3 | GB/T93-5 | WASHER, SPRING 5 | 0.00
|
4
| T85-05160204
| PLATE | 688-14572-01
|
5
| T85-05060001 | MANIFOLD, INTAKE | 688-13641-01-94
|
6
| T85-05060029 | BOLT STUD M6 | 0.00
|
7
| T85-05060004 | GASKET, CARBURETOR | 688-14198-A2
|
8
| T85-05160202 | GASKET, RUBBER A | 688-14126-00
|
9
| T85-05160201 | BODY, CARBURETOR | 0.00
|
10
| T85-05160212
| WASHER, SWING SHAFT
| 0.00
|
11
| T85-05160213
| WASHER, SWING SHAFT
| 0.00
|
12
| GB/T6170-M6
| NUT M6
| 95303-06600
|
13
| GB/T93-6
| WASHER, SPRING 6
| 92995-06100
|
14
| T85-05160219
| NEEDLE VALVE
| 692-14590-01
|
15
| T85-05160220
| SPRING, NEEDLE VALVE
| 0.00
|
16
| T85-05160224
| JET, AIR SLOW
| 676-14948-18
|
17
| T85-05160225
| RUBEER CAP
| 676-14966-00
|
18
| T85-05160223
| MIAN NOZZLE
| 688-14947-00
|
19
| T85-05160222
| JET, MAIN
| 676-14943-40
|
| 20 | T85-05160218
| FLOAT
| 676-14985-01
|
| 21 | T85-05160221
| PIN, FLOAT
| 688-14548-00
|
| 22 | GB/T818-M4x8
| SCREW M4x8
| 68580-04008
|
| 23 | T85-05160217
| GASKET, FLOAT CHAMBER
| 0.00
|
| 24 | T85-05160226
| FLOAT CHAMBER
| 0.00
|
| 25 | GB/T93-4
| WASHER,SPRING 4
| 0.00
|
| 26 | GB/T818-M4x14
| SCREW M4x14
| 97980-04114
|
| 27 | T85-05160228
| GASKET, DRAIN BOLT
| 93210-04230
|
| 28 | T85-05160227
| BOLT, DRAIN
| 6H3-14992-00
|
| 29 | T85-05160207
| SWING LINK A, THROTTLE
| 0.00
|
| 30 | GB/T818-M3x6
| SCREW M3x6
| 0.00
|
| 31 | T85-05160211
| DAMPER, THROTTLE
| 0.00
|
| 32 | T85-05160205
| SCREW, AIR ADJUSTING
| 0.00
|
| 33 | T85-05160206
| SPRING, AIR ADJUSTING
| 0.00
|
| 34 | T85-05160203
| GASKET, RUBBER B
| 663-14527-00
|
| 35 | GB/T879.2-2x10
| PIN 2x10
| 0.00
|
| 36 | T85-05160210
| SPRING, SWING LINK
| 0.00
|
| 37 | T85-05160216
| BAFFLE PLATE A, CHOKE
| 0.00
|
| 38 | T85-05160214
| SWING LINK A ASSY, CHOKE
| 0.00
|
| 39 | T85-05160215
| SPRING, CHOKE
| 0.00
|
40
| T85-05160234
| LINKER, CHOKE
| 688-41257-01
|
41
| F15-07000016
| JOINT, THROTTLE ACTUATOR
| 661-41262-02
|
42
| T85-05160231
| LINK, CARBURETOR
| 688-41217-01
|
43
| T85-05160230
| SWING LINK B, THROTTLE
| 0.00
|
44
| T85-05160232
| STOP SCREW, THROTTLE
| 0.00
|
45
| T85-05160233
| SPRING
| 0.00
|
46
| T85-05160242
| BAFFLE PLATE B, CHOKE
| 0.00
|
47
| T85-05160235
| SWING LINK B ASSY, CHOKE
| 0.00
|
48
| GB/T96-5
| BIG WASHER 5
| 0.00
|
49
| T85-05160238
| ROCKER, CHOKE
| 0.00
|
| 50 | T85-05160241
| WASHER, ROCKER ARM
| 0.00
|
| 51 | T85-05160240
| SPRING, STEEL BALL
| 0.00
|
| 52 | T85-05160239
| BALL, ROCKER ARM
| 0.00
|
| 53 | T85-05160237
| SWING LINK C ASSY, CHOKE
| 0.00
|
| 54 | T85-05160245
| CARBURETOR C
| 0.00
|
| 55 | T85-05160244
| CARBURETOR B
| 0.00
|
| 56 | T85-05160243
| CARBURETOR A
| 0.00
|
