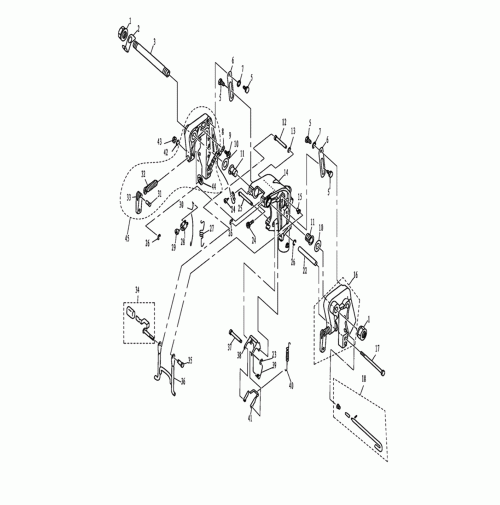

BRACKET 1 - 4 Strock for F9.9F15
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | F15-01010007
| NUT, SELF-LOCKING
| 90185-22043
|
| 2 | F15-01010003
| PLATE, TWO HOLE
| 6J8-43113-01
|
| 3 | F15-01010001
| DOUBLE-EDGED TUBE
| 63W-43131-10
|
| 5 | F15-01010103 | SCREW, FLAT HEXAGON | 90109-06M69
|
| 6 | F15-01010105
| PLATE, TILT STOPPER
| 63V-43181-00
|
| 7 | F15-01010104
| WAVE WASHER
| 90206-10M24
|
| 8 | F15-01010202
| EARTH WIRE A
| 6E5-82148-00
|
| 9 | GB/T818-M6x8
| SCREW M6x8
|
|
| 10 | F15-01010002 | WASHER, NYLON
| 90202-22M54
|
| 11 | F15-01010302
| BUSH, ROTARY BRACKET
| 90386-22M94
|
| 12 | F15-01010308
| BUSH, TILT LOCK
|
|
| 13 | F15-01010309
| WASHER, NYLON
|
|
| 14 | F15-01010301L
| BRACKET, ROTARY L
|
|
| F15-01010301S
| BRACKET, ROTARY S
| 63V-43311-03-4D
|
| 15 | F15-01010311
| BUSH, NYLON
|
|
| 16 | F15-01010100
| LEFT CLAMP BRACKET ASSY
|
|
| 17 | GB/T5782-M6x145
| BOLT M6x145
|
|
| 18 | F15-01010400
| LIMITATIVE ROD, TILT LOCK
| 689-43160-00
|
| 22 | F15-01010006 | TUBE, BOLT | 90387-06M13
|
| 23 | GB/T896-4
| CIRCLIP 4
|
|
| 24 | GB/T818-M8x10
| SCREW M8x10
|
|
| 25 | F15-01010316
| LOCK ANGLE L
| 63V-43659-00
|
| 26 | GB/T896-5
| CIRCLIP 5
| 99080-05600
|
| 27 | F15-01010304
| SPRING, TENSION
| 90507-20M00
|
| 28 | F15-01010306
| LEVER, TILT LOCK
| 63V-43641-00
|
29
| GB/T818-M5x6
| SCREW M5x6
| |
30
| F15-01010307A
| ROD, LOCKED BRACKET
|
|
31
| F4-01010005
| RIVET, CLAMP HANDLE
| 90243-04M01
|
32
| F25-01010104
| SCREW, CLAMP
| 90149-14M12
|
33
| F4-01010004
| HANDLE, CLAMP
| 69M-G3118-00
|
34
| F15-01010305
| TILT CLAMP HANDLE ASSY
| 63V-43630-00
|
35
| F15-01010312A
| SHAFT, STOPPER
|
|
36
| F15-01010313A
| SUPPORT BRACKET ASSY
|
|
37
| F15-01010317-3
| LOCK ANGLE S
| 63V-43611-00
|
38
| F15-01010317-2
| OUT BRACKET, TILT LOCK
| 63V-43615-00
|
| 39 | F15-01010315
| SPRING, TENSION
| |
| 40 | F15-01010314A
| SPRING, TENSION
| 63V-43656-00
|
| 41 | F15-01010317-1
| INNER BRACKET, TILT LOCK
| 63V-43614-00
|
| 42 | GB/T848-6
| WASHER 6
| 92990-06600
|
| 43 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 44 | F4-01010003
| CLAMP PLATE
| 6F5-43114-00
|
| 45 | F15-01010200
| RIGHT CLAMP BRACKET ASSY
|
|
