OIL PAN - 4 Strock for F9.9F15
- Brand: Yamaha
- Product Code: OIL PAN - 4 Strock for F9.9F15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

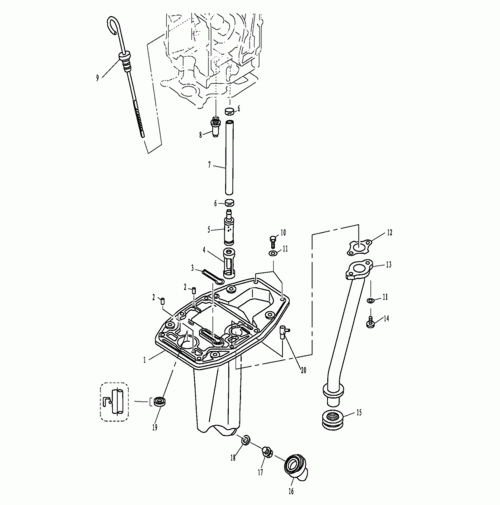

OIL PAN - 4 Strock for F9.9F15
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | F15-04000001 | OIL SUMP | |
| 2 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 3 | F15-04000007 | SEAL RING | |
| 4 | F15-07120105 | JACKET, OIL FILTER | 66M-13417-00 |
| 5 | F15-07120100 | WELD ASSY, OIL FILTER | 66M-13421-00 |
| 6 | S7140-14 | CLAMP A | |
| 7 | F15-07120001 | HOSE | 66M-13416-00 |
| 8 | F15-07110000 | RELIEF VALVE ASSY | |
| 9 | F15-00000100 | DIPSTICK ASSY | 66M-15362-00 |
| 10 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 11 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 12 | F15-04000006 | GASKET, EXHAUST PIPE | 66M-41133-01 |
| 13 | F15-04010000 | EXHAUST PIPE ASSY | 6D4-41131-00-94 |
| 14 | GB/T5783-M6x16 | BOLT M6x16 | |
| 15 | F15-04010004 | SEAL, EXHAUST PIPE | 6D4-41138-00 |
| 16 | F15-04000004 | JACKET, OIL DRAIN | 66M-15316-00 |
| 17 | F15-04000002 | BOLT, DRAIN | 90340-14M00 |
| 18 | F15-04000003 | GASKET, DRAIN BOLT | 90430-14M09 |
| 19 | F15-04000008 | OIL SEAL 13x25x6 | 93101-13018 |
| 20 | F15-04000005 | PIPE, JOINT | 676-11372-00 |
