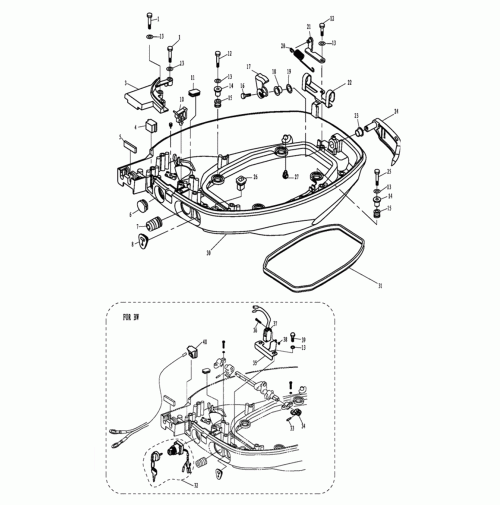

BOTTOM COWLING - 4 Strock for F9.9F15
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | GB/T9074.14-M6X30 | BOLT M6x30 |
|
3
| F15-05000018 | COVER, BOTTOM COWLING |
|
4
| F25-03000013
| JAM, RUBBER |
|
5
| F15-05000017 | SEAL, SQUARE | 65W-42727-00
|
6
| F25-03000003 | CIRCULAR PLUG |
|
7
| F15-05000006
| JACKET, BELLOWS |
|
8
| F15-01000015 | JACKET, THROTTLE CABLE |
|
10
| F15-05000008
| SQUARE CLAMP A | 90465-25M57
|
11
| F15-05000003 | RUBBER PLUG, QUADRATE |
|
| 12 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00
|
13
| GB/T97.1-6 | WASHER 6 | 92995-06600
|
14
| F15-05000005 | BUSH, DAMPER | 90387-06M52
|
15
| F15-05000004 | DAMPER | 90480-15M31
|
16
| GB/T5783-M6x12 | BOLT M6x12
| 90119-06M73
|
17
| F15-05030000 | LOCKING HOOK ASSY | 6D4-42816-00
|
18
| F15-05000036 | BUSH B |
|
19
| F15-05000023 | WAVE WASHER | 90206-12052
|
| 20 | F15-05000026 | SPRING, LOCKED BLOCK | 90506-18010
|
| 21 | F15-05000025 | BRACKET ASSY, TENSIONAL SPRING |
|
| 22 | F15-05000024
| CLIP, WATER HOSE
| |
| 23 | F15-05000022
| BUSH A
| 90386-12MA2
|
| 24 | F15-05020000
| LOCKING HANDLE ASSY
|
|
| 25 | GB/T9074.14-M6X35
| BOLT M6x35
|
|
| 26 | F15-05000033
| JACKET, LEVER
| 682-42727-00
|
| 27 | F15-05000009
| PIPE, JOINT
| 6E5-44391-00
|
| 30 | F15-05000001
| BOTTOM COWLING
|
|
| 31 | F15-05000002
| DAMPER, BOTTOM COWLING
|
|
| 32 | F15-05000100BW
| START SWITCH ASSY
|
|
| 33 | GB/T879.2-3x20
| PIN 3x20
|
|
| 34 | F25-03030005W
| ROCKER C, STARTER
| |
| 35 | F15-05000300BW
| PLATE, INCHING SWITCH
|
|
| 36 | GB/T818-M3x14
| SCREW M3x14
|
|
| 37 | F15-13000800W
| INCHING SWITCH
| 703-82540-00
|
| 38 | GB/T6170-M3
| NUT M3
| 95380-03600
|
| 39 | GB/T5783-M6x16
| BOLT M6x16
|
|
| 40 | F15-03000013W | JAM, RUBBER |
|
