INLINE SERIES BLOWERS - 5500105012X - Ocean Technologies
- Brand: OTC
- Product Code: 5500105012X
- Availability: In Stock
- $261.26
- Ex Tax: $261.26
Available Options
INLINE SERIES BLOWERS- Ocean Technologies
* A modern range of inline blowers utilizing advanced fan blade design technologies suitable for bulkhead mounting and for receiving 178 mm. diameter hoses.
* The first vane axial-flow bilge blowers designed using aerospace technology to maximize performance.
* No other bilge blowers on the market provides such a powerful system output at such a low power input in so a compact size.
* Silent operation.
* For added durability, Matromarine incorporated an engineered plastic housing that withstands deformation during installation and shelters blade from housing interference.
* with ISO 8846,EN 55014.
• Compact and simple design
• Flexible installation
• Low power consumption
• Quiet operation
• Mets Iso 8846 en55014 standards
• Five blade design maximizes flow and performace
• Long motor lifetime from powerful airflow cooling.
| PART. N. | MODEL | VOLT | AMP | CAPACITY
MCH/CFM | USAGE | PORT
CONNECTION | DIMENSION
LARGEXLENGHTXHEIGHT |

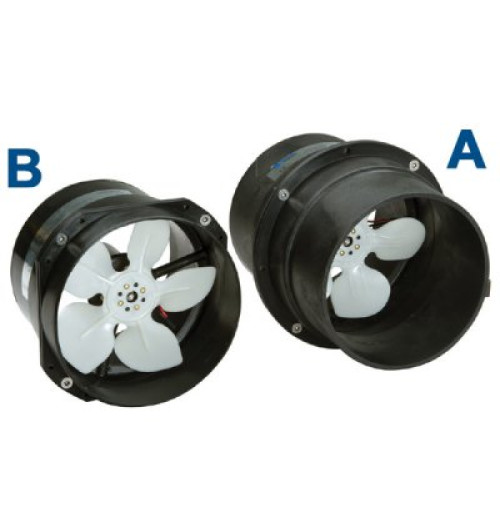

| 5500105012 | FLANGE 7” VERSION A | 12 | 5 | 750 / 441 | INTERMITTENT | 178 MM | 250 x 220 HOSE:178 mm |
| 5500105024 | FLANGE 7” VERSION A | 24 | 2.50 | 750 / 441 | INTERMITTENT | 178 MM | 250 x 220 HOSE:178 mm |
| 5500105512 | FLANGE 7” VERSION B | 12 | 5 | 750 / 441 | INTERMITTENT | 178 MM | 165 x 220 HOSE:178 mm |
| 5500105524 | FLANGE 7” VERSION B | 24 | 2.50 | 750 / 441 | INTERMITTENT | 178 MM | 165 x 220 HOSE:178 mm |
| 5500115012 | FLANGE 7” VERSION A | 12 | 7 | 1000 / 589 | CONTINUOUS DUTY | 178 MM | 250 x 220 HOSE:178 mm |
| 5500115024 | FLANGE 7” VERSION A | 24 | 3.5 | 1000 / 589 | CONTINUOUS DUTY | 178 MM | 250 x 220 HOSE:178 mm |
| 5500115512 | FLANGE 7” VERSION B | 12 | 7 | 1000 / 589 | CONTINUOUS DUTY | 178 MM | 165 x 220 HOSE:178 mm |
| 5500115524 | FLANGE 7” VERSION B | 24 | 3.5 | 1000 / 589 | CONTINUOUS DUTY | 178 MM | 165 x 220 HOSE:178 mm |
