The Ultimate Stereo Pack MS-RA205USP - Fusion

Qty

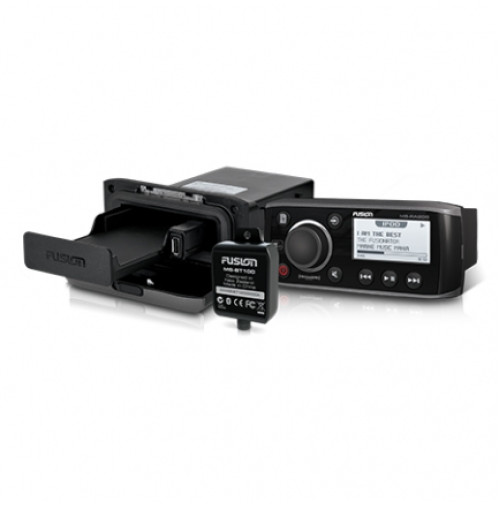

The FUSION Ultimate Stereo Pack is a one-purchase solution that brings convenience, control and performance-packed

entertainment together. Equipped with the ultra-compact award-winning FUSION MS-RA205 stereo, the MS-UNIDOCK Universal

Media Device Dock, MS-BT100 Bluetooth device and a DIN sized mounting plate. The Ultimate Stereo Pack offers unparalled

connectivity and undeniable quality.

When utilising a NMEA 2000 Network the MS-RA205 connects to any supported Multi-Function Display via advanced FUSION-Link

technology to provide audio source and zone audio control, for absolute convenience on the water. The stereo pack delivers

FUSION’s signature sound quality and integration features in a space-saving, cost-effective bundle.   

Like all FUSION marine systems, the Ultimate Stereo Package includes a three-year warranty.

Sources – AM / FM / VHF / USB / iPod / iPhone / MTP / Bluetooth / AUX / SiriusXM-Ready (USA Only)**

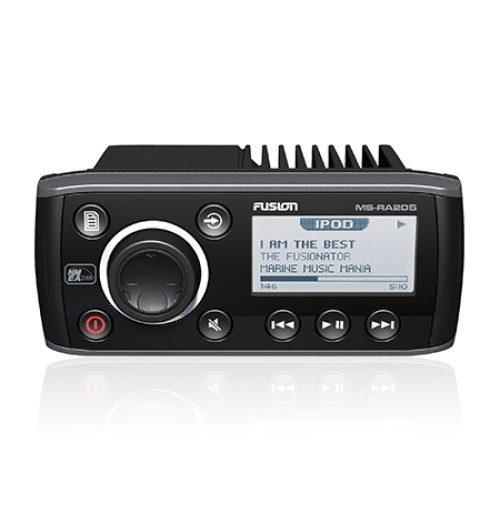

MS-RA205 Marine Stereo

Shallow Mount Chassis for easy installation

FUSION-Link™ NMEA 2000 Control

Multi-Zone™ Technology with 2 individual Audio Zones

Intuitive iPod / iPhone and MTP Audio Control

Daylight Viewable LCD

IPx5 Water Resistant Front Face

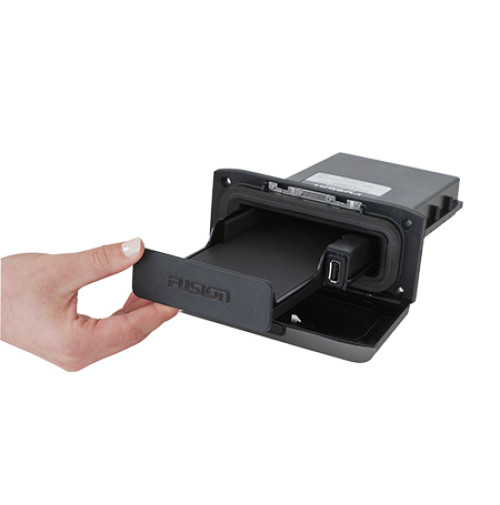

MS-UNIDOCK Universal Media Device Dock

Protect, Charge and Play the largest array of media devices securely and away from the harsh marine environment.

Supports Apple 30 Pin, Apple Lighting and select Android and Windows devices via micro USB (See Supported Devices)

IPx5 Water Resistant

2 Mtr (6-1/2 ft) Connection lead

Maximum Device Size 141mm (5-9/16") Length x 71mm (2-3/4") Width x 13mm (1/2") Height

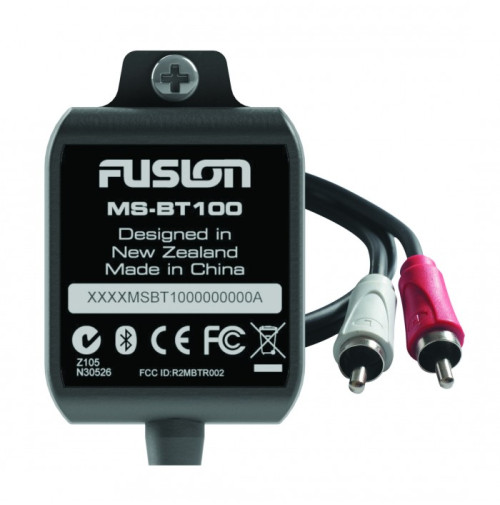

MS-BT100 – Bluetooth Audio Streaming

With MS-BT100 capability, the MS-RA205 can stream audio files from A2DP bluetooth-compatible media players and control

playback on the paired mobile device. Providing the ability to enjoy your favorite audio tracks within range, around your

vessel.

Quick mount options for easy line of site installation

Fully Sealed IP65 Enclosure

10 Mtr 33ft Effective range

MS-RA200MP - DIN Plate for easy installation

The Pack’s DIN sized mounting plate ensures seamless replacement of standardized DIN stereos to the FUSION MS-RA205.

**SiriusXM-Ready (USA only) requires optional SiriusXM module SVX200 and a SiriusXM subscription

Fusion Electronics
Auxiliary in	Yes
Display	Dot matrix LCD
Fusion Link	NMEA 2000 Connectivity Only
Line Out	1 x stereo, 1 x subwoofer
Media	AM / FM Tuner, VHF Receiver, USB, AUX, SiriusXM-Ready (USA only)
Mounting Depth	41mm (1-5/8")
Mounting Diameter	130mm (5-1/8")
Power	50 Watts x 4 (max)
