NaviLED Trio with Anchor Lamp - 2LT980650001 - Hella Marine

Qty

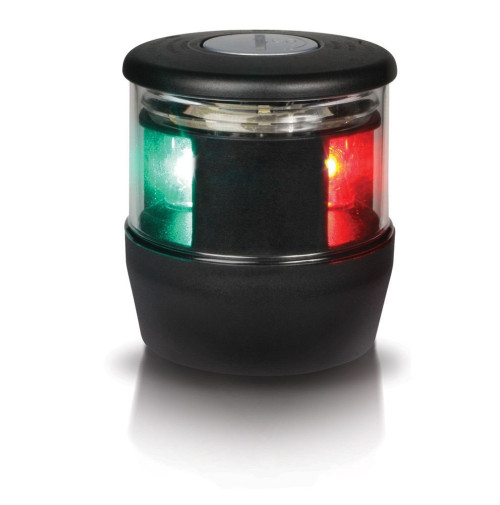

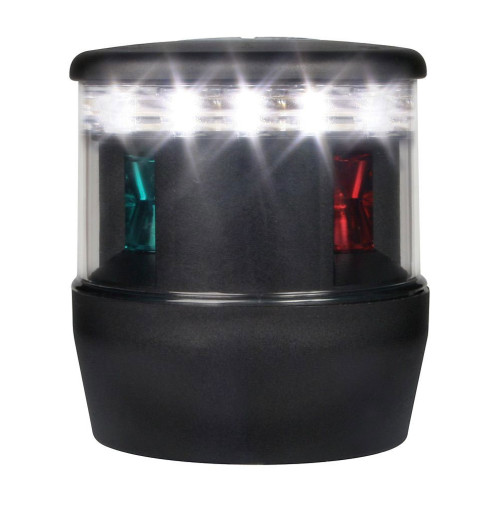

2 NM NaviLED TRIO Tri Colour Navigation Lamp

Series: NaviLED Trio

LED Tri Color with Anchor navigation lamp.

Advanced materials and state of the art technology for reliability, efficiency and safety at sea.

Ultra low current draw. Power saving on board.

Port, Starboard and Stern draws less than 3.5W

Fully sealed for life. IP 67 Certified.

Completely sealed, impervious to saltwater and contaminants.

Safe and highly visible.

Hella marine lens and optics technology ensures ultra precise horizontal and vertical cut-off angles, clearly indicating

a vessel’s movement and heading.

Ultra durable materials. Ultra long service life.

Advanced heavy duty Grilamid® lens and housing, plus proven Hella marine LED technology combines to provide outstanding

resistance to vibration, impact and shock loads. Relentless test programs have helped lift product reliability to new

standards for ongoing performance and safety in the most demanding conditions.

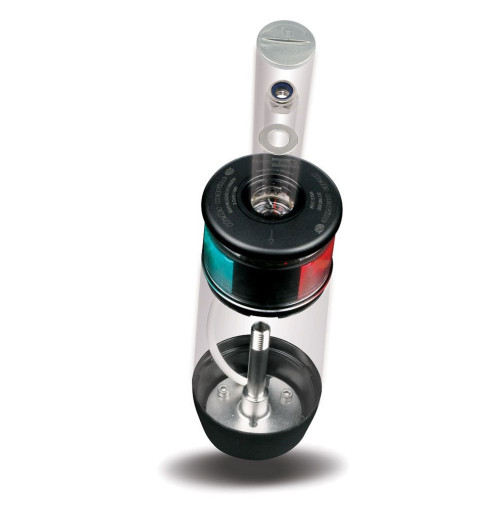

Unique installation and removal system.

The NaviLED®Trio installs on a unique 316 stainless steel mounting shaft for a secure attachment and reliable electrical

connections.

NaviLED TRIO Line Drawing

Hella Marine
Approvals	BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ
Cable	Pre-wired with 400mm of triple core marine cable
Degree of Protection	IP 67 - Completely Sealed
Lens Material	UV resistant, ultra heavy duty Grilamid lens
Material Description	UV resistant, high impact nylon
Minimum Visible Distance	2 Nautical Miles (Yacht)
Mounting Shaft	316 stainless steel
Operating Voltage	Multivolt 9-33V DC (early version 8-28V DC)
Power Consumption	Port, Starboard and Stern - Less than 3.5W combined All Round White / Anchor - Less than 1.5W
Voltage Protection	Spike protected to +500 volts Reverse polarity protected to -700 volts
Weight (including cable)	400g
