Signaling Device - Dp1 - Dive Alert

Signaling Device Dp1 - Dive Alert    :

How it Works

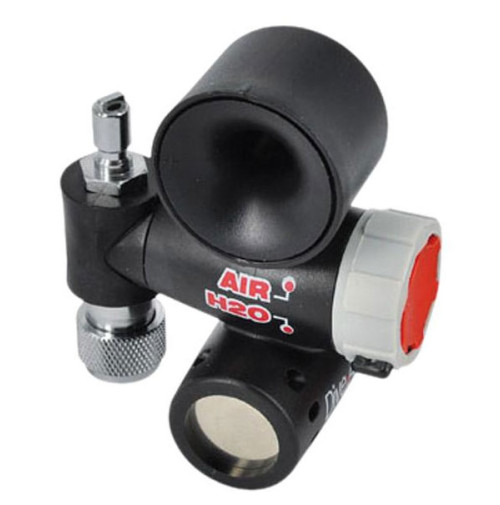

DiveAlert Plus is a specially designed, small, light weight pneumatic signaling device that uses quick-connect/disconnect hose fittings to become an integrated part of your power inflator.

Installation is easy and takes only a moment.

DiveAlert Plus does not require any modification of your other equipment, and it does not interfere in any way with the normal operation of your other equipment.

When you need to get someone’s attention on the water’s surface, you simply select “AIR” operation with your divert-er valve, press the button and Dive-Alert Plus uses a small amount of air from your SCUBA tank to make a piercingly loud sound.

Or, when you want to get someone’s attention under the water’s surface, you simply select “H2O” operation with your divert-er valve, press the button and DiveAlert Plus uses a small amount of air from your SCUBA tank to make a percussion noise to alert your dive buddy.

Installation - DiveAlert Plus connects between the power inflator and the low-pressure hose by means of its quick-connect/disconnect hose fittings.

Operation – Operation is as simple as selecting the desired function with the diverter valve and pressing the activator button. To select surface signaling, move the diverter valve so the pointer lines up with the “AIR” graphic. To select subsurface / underwater signaling, move the diverter valve so the pointer lines up with the “H2O” graphic.

Just make sure that before every dive you check that DiveAlert Plus is installed correctly and functioning properly. Also be careful not to point DiveAlert Plus toward yourself or toward anyone who is in close proximity to you when you activate the surface signal or loss of hearing could result.

Maintenance – After each use, DiveAlert Plus should be rinsed with fresh water. This is especially important after use in chlorinated swimming pools and in other water having corrosive substances. Additionally, it is highly recommended that you blow the water out of DiveAlert Plus before storing. This can be done by pressurizing and activating both the surface and subsurface signaling elements. We recommend that you cup your hand over the surface signaling element to muffle the loud noise.

Specifications

Body and Internal Elements: Injection

Molded Thermoplastic

Diaphragms: Stainless Steel

Couplings: Chrome Plated Brass
