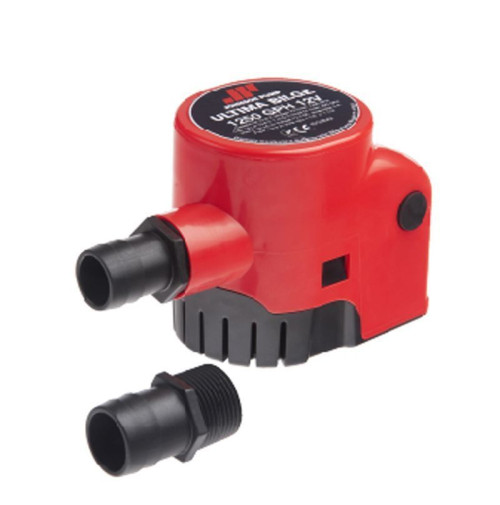

Ultima Bilge 1250 GPH 12V With Integrated Switch - 32-47261-005 - Johnson Pump

Ultima Bilge 1250 GPH 12V With Integrated Switch - 32-47261-005:

Ultima Bilge™ Pumps are the latest addition to the Johnson Pump lineup.

Integration of the patented Ultima “field effect” sensing technology into the bilge pump body creates a sleek, reliable compact, unit ready to install and run for years and years of unerring service.

Available in 600-800-1000-1250 GPH versions.

Voltage: 12 V

For UltimaBilge™ 600GPH-100GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps.

These pumps will be delivered including both a straight and a 90° smooth elbow Dura-Port.

For UltimaBilge™ 1250GPH we include threaded 1-1/4" & 1-1/8" discharge port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.

* Dimensions: L=142 mm, W=82 mm, H=117 mm

* Weight: 0.66 kg

Technical Features:

* Compact, all-in-one unit

* Integrated Ultima Switch sensing right into the pump body

* No Mercury

* Removable clip on basket design

* Removable impeller cover allows for easy clean out

* 3-wire device can be run in auto or manual override mode

* No tools needed for maintenance

* Extremely energy efficient

* Water-cooled motor for long service intervals

* Meets the international standard, ISO 8849 marine

Design features:

* Pump body: ABS

* Shaft seal: Lip seal

* Shaft: Stainless steel (SS2343)

* Voltage: 12 V DC

* Hose sizes: 1.1/8"and 1.1/4"

Order No. :

* 32-47261-005 1250 GPH, 79 L/min, 12V
