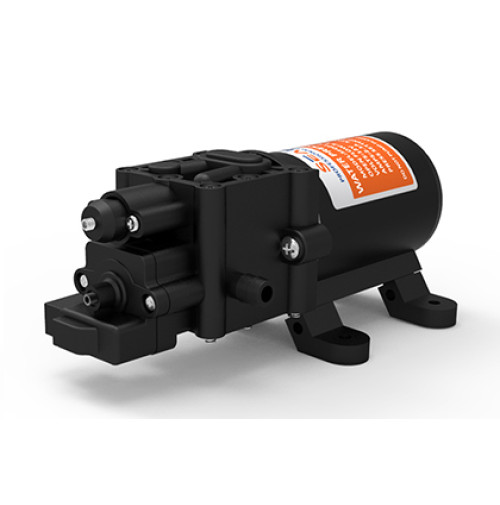

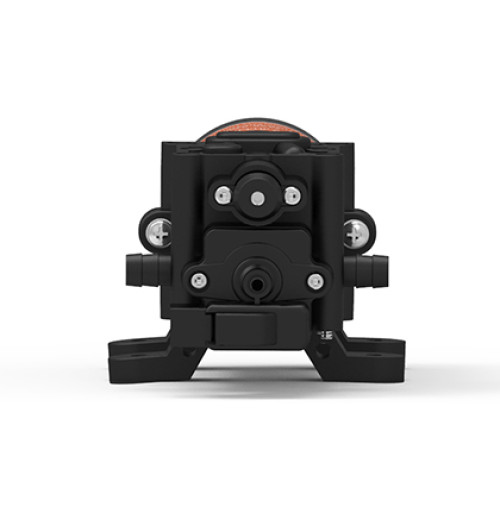

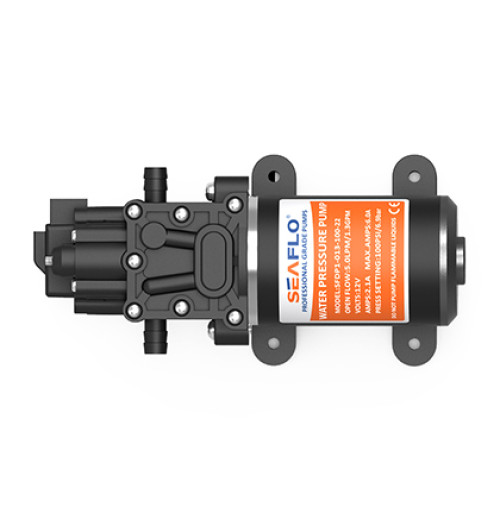

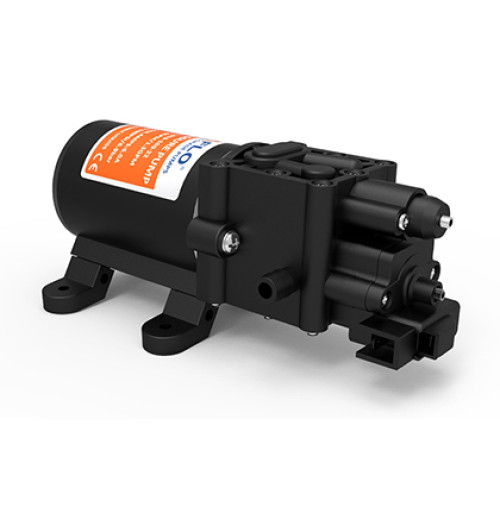

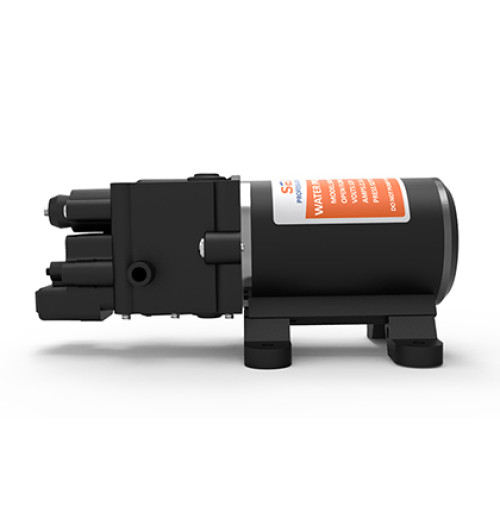

Diaphragm Pump 22 Series - 100 PSI - 5.0 LPM - DP1-013-100-22X - Seaflo
- Brand: Seaflo
- Product Code: SFDP1-013-100-22X
- Availability: In Stock
- $59.46
- Ex Tax: $59.46
Available Options
Qty
Diaphragm Pump 22 Series - 100 PSI - 5.0 LPM - DP1-013-100-22X:

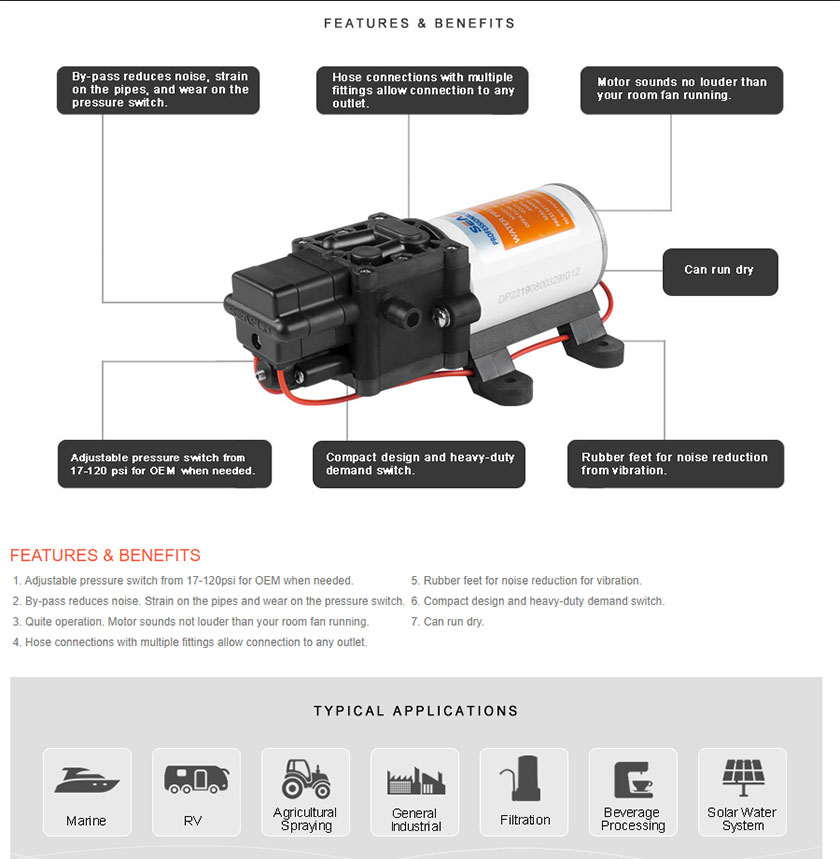

Features & Benefits:
Positive displacement pump
Can run dry
Quiet operation
Available demand and bypass
Industry-standard mount pattern
Typical Applications:
Marine/RV
Water Treatment/Ro
Beverage/Food Service
Distillation Equipment
Agricultural Spraying
General Industrial
Automotive

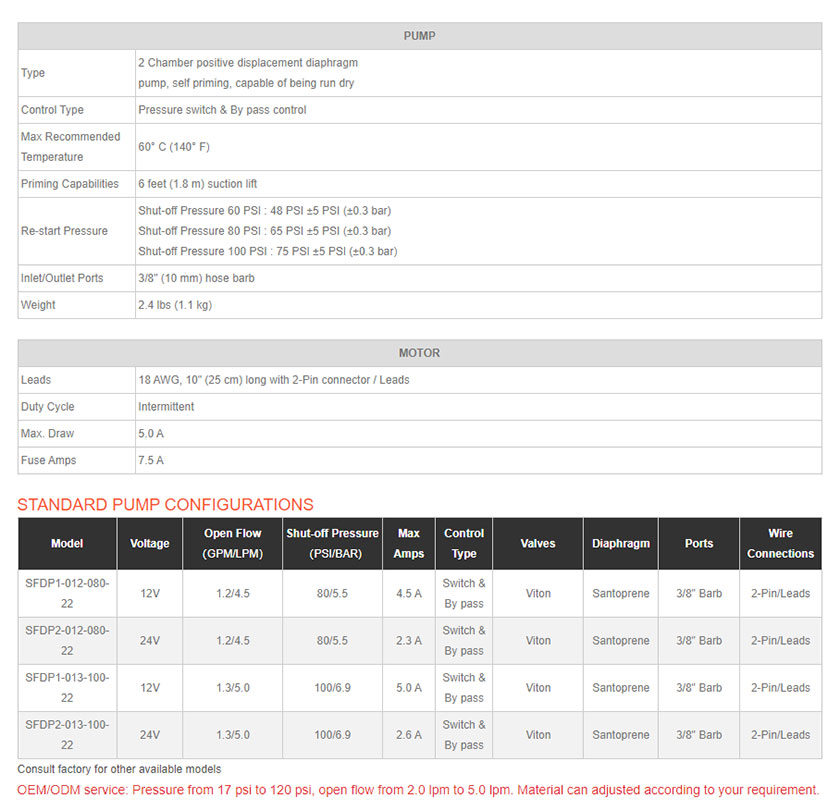

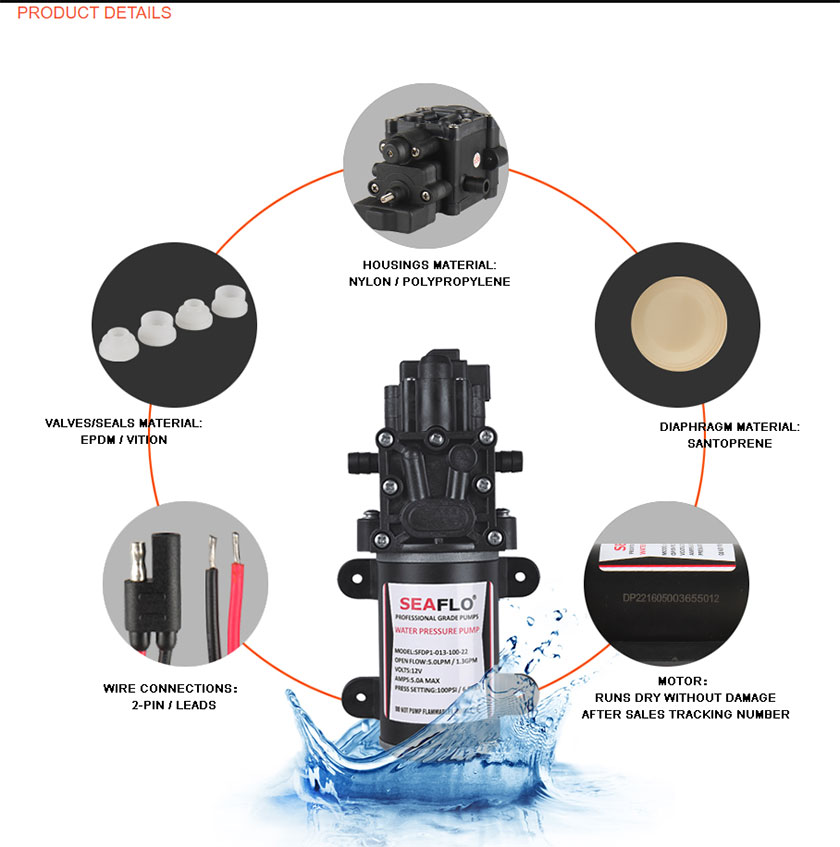

| Model | Voltage | GPM/LPM | Switch | Amps | PSI/BAR | Valves | Diaphragm | Ports | Wire Connections | |
| SFDP1-013-100-22 | 12V | 1.3/5.0 | Demand | 6.0 MAX | 100/6.9 |

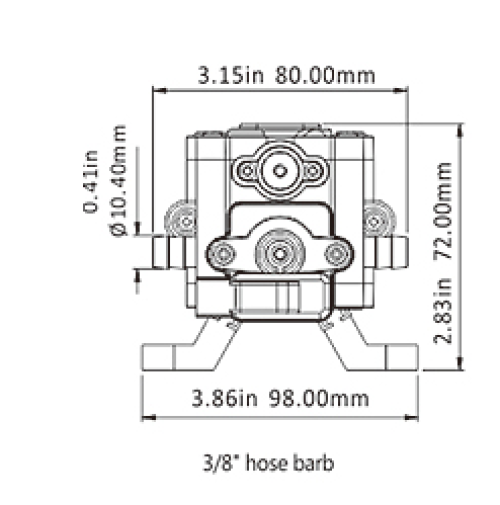

| Santoprene | 3/8"Barb | 2-Pin/Leads | |
| SFDP2-013-100-22 | 24V | 1.3/5.0 | Demand | 3.0 MAX | 100/6.9 | EPDM | Santoprene |
| 2-Pin/Leads |
CAUTION
Please make sure correct wiring, otherwise, it will damage the pump
(The red cable should be connected with the positive pole, and the black cable should be connected to the negative pole).
