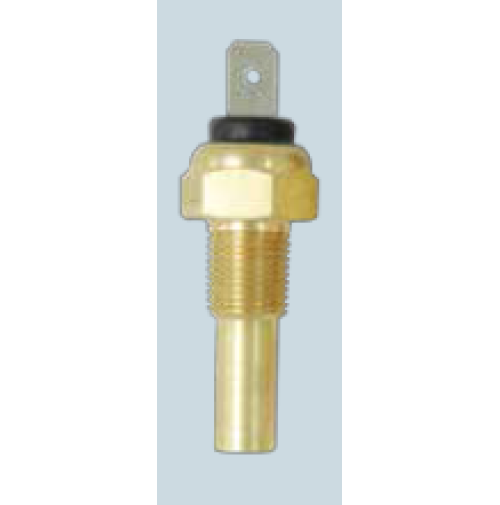

Water Temperature sensor - SWN-1 - KE00007 - Kusauto
- Brand: KUSAUTO
- Product Code: KE00007X
- Availability: In Stock
- $21.62
- Ex Tax: $21.62
Available Options
Water Temperature sensor - SWN-1:
♦ Widely used in vehicles, marine engines,Generator set, and more
♦ Has temperature detection and alarm function
♦ Compatible with many other major gauge brands. This allows the customers to easily exchange parts
♦ Various product specifications for options,
♦ Customized according to customer requirements.
♦ Material: brass
♦ Rated voltage: 6V~24V
♦ Temperature response time: Minimum 3 minutes after the power supply is electrified.
♦ Rated power for alarm switch: 1.2W~3W
♦ The temperature alarm tolerance: ±3℃
♦ Type of alarm touch: The switch turns off when the temperature rises.
♦ Protection rank: IP67

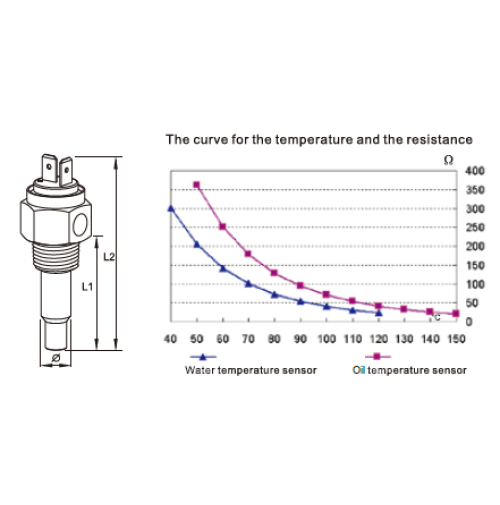

| Code | Product Name | Temperature Max(℃) | Alarm Temp.(℃) | Thread Spec. | Ømm | L1(mm) | L2(mm) | Type |
| KE00007 | SWN-1 | 120 | —— | 3/8"-18NPT | 7.5 | 28.5 | 51 | I |
| KE00006 | SWN-1 | 120 | —— | 1/8"-27NPT | 7.5 | 28.5 | 51 | I |
Tags: Sensor, High, Simple, Chemical, Resistance, Water, Temperature,
