OIL TEMPERATURE SENSOR - SON-1 - KE01002 - Kusauto

Qty

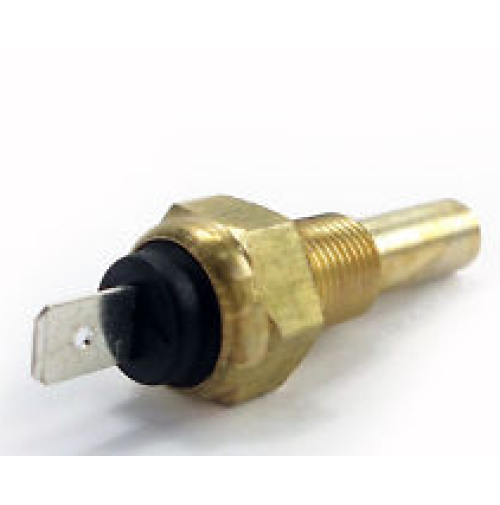

OIL TEMPERATURE SENSOR - SON-1:

♦ Widely used in vehicles, marine engines,Generator sets,and more

♦ Has temperature detection and alarm function

♦ Compatible with many other major gauge brands. This allows the customers to easily exchange parts

♦ Various product specifications for options,

♦ Customized according to customer requirements.

♦ Material: brass

♦ Rated voltage: 6V~24V

♦ Temperature response time: Minimum 3 minutes after the power supply is electrified.

♦ Rated power for alarm switch: 1.2W~3W

♦ The temperature alarm tolerance: ±3℃

♦ Type of alarm touch: The switch turns off when the temperature rises.

♦ Protection rank: IP67

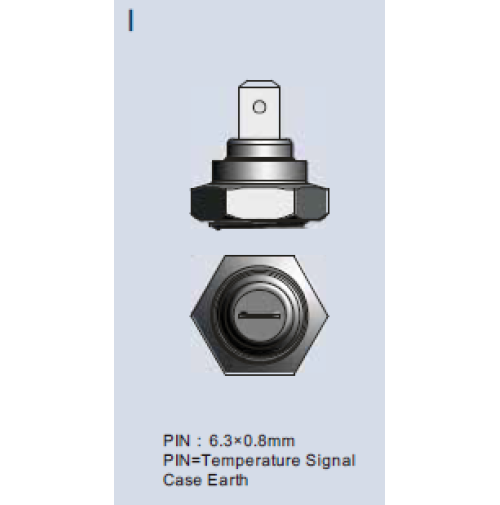

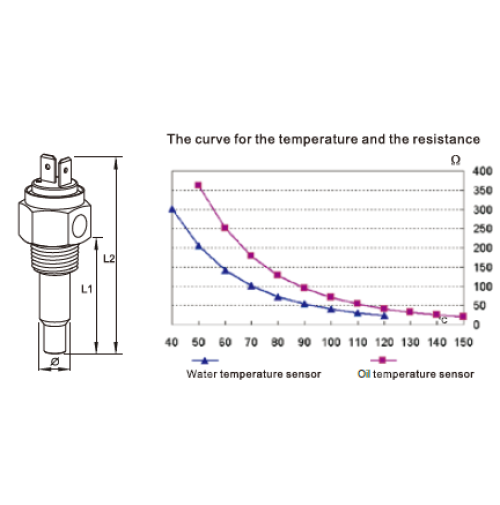

Code	Product Name	Temperature Max(℃)	Alarm Temp.(℃)	Thread Spec.	L1(mm)	L2(mm)	Type
KE01002	SON-1	150	——	M14×1.5	28.5	51	I
