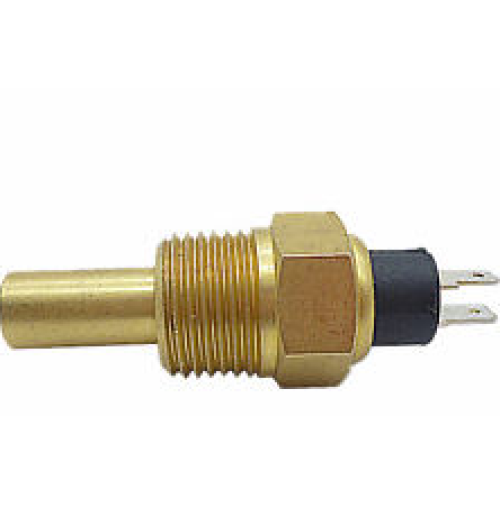

OIL TEMPERATURE SENSOR - SON-2 - KE01017 - Kusauto

Qty

OIL TEMPERATURE SENSOR - SON-2:

♦ Widely used in vehicle, marine engine,Generator set,and more

♦ Has temperature detection and alarm function

♦ Compatible with many other major gauge brands. This allows the customers to easily exchange parts

♦ Various product specifications for options,

♦ Customized according to customer requirement.

♦ Material: brass

♦ Rated voltage: 6V~24V

♦ Temperature response time: Minimum 3 minutes after power supply electrified.

♦ Rated power for alarm switch: 1.2W~3W

♦ The temperature alarm tolerance: ±3℃

♦ Type of alarm touch: The switch turns off when the temperature rises.

♦ Protection rank: IP67

Code	Product Name	Temperature Max(℃)	Alarm Temp.(℃)	Thread Spec.	L1(mm)	L2(mm)	Type
KE01017	SON-2	150	——	3/8"-18NPT	28.5	58.7	II
