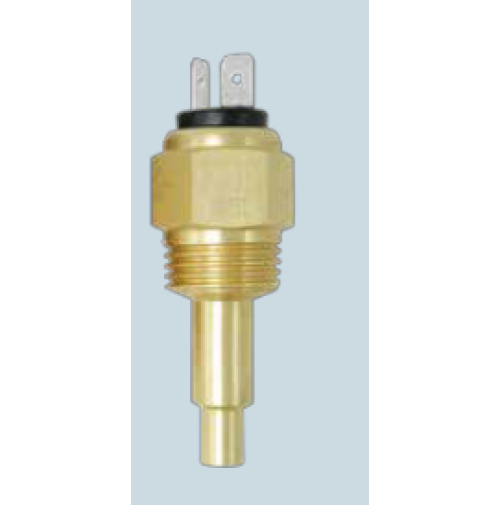

OIL TEMPERATURE SENSOR - SOA-3 - KE01108X - Kusauto
- Brand: KUSAUTO
- Product Code: KE01108X
- Availability: In Stock
- $29.73
- Ex Tax: $29.73
Available Options
OIL TEMPERATURE SENSOR - SOA-3:
♦ Widely used in vehicle, marine engine,Generator set,and more
♦ Has temperature detection and alarm function
♦ Compatible with many other major gauge brands. This allows the customers to easily exchange parts
♦ Various product specifications for options,
♦ Customized according to customer requirement.
♦ Material: brass
♦ Rated voltage: 6V~24V
♦ Temperature response time: Minimum 3 minutes after power supply electrified.
♦ Rated power for alarm switch: 1.2W~3W
♦ The temperature alarm tolerance: ±3℃
♦ Type of alarm touch: The switch turns off when the temperature rises.
♦ Protection rank: IP67

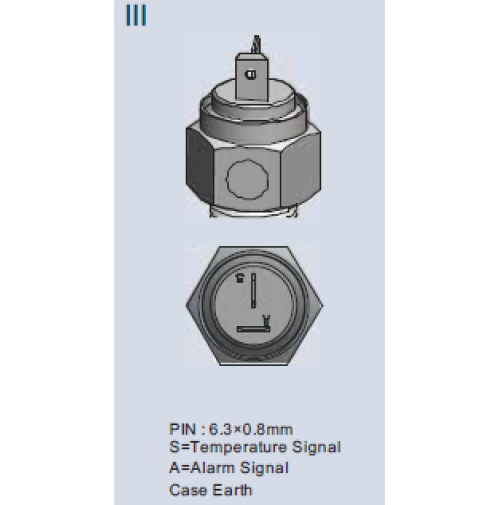

| Code | Product Name | Temperature Max(℃) | Alarm Temp.(℃) | Thread Spec. | L1(mm) | L2(mm) | Type |
| KE01108 | SOA-3 | 150 | 120 | 1/2"-14NPT | 41 | 71.5 | III |
| KE01101 | SOA-3 | 150 | 120 | 3/8"-18NPT | 41 | 71.5 | III |
Tags: Sensor, High, Simple, Chemical, Resistance, OIL, Temperature,
