Piranha P3 MK11 - Suitable for boats up to 7m, 25ft - 12 Volts - 1600 Lumen - P3-SM-B101 - Bluefin Led
- Brand: Bluefin Led
- Product Code: P3-SM-B101X
- Availability: In Stock
- $280.27 $329.73
- Ex Tax: $280.27
Available Options
Piranha P3:
Suitable for boats up to 7m, 25ft
Overview:

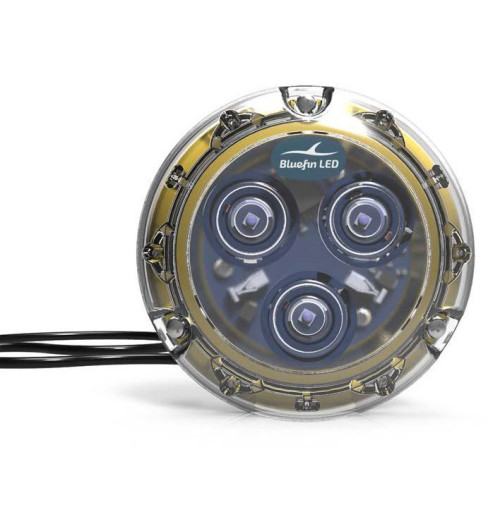

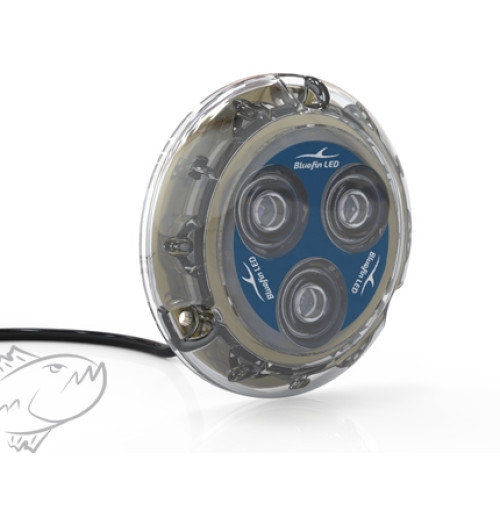

Surface Mounted LED Underwater Boat Light.
> The Piranha P3 Underwater LED light is small yet ferociously powerful producing a class-leading 1,600 fixture lumens.
> Compact & low profile design makes the Piranha P3 the perfect choice for all types of boats and is suitable for transom and side mounting on all hull types.
> Incredibly simple to install just one small cable entry hole and 3 mounting screws.
> RINA Type Approved
SPECIFICATIONS:
> Suitable transom or side hull mounting
> Surface mount, requires 13mm cable entry hole
> Recommended for boats up to 7m/25ft
> Max Lamp Lumens 2,100 / Fixture Lumens 1,600
> Typical LED life expectancy 50,000 + hours
> Voltage 12v, Power Draw 1.2 Amps
> Over voltage,current,reverse polarity,active thermal protection
> Fixture profile 17.6mm
> Fixture diameter 95mm
> IP69K Rated
> Lens: optical grade high impact polymer,60 degree beam angle
> 2 years warranty
> Swimming pool option available
> Made In England
What in the box:
> In-line fuse holder
> rated fuse
> Gel connector
> Inline Crimps
> Heat
> shrink
> Fixing Screws
> Template
> installation instructions
INSTALLATION MANUAL
| Accessories options | |
| BL-Switch | Panel mount illuminated switch & wiring loom |
| I.Y.S Lighting Control | Control via MFD screen or mobile device |
| Junction Box | 4 Way IP68 Wiring Junction Box |
| Specifications | |
| Attatched cable length | 1.8 meter |
| Available Colours | Diamond White 6500k // Cobalt Blue // Sapphire Blue |
| Beam Angle | 60 Degree |
| Driver Type | Integral |
| Fixture Diameter | 95mm |
| Fixture Lumens | 1600 |
| Fixture Material | AB2 Bronze (standard) or Aluminium |
| Fixture Profile | 17.6mm |
| Hole cut out size | 13 mm |
| Included in box | In-line fuse holder & rated fuse, Gel connector, Inline Crimps, Heat shrink, Fixing Screws, Template, and installation instructions |
| Lens Type | 3mm Optical grade high impact polymer, Guard X Coating |
| Max Wattage | 20 watts |
| Maximum Lamp Lumens | 2100 |
| Mounting Type | Surface |
| Power Draw | 1.2 amps |
| Protection | Over / Under Voltage, Over Current, Reverse Polarity protection, // Active thermal protection. Hydro block technology |
| Spacing | 1.2 - 2mtr |
| Suitable Use | Below the water-line only |
| Total weight | 400 gm |
| Type Approval | RINA IEC 60529 |
| Typical Life Expectancy | 50,000 hours |
| Voltage range: | 12v |
| Warranty | 2 Years |
Tags: Marine Lights, Waterproof, Protection, Round, Piranha, Underwater, LED,
