Piranha P6 NITRO MK11 - Suitable for boats up to 14m, 45ft - 12/24 Volts - 3600 lumen - P6N-SM-B114X - Bluefin Led
- Brand: Bluefin Led
- Product Code: P6N-SM-B114X
- Availability: In Stock
- $408.15 $480.18
- Ex Tax: $408.15
Available Options
Piranha P6 NITRO:
Suitable for boats up to 14m, 45ft
Overview:

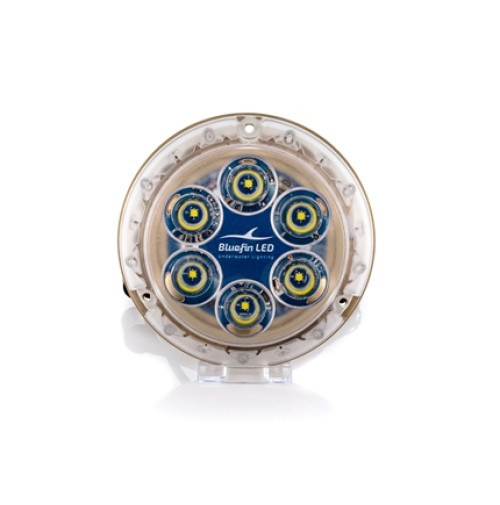

Surface Mounted LED Underwater Boat Light.
> The Piranha P6 Nitro Underwater Light produces 3,600 fixture lumens,
> Compact low profile design is perfect for all boat types, suitable for transom and side mounting on all hull types.
> Switch on for normal power, for Nitro power turn off then back on and the brightness is boosted by 35%
> Dual Colour option produces 3700 Lumens when White and Cobalt Blue LED`S are illuminated or 70% output if only Blue LED`S are illuminated
> Incredibly simple to install just one small cable entry hole and 3 mounting screws. Reverse polarity protection with in-built driver technology and active thermal rollback.
> Suitable for in and out of water use.
> RINA Type Approved
> P6 is available in 12V or 24V options, Dual-color P6 is 12V only
SPECIFACTION:
> Suitable transom or side hull mounting

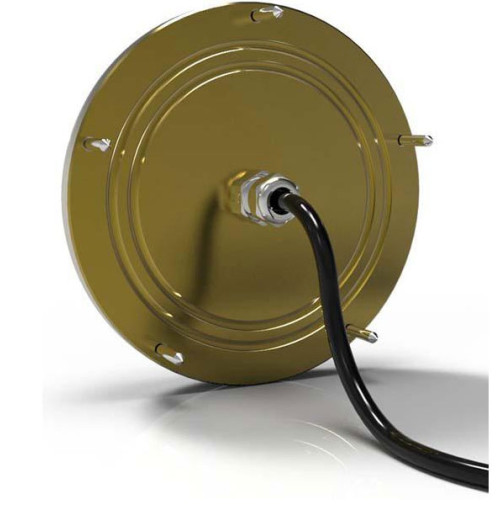

> Surface mount, requires 13mm cable entry hole
> Recommended for boats up to 14m/45ft
> Max Lamp Lumens 4,600 / Fixture Lumens 3,700 (with Nitro Boost)
> Typical LED life expectancy 50,000 + hours
> Voltage 12V 3.5 Amps, 24V 1.8 Amps
> Over voltage,current,reverse polarity,active thermal protection
> Fixture profile 17.6mm
> Fixture diameter 110mm
> Lens: optical grade high impact polymer,60 degree beam angle
> IP69K Rated
> 2 years warranty
> Swimming pool option available
> Made in England
What is in the box:
> In-line fuse holder
> rated fuse
> Gel connector
> Inline Crimps
> Heat shrink
> Fixing Screws
> Template
> installation instructions
Installation Manual
| Accessories options | |
| 220/110v Power Supply | Power supply 24v for up to 5 lights |
| BL-Switch | Panel mount illuminated switch & wiring loom |
| I.Y.S Lighting Control | Control via MFD screen or mobile device |
| Junction Box | 4 Way IP68 Wiring Junction Box |
| Specifications | |

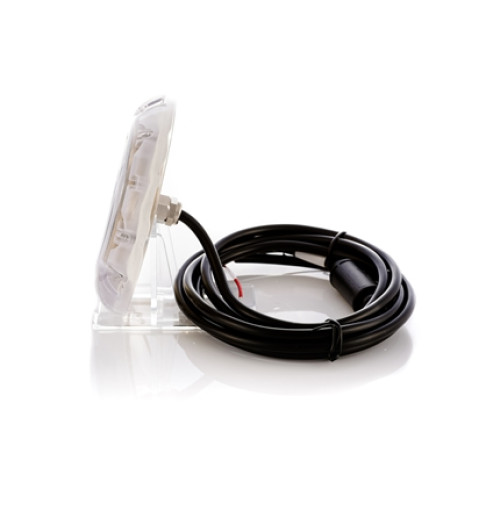

| Attatched cable length | 1.8-meter Over-moulded |
| Available Colours | Diamond White 6500k // Cobalt Blue // Sapphire Blue // Dual Colour White/Blue |
| Beam Angle | 60 Degree |
| Driver Type | Integral |
| Fixture Diameter | 110mm |
| Fixture Lumens | 3600 |
| Fixture Material | AB2 Bronze (standard) or Aluminium |
| Fixture Profile | 17.6mm |
| Hole cut out size | 15mm |
| Included in box | In-line fuse holder & rated fuse, Gel connector, Inline Crimps, Heat shrink, Fixing Screws, Template, and installation instructions |
| Lens Type | 3mm Optical grade high impact polymer, Guard X Coating |
| Max Wattage | 40 watts |
| Maximum Lamp Lumens | 4500 |
| Mounting Type | Surface |
| Power Draw | 3.5 amps @ 12v / 1.8 amps @ 24v |
| Protection | Over / Under Voltage, Over Current, Reverse Polarity protection, Active thermal protection. Hydro block technology. |
| Spacing | 1.2 - 2mtr |
| Suitable Use | Above & below the water-line |
| Total weight | 500 gm |
| Type Approval | RINA IEC 60529 |
| Typical Life Expectancy | 50,000 Hours |
| Voltage range: | 12v or 24v (Dual Colour 12v only) |
| Warranty | 2 Year |
Tags: Marine Lights, Waterproof, Protection, Round, Piranha, Underwater, LED, NITRO,
