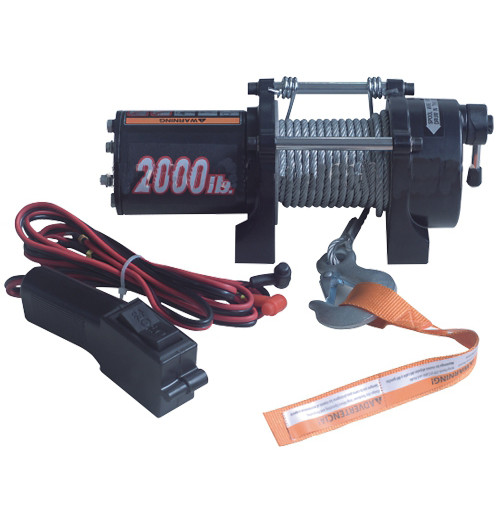

Electric Winch - 2000 lb (907 kg) Capacity - 12/24 V DC - BA-DW2000-12/24VX - ASM

Electric Winch - 2000 lb (907 kg) Capacity - 12/24 V DC - BA-DW2000-12VX:

Country of Origin:

• China(Mainland)

Primary Competitive Advantages:

• OEM Capability

• Production Capacity

• Reliability and Reputation

• Price and Service

Main Export Markets:

• North America

• Oceania

• Central/South l America

• Europe

• Asia

• Mid East/Africa

Key Specifications/Features:

• 12 v DC 1.1 hp(0.8 kw) Permanent magnet motor

• Power load in and Power out

• Differential planetary gear system

• Automatic braking system

• Cam action clutch for free-spooling

• Hand saver hook and pulley hook included

• Circuit breaker protected

• Sealed handlebar remote

• Mounting plate and 4-way Roller fairlead

(optional accessories)

• Rated line pull: 2000 lb.(907 kg); Single-line and First layer performance

• Gear ratio: 253:1

• Wire rope(Dia.xL): 0.19”x 32’ (4.8mmx10m)

• Drum size(Dia.xL): 1.5”x 3.15” (38x80mm)

• Overall dimensions(LXWXH): 12.1"x 4.0"x 4.3"(308mmx102mmx110mm)

Logistic Information:

• Packing pattern: 1pc per polyfoam inner box, 2 pcs per master carton

• Packing Dimension: 36.5x26.5x34.5 cm

• G.W./N.W.: 19/18 kg
