Ignition Switch for Sierra Marine - MP41040 - JSP

Ignition Switch for Sierra Marine - MP41040:

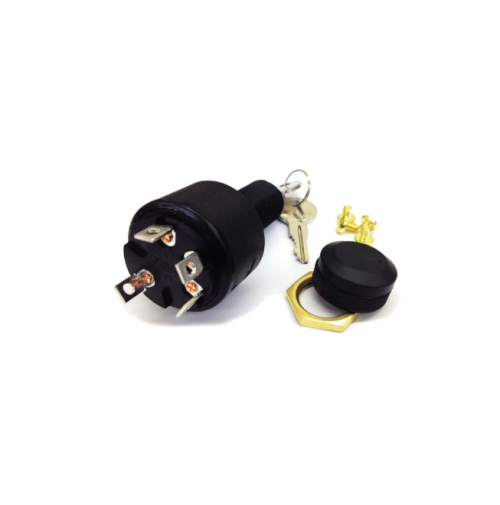

Sierra Marine MP41040 Ignition Switch.

Features:

Switch Positions: Acc - Off - Run - Start

TYPE: Conventional

Maximum corrosion protection - eliminates oxidation

Inner seal between cylinder lock and contact plate

Non-conductive housing eliminates potential shorts

15 Amp rating

Specifications:

Back Up Nut: Brass

Face Nut: Knurled Black Plastic with Rubber Cap

Hole Size: 7/8"

Length: Short: 1 1/8" maximum panel thickness

Material: Polyester

Rated Accessory: 15 Amp @ 12v DC

Rated Ignition: 15 Amp @ 12v DC

Rated Solenoid: 30 Amp @ 12v DC

Terminal Type: 4 Screw Tab

TYPE: Conventional

Switch Positions: Acc - Off - Run - Start
