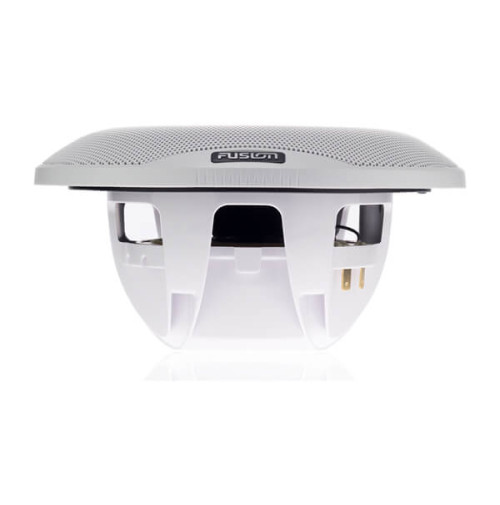

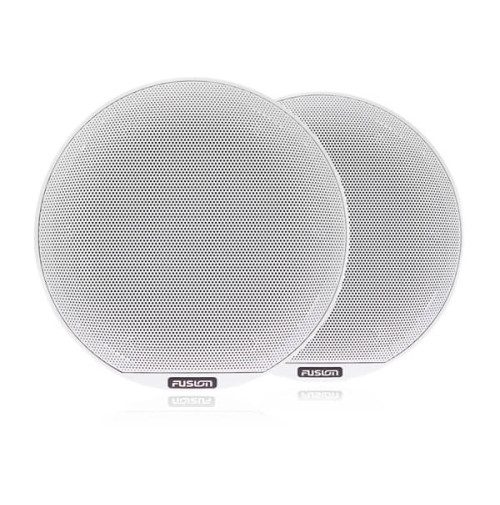

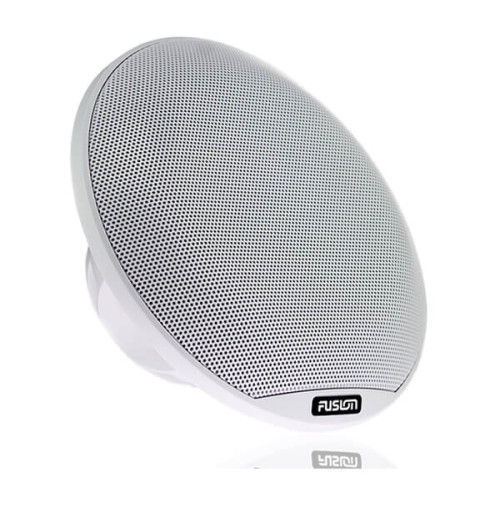

6.5" 230 Watt Coaxial Classic Marine Speaker- 010-02432-00 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02432-00
- Availability: In Stock
- $390.09
- Ex Tax: $390.09
Qty
6.5" 230 Watt Coaxial Classic Marine Speaker- 010-02432-00 - Fusion :
WHAT IN THE BOX:
- One pair of speakers (based on what you select)
- Documentation
| Fusion Electronics | |
| LED Supply Voltage | 10.8-16 VDC (sports-style only) |
| Mounting Dimensions | |
| Mounting depth clearance | 6.5" speaker: 3.11" (79 mm) |
| Mounting diameter clearance | 6.50" speaker: 5.35" (136 mm) |
| Optimum enclosure recommendations | |
| Port diameter | 3" (76 mm) |
| Port length | 6.5" speaker: 6.4" (162 mm) |
| Ported vented enclosure volume (lined with absorption material) | 6.5" speaker: 0.88 cubic ft (25 L) |
| Sealed enclosure volume (fully filled with absorption material) | 6.5" speaker: 0.64 cubic ft (18 L) |
| Product Specifications | |
| Cone Material | CURV cone with rubber surround |
| Configuration | Coaxial |
| Frequency Response | 6.5" speaker: 70 Hz - 22 kHz |
| LED Load Current at 14.4V dc | 300 mA (sports-style only) |
| Nominal Impedance | 4 ohms |
| Peak Power (Watts) | 6.5" speaker: 230 W |
| Recommended Amplifier Power (RMS) | 6.5" speaker: 30-90 W/Ch |
| RMS POWER (WATTS) | 6.5" speaker: 75 W |
| Speaker Size | SG-FL672SPW / SG-FL672SPC / SG-F672W: 6.6" |
| Tweeter Type | Silk dome |
| Voice Coil Diameter | 6.5" speaker: 1.2" |
| Warranty | 3 years |
| Water and Dust Resistance (IPX rating) | IP65 |
| Physical & Performance | |
| Compass-safe Distance | 6.5" speaker: 122" (310 cm) |
| GENERAL | |
| LED lighting | Yes - CRGBW (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Physical dimensions | 6.5" classic speaker: 8.66" x 4.31" (220 x 109.5 mm) |
| Sensitivity | 6.5" speaker: 90 dB |
Tags: subwoofers, audio systems, marine entertainment, waterproof, round, classic, 6.5 inches
