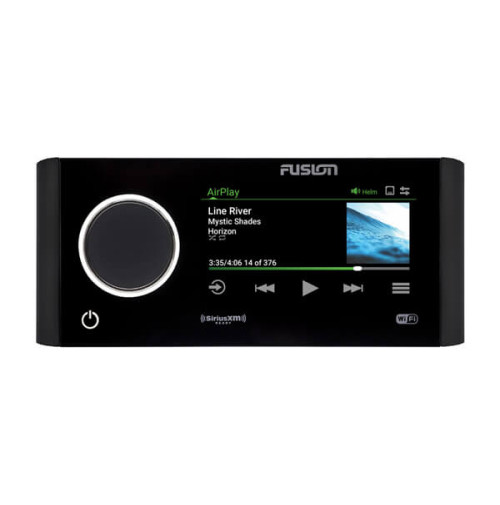

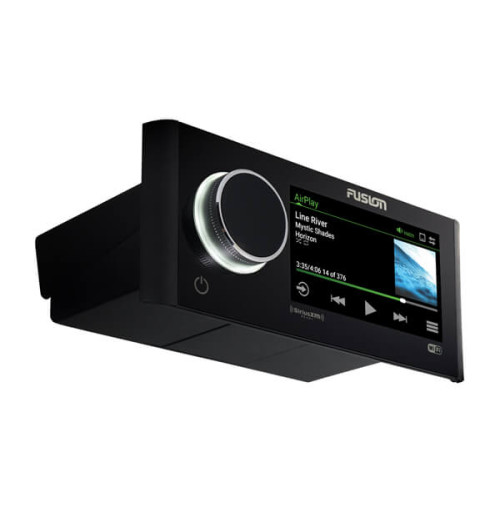

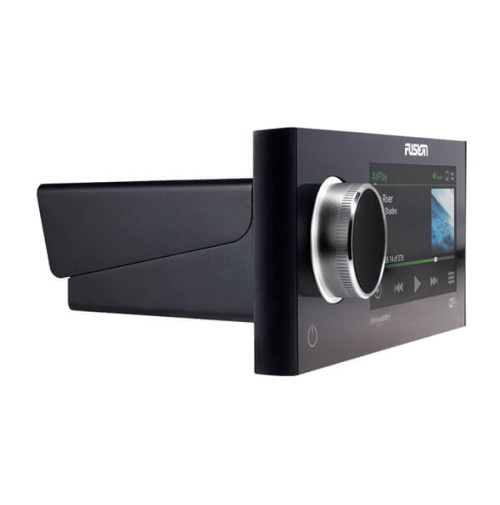

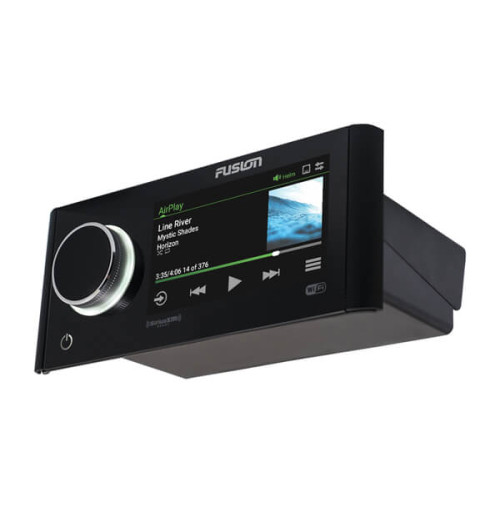

Apollo Marine Entertainment System With Built-In Wi-Fi, MS-RA770 - Touch Screen LCD - 010-01905-10 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-01905-10
- Availability: Out Of Stock
- $855.86
- Ex Tax: $855.86
Qty
Apollo Marine Entertainment System With Built-In Wi-Fi, MS-RA770 - 010-01905-10 - Fusion :
IN THE BOX:
- Fusion MS-RA770 marine stereo
- Mounting gasket
- Four 8-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 6 ft (2 meter) NMEA 2000® drop cable
- Dust cover
- Documentation
| Stereo features | |
| ANT wireless technology | yes |
| Bluetooth wireless technology | yes |
| Built-in amplifier | Class-D (2 Ohm stereo-stable) |

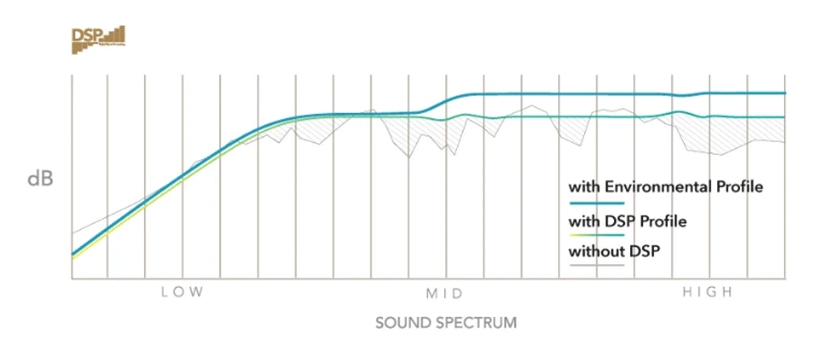

| Built-in Digital Signal Processing | yes (with preconfigured DSP profiles) |
| Built-in Wi-Fi | yes |
| DAB+ ready | yes (requires DAB100A antenna module) |

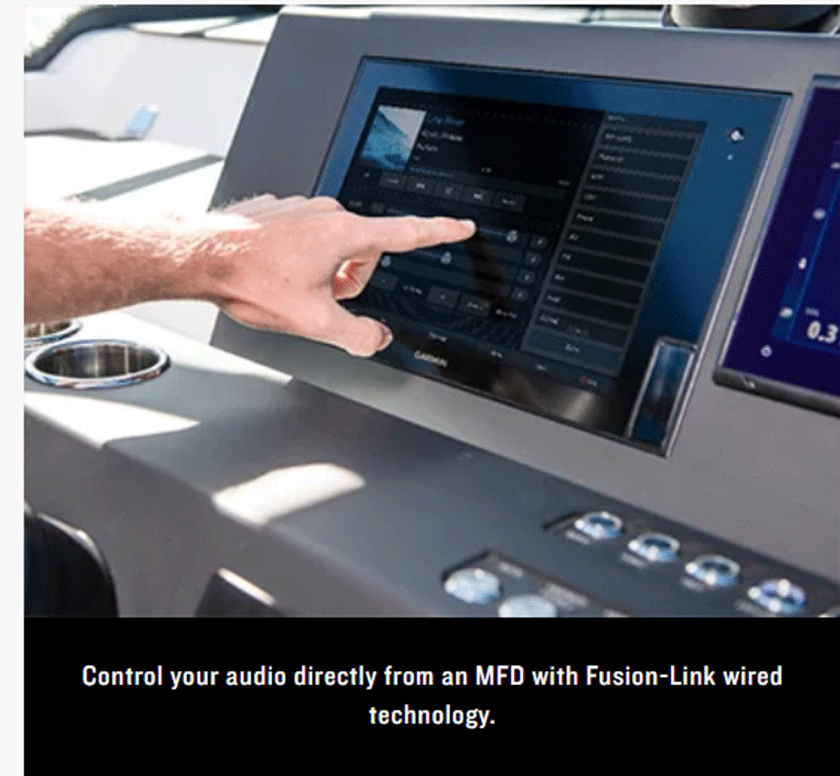

| Fusion-Link control | yes(with MFD, smartphone and Garmin watch) |
| Multi-language interface | Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish |

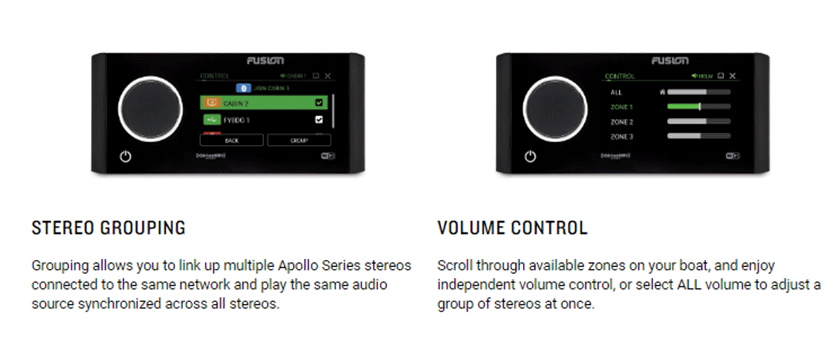

| Multi-Zone™ technology | 4 zones |
| NRX remote compatibility | yes |
| Optical audio input | One digital optical input (SPDIF) port |
| PartyBus™-Network capabilities | yes (wired or wireless) |
| Rated power output (2 Ohm) | 43 W rms x 4 @ 14.4 V input < 10% THD |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| SiriusXM-ready | yes (requires SiriusXM Connect vehicle tuner) |

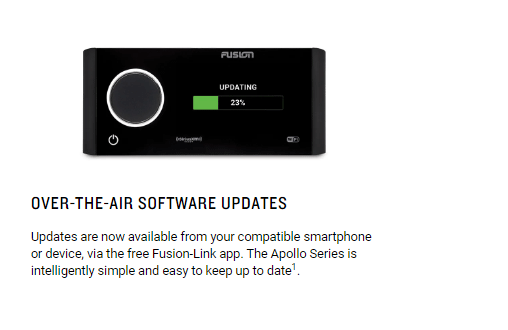

| Software updates | Over-the-air software updates via the Fusion-Link app, USB |
| Warranty | 3 years |
| GENERAL | |
| ANT wireless range | Up to 10 ft (3 meters) |
| Bluetooth wireless range | Up to 30 ft (10 meters) |
| Compass-safe distance | 5.9" (150 mm) |
| Current (max.) | 15 A |

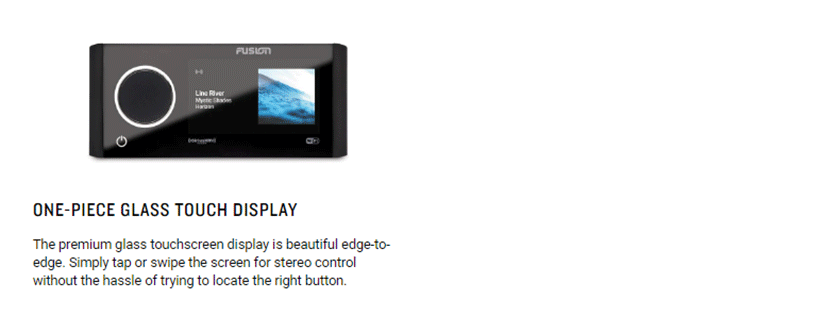

| Display size | 4.3" capacitive touch glass color LCD |
| NMEA 2000 LEN | 1 (50 mA) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Physical dimensions | Stereo dimensions (H x W x D): 3.23" x 7.56" x 4.7" (82 x 192 x 119.4 mm) |
| Power input | 10.8-16 VDC |
| Water rating | IPX6 and IPX7 (Front panel only, when properly installed) |
| Weight , | 26.5 oz (750 g) |
| Wireless frequencies/protocols | > Wi-Fi 2.4 GHz @ +15 dBm nominal // > Bluetooth 2.4 GHz @ +10 dBm nominal // > ANT 2.4 GHz @ +4 dBm nominal |

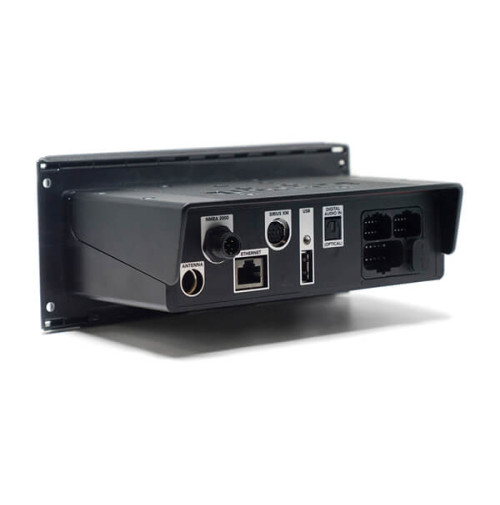

| Connectivity | |
| AM/FM radio | One Motorola antenna connector port |
| Auxiliary input | Two RCA inputs (AUX1, AUX2) |
| Ethernet | One Ethernet port |
| Line out | 4 (1 x L + R per zone, requires external amplification) |
| NMEA 2000 | One NMEA 2000 port |
| RCA pre-out (left, right and subwoofer) | 4 zones (requires external amplification) |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| Speaker | 4 x speaker connections (2 zone amplified) |
| Subwoofer out | 1 x mono output (requires external amplification) |
| USB 2.0 | One USB 2.0 port |
