Piranha P24 MK11 - Suitable for boats up to 30m, 105ft - 12/24V - 11000 Lumen - Cobalt Blue - P24-SM-B163 - Bluefin Led
- Brand: Bluefin Led
- Product Code: P24-SM-B163
- Availability: In Stock
- $758.11 $891.89
- Ex Tax: $758.11
Piranha P24 MK11:
Suitable for boats up to 30m, 105ft
Overview:

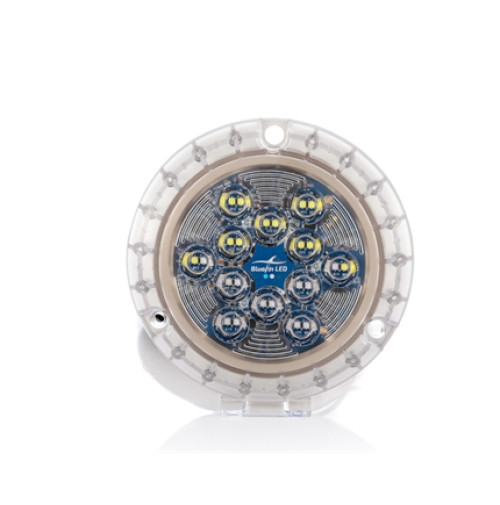

Surface Mounted LED Underwater Boat Light.
> Top of the range Piranha model with an incredible 11,000 Fixture Lumens, Ultra-high power, low price surface mount light.
> 3 models to choose from, single colour, Dual Colour or RGBW colour change.
> Lights are controlled via a simple on/off toggle switch to select and stay on the desired color or strobe (flashing) mode.
> Ultra-compact low profile design, suitable for transom and side mounting on all hull types.
> Simple installation just one small cable entry hole and 3 mounting screws
> Built-in driver technology with active thermal rollback
> Suitable for in and out of water use.
> RINA Type approval
> 2 Year warranty
SPECIFICATION:
> Suitable for transom or side hull mounting
> Surface mount, requires 18mm cable entry hole
> Recommended for boats up to 30m/105ft
> Max Lamp Lumens 17,500 / Fixture Lumens 11,000
> Typical LED life expectancy 50,000 + hours
> Voltage 12/24V, Power Draw 10.0 Amps@12V and 5.0 Amps@24V
> Over/Under voltage, current, reverse polarity, active thermal protection
> Fixture profile 18.5mm
> Fixture diameter 130mm
> Lens: optical grade high impact polymer,60 degree beam angle
> IP69K Rated
> 2 year warranty
> Swimming pool option available
What is in the box:
> In-line fuse holder
> rated fuse
> Gel connector
> Inline Crimps
> Heat shrink
> Fixing Screws
> Template
> installation instructions
Installation Manual
| Accessories options | |
| 220/110v Power Supply | Power supply 24v for up to 5 lights |
| BL-Switch | Panel mount illuminated switch & wiring loom |
| Delrin Sleeve | Isolating kit for steel, aluminum, and carbon fiber hulls |
| I.Y.S Lighting Control | Control via MFD screen or mobile device |
| Junction Box | 4 Way IP68 Wiring Junction Box |
| Specifications | |

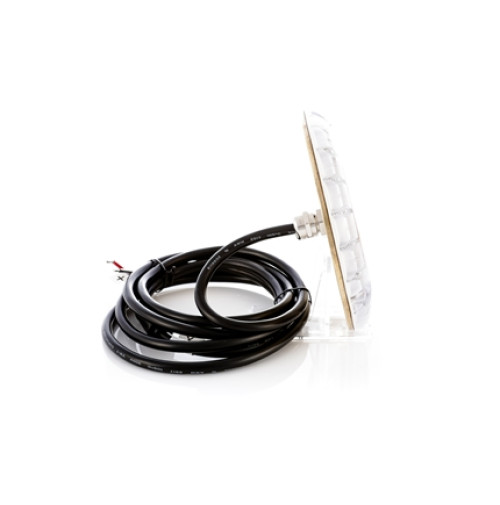

| Attatched cable length | 1.8 meter Over-moulded |
| Available Colours | Diamond White 6500k// Cobalt Blue // Sapphire Blue // Dual Colour White/Blue |
| Beam Angle | 60 Degree FWHM |
| Driver Type | Integral |
| Fixture Diameter | 130mm |
| Fixture Lumens | 10800 |
| Fixture Material | AB2 Bronze |
| Fixture Profile | 18.5mm |
| Hole cut out size | 18mm |
| Included in box | In-line fuse holder & rated fuse, Gel connector, Inline Crimps, Heat shrink, Fixing Screws, Template, and installation instructions |
| Lens Type | 3mm Optical grade high impact polymer, Guard X Coating |
| Max Wattage | 120 watts |
| Maximum Lamp Lumens | 16000 |
| Mounting Type | Surface |
| Power Draw | 10 amps @ 12v / 5 amps @ 24v |
| Protection | Over / Under Voltage, Over Current, Reverse Polarity protection, Active thermal protection. Hydro block technology |
| Spacing | 1.8 - 2.2mtr |
| Suitable Use | Above & below the water-line |
| Total weight | 550 gm |
| Type Approval | RINA IEC 60529 |
| Typical Life Expectancy | 50,000 Hours |
| Voltage range: | 12v/24v Multi-voltage |
| Warranty | 2 Year |
Tags: Marine Lights, Waterproof, Protection, Round, Underwater, LED,
