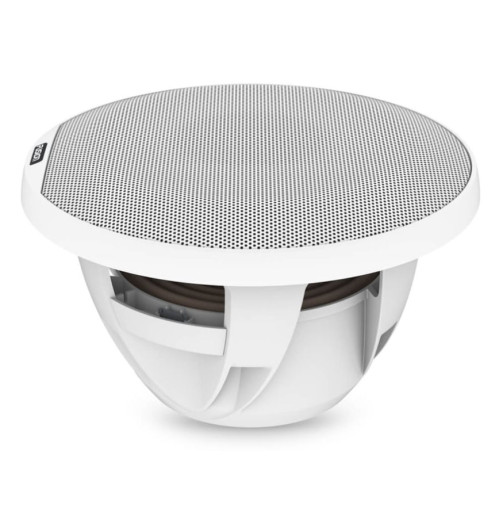

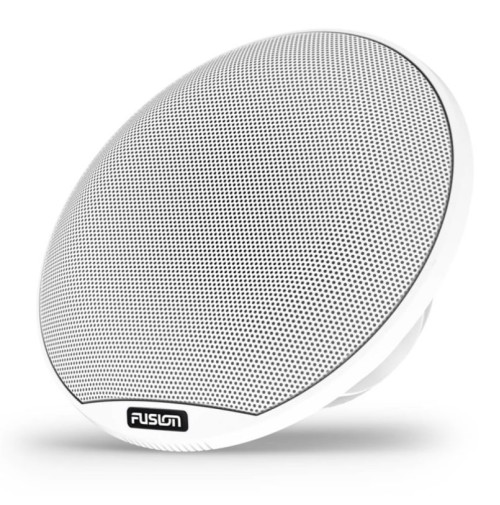

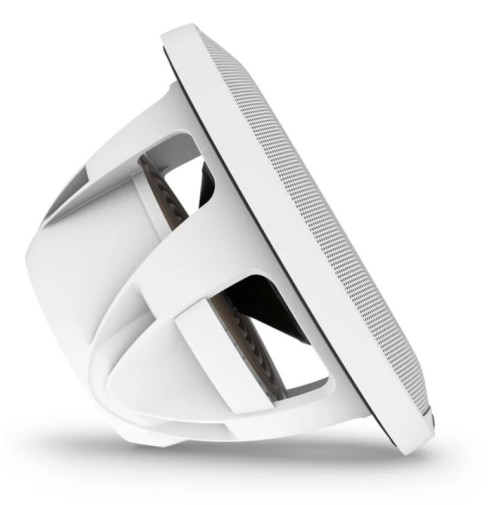

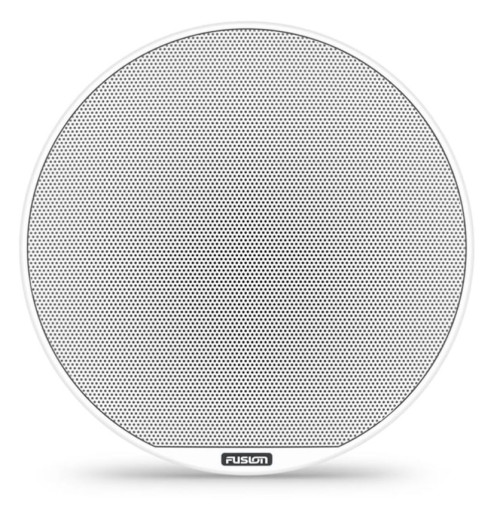

Fusion Signature Series 3i - Marine Subwoofers - 10" - 600-watt Classic - White Marine Subwoofer - 010-02774-00 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02774-00
- Availability: In Stock
- $359.46
- Ex Tax: $359.46
Fusion Signature Series 3i - Marine Subwoofers - 10" - 600-watt Classic - White Marine Subwoofer - 010-02774-00 - Fusion :
WHAT IN THE BOX:
- One subwoofer (based on what you select) //
- 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”) //
- Water-resistant cable assembly with 2-pin connector (5.9" (150 mm)) /
- Water-resistant cable assembly with 6-pin connector ((5.9" (150 mm)); sports style with LED models only) //
- Documentation
| Mounting Dimensions | |
| Mounting depth clearance | 12" subwoofer: 8.15" (207 mm)// 10" subwoofer: 5.24" (133 mm) |
| Mounting diameter clearance | 12" subwoofer: 12.05" (306 mm)// 10" subwoofer: 8.78" (223 mm) |
| Optimum enclosure recommendations | |
| Port diameter | 12" subwoofer: 4" (101.6 mm)// 10" subwoofer: 4.1" (104 mm) |
| Port length | 12" subwoofer: 5" (127 mm) // 10" subwoofer: 10.43" (265 mm) |
| Ported (vented) enclosure volume | (lined with absorption material)// 12" subwoofer: 8.83 cubic ft (250 L) // 10" subwoofer: 1.6 cubic ft (45 L) |
| Sealed enclosure volume (fully filled with absorption material) | 12" subwoofer: 2.12 cubic ft (60 L)// 10" subwoofer: 0.95 cubic ft (27 L) |
| Product Specifications | |
| Magnetic Structure | 12" subwoofer: 114 oz// 10" subwoofer: 68 oz |
| GENERAL | |
| Compass-safe distance | 12" subwoofer: 181" (460 cm)// 10" subwoofer: 205" (520 cm) |

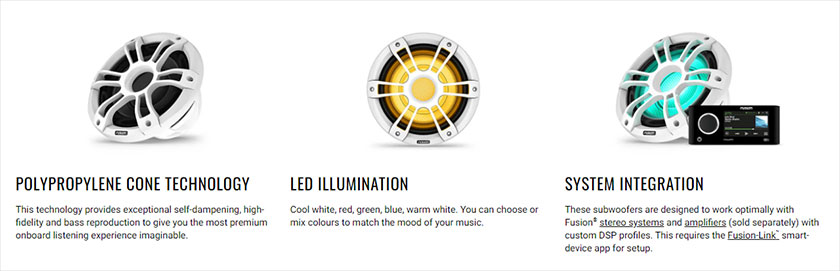

| Cone material | Polypropylene cone with rubber surround |
| Frequency response | 12" subwoofer: 20 Hz–2 kHz// 10" subwoofer: 30 Hz–2 kHz |
| LED connection (sports style with LED models only) | Flying lead with water-resistant 6-way connector, 5.9" (150 mm) |
| LED lighting | yes, CRGBW (sports style with LED models only) |
| LED load current @14.4 VDC (max) | 300 mA (sports style with LED models only) |
| LED supply voltage | 10.8–16 VDC (sports style with LED models only) |
| Nominal impedance | 4 ohm |
| Operating temperature range | 32–122 degrees F (0–50 degrees C) |
| Peak power (Watts) | 12" subwoofer: 1400 watts // 10" subwoofer: 600 watts |
| Physical dimensions | 12" sports subwoofer: 14.02" x 10" (356 x 254 mm)// 10" classic subwoofer: 10.83" x 6.38" (275 x 162 mm)// 10" sports subwoofer: 10.83" x 6.77" (275 x 172 mm) |
| Recommended amplifier power (watts RMS) | 12" subwoofer: 200–1000 watts// 10" subwoofer: 50–600 watts |
| RMS power rating (watts) | 12" subwoofer: 700 watts// 10" subwoofer: 300 watts |
| Sensitivity (1 watt @ 1 metre) | 86 dB |
| Subwoofer connection | Flying lead with water-resistant 2-way connector, 5.9" (150 mm) |
| Voice coil diameter | 12" subwoofer: 4"// 10" subwoofer: 2" |
| Warranty | 3 years |
| Water and dust rating | IP65 |
| WEIGHT | 12" CRGBW sports subwoofer: 24.1 lbs (10.93 kg) // 10" CRGBW sports subwoofer: 11.3 lbs (5.12 kg) // 10" sports subwoofer: 11.2 lbs (5.06 kg) // 10" classic subwoofer: 11 lbs (4.98 kg) |
