BOTTOM COWLING - 2 Strock for T75T85T90
- Brand: Yamaha
- Product Code: BOTTOM COWLING - 2 Strock for T75T85T90
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

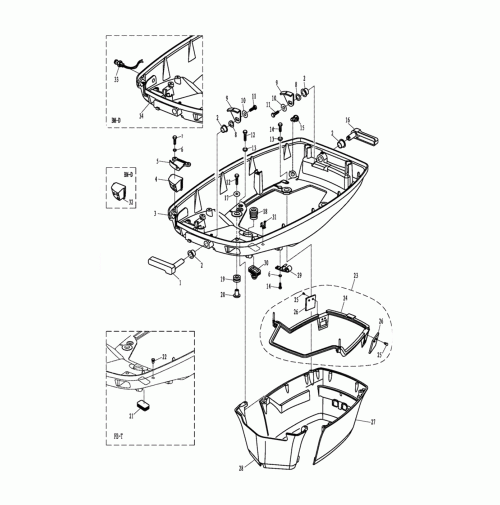

BOTTOM COWLING - 2 Strock for T75T85T90
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | T85-03000300 | LOCKING HANDLE A | 688-42815-01-8D |
| 2 | T85-03000011 | BUSH | 90386-13M38 |
| 3 | T85-03000001 | BOTTOM COWLING | 688-42711-04-8D |
| 4 | T85-03000008 | JAM, RUBBER | 0.00 |
| 5 | T85-03000009 | COVER, BOTTOM COWLING | 688-42738-01-8D |
| 6 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 7 | GB/T5783-M6x16 | BOLT M6x16 | 0.00 |
| 8 | T85-03000010 | ||
| 9 | T85-03000012 | LOCKING HOOK ASSY | 0.00 |
| 10 | GB/T96-6 | BIG WASHER 6 | 0.00 |
| 11 | GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73 |
| 12 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
| 13 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 14 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 15 | F15-05000009 | PIPE, JOINT | 6E5-44391-00 |
| 16 | T85-03000400 | LOCKING HANDLE B | 688-42817-01-8D |
| 17 | F25-00000004 | BIG WASHER 6 | 92992-06100 |
| 18 | T85-03000003 | JACKET, BELLOWS | 663-42724-00 |
| 19 | F25-03000006 | DAMPER | 6BG-42748-00 |
| 20 | F25-03000007 | BUSH, DAMPER | 90387-06M69 |
| 21 | F15-05000003 | RUBBER PLUG, QUADRATE | 688-42726-10 |
| 22 | F15-13000203W | INSULATED PLUG B | 90464-09M13 |
| 23 | T85-00000200 | SEAL ASSY, UPPER CASING | 0.00 |
| 24 | T85-00000201 | SEAL, UPPER CASING | 688-42716-02 |
| 25 | T85-00000203 | PLASTIC NAIL | 0.00 |
| 26 | T85-00000202 | GASKET, RUBBER | 0.00 |
| 27 | T85-02000006 | COVER, UPPER CASING | 688-42741-01-8D |
| 28 | T85-02000007 | BACK COVER, UPPER CASING | 688-42771-01-8D |
| 29 | T85-03000007 | CLAMP B, WIRE | 6E5-24367-01 |
| 30 | T85-03000004 | JACKET, POWER CABLE | 6H4-42726-00 |
| 31 | T85-03000005 | SQUARE CLAMP | 90464-09M13 |
| 32 | T85-03000013 | JAM B, RUBBER | 688-42725-10 |
| 33 | F15-07130303 | INDICATOR LIGHT ASSY | 0.00 |
| 34 | T85-03000001-BM | BOTTOM COWLING | 0.00 |
