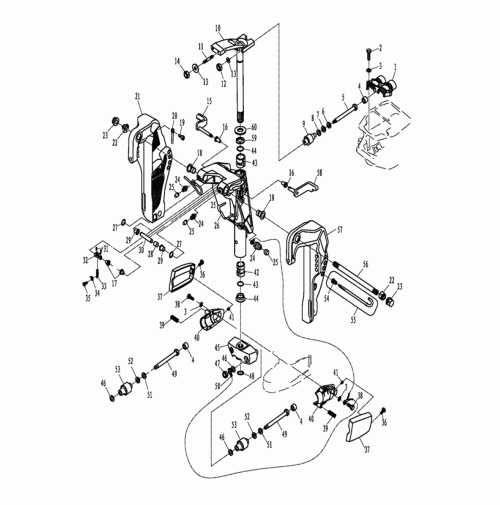

BRACKET 1 - 2 Strock for T60A
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T85-02000005
| COVER, ABSORBER
| 688-44511-00
|
| 2 | GB/T9074.14-M8X35
| BOLT M8x35
| 90119-08M10
|
| 3 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 4 | T85-00000003
| ROBBER CAP
| 663-44575-00
|
| 5 | T85-02020003
| LONG BOLT
| 90101-10M49
|
| 6 | T85-02020004
| WASHER B
| 90201-11M22
|
| 7 | T85-02020002
| GASKET, RUBBER B
| 90202-20M06
|
| 8 | T85-02020001
| PLATE B, ABSORBER
| 90201-20M21
|
| 9 | T85-02020100
| ABSORBER B
| 688-44514-00
|
| 10 | T85-01020000
| HELM BRACKET ASSY
| 69D-42510-11-8D
|
| 11 | T85-01020008
| BOLT STUD M10x1.25x28
| 90116-10M28
|
| 12 | GB/T6170-M10x1.25
| NUT M10x1.25
| 95380-10600
|
| 13 | GB/T97.1-10
| WASHER 10
| 90201-10120
|
| 14 | GB/T889.2-M10x1.25
| LOCK NUT M10x1.25
| 90185-10051
|
| 15 | F60-01010104
| SUPPORT BRACKET ASSY B
| 0.00
|
| 16 | T85-01010203
| BUSH, NYLON
| 90386-10M16
|
| 17 | F60-01010103
| BUSH, NYLON
| 0.00
|
| 18 | F60-01010004
| BUSH, NYLON
| 0.00
|
| 19 | GB/T818-M6x10
| SCREW M6x10
| 97880-06012
|
20
| T85-01010003
| EARTH WIRE A
| 6E5-82148-00
|
21
| F60-01010002
| CLAMP BRACKET, RIGHT
| 0.00
|
| F60-01010002FW
| CLAMP BRACKET, RIGHT
| 0.00
|
22
| F15-01010007
| NUT, SELF-LOCKING
| 90185-22043
|
23
| F25-01010011
| PLASTIC NUT
| 6G5-43145-01
|
24
| JB/T9740.1-M6
| NIPPLE, GREASE M6
| 93700-06M03
|
25
| T85-01010210
| CAP, RUBBER
| 663-45119-00
|
26
| T60-01010301
| BRACKET, ROTARY
| 69D-43311-11-8D
|
27
| GB/T894.1-16
| CIRCLIP 16
| 93410-16007
|
28
| T60-01010004
| BUSH A
| 0.00
|
| 29 | T60-01010005
| BUSH B
| 0.00
|
| 30 | T60-01010006
| LIMITED SHAFT, TILT
| 0.00
|
| 31 | GB/T879.2-3x16
| PIN 3x16
| 0.00
|
| 32 | T85-01010206
| SWING LINK ASSY, SUPPORT
| 6G5-43148-00
|
| 33 | T85-01010207
| SPRING, SWING SHAFT
| 90506-14M24
|
| 34 | T85-01010208
| BRACKET,TENSION SPRING
| 6G5-43144-00
|
| 35 | GB/T5783-M6x10
| BOLT M6x10
| 0.00
|
| 36 | GB/T823-M6x16
| SCREW M6x16
| 0.00
|
| 37 | T60-00000003
| COVER, ABSORBER
| 6H3-44553-01-8D
|
| 38 | GB/T9074.14-M8X25
| BOLT M8x25
| 90119-08m51
|
| 39 | T85-00000007
| SPRING
| 90501-14M08
|
| 40 | T60-00000002
| COVER, DAMPER
| 6H3-44552-03
|
| 41 | T85-00000006
| NUT, PLASTIC
| 0.00
|
| 42 | T85-01020005
| BUSH, ROTARY BRACKET
| 90386-30M77
|
| 43 | T85-01020004
| O-RING
| 93210-29M94
|
| 44 | T85-01020006
| BUSH, ROTARY BRACKET
| 90386-30M60
|
| 45 | T85-01020007
| ABSORBER BLOCK
| 663-44551-02-8D
|
| 46 | T85-00000020
| PLATE, ABSORBER
| 90201-12M16
|
| 47 | T36-00000011
| NUT M12x1.25
| 95380-12800
|
| 48 | T85-01020010
| CIRCLIP
| 93410-28M06
|
| 49 | T85-00000004
| BOLT, ABSORBER
| 90109-12261
|
| 50 | T85-00000019
| EARTH WIRE B
| 688-82127-02
|
| 51 | T85-00000002
| WASHER A
| 0.00
|
| 52 | T85-00000001
| GASKET, RUBBER A
| 90202-25M04
|
| 53 | T85-00000100
| ABSORBER ASSY
| 688-44555-00
|
| 54 | T85-01010403
| CONICAL SPRING
| 90502-16M02
|
| 55 | T85-01010400
| LIMITATIVE ROD, TILT LOCK
| 688-43160-01
|
| 56 | F60-01010003A
| DOUBLE-EDGED TUBE
| 0.00
|
| 57 | T60-01010101
| CLAMP BRACKET, LEFT
| 0.00
|
| 58 | F60-01010102
| SUPPORT BRACKET ASSY A
| 6H5-43181-03
|
| 59 | T85-01020003
| BUSH, ROTARY BRACKET
| 90386-30M78
|
| 60 | T85-01020002
| WASHER, ROTARY BRACKET
| 90201-30M00
|
