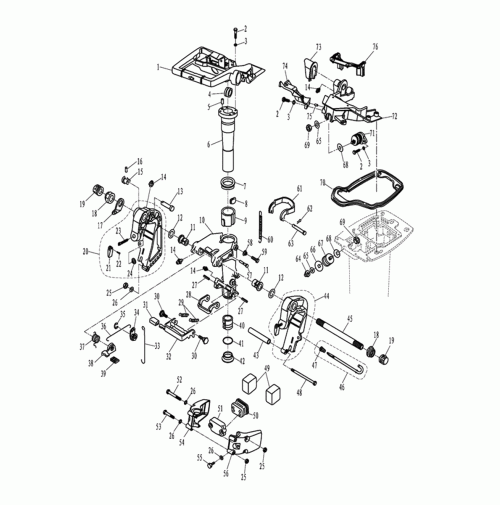

BRACKET - 2 Strock for T25T30A
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
1
| T20-01020001
| BRACKET,HELM
| 69P-42511-00-4D
|
2
| GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
3
| GB/T97.1-6
| WASHER 6
| 92995-06600
|
4
| T20-01000001
| RUBBER RING, BRACKET
| 90480-29045
|
5
| F25-00000014
| PIN 8x12
| 99530-08012
|
6
| T20-01020002
| SHAFT,HELM BRACKET
| 689-42521-00-94
|
7
| T20-01000002
| WASHER, ROTARY BRACKET
| 90209-47016
|
8
| T20-01000200
| PLATE, LOCK
| 648-42528-00
|
9
| T20-01000003
| BUSH, ROTARY BRACKET
| 90386-47M22
|
10
| T20-01010301
| BRACKET, ROTARY
| 689-43311-03-4D
|
11
| F15-01010302
| BUSH, ROTARY BRACKET
| 90386-22M94
|
12
| F25-01010003
| WASHER
| 90201-22M03
|
13
| T20-01010202
| LIMITED SHAFT, TILT
| 689-43191-00
|
14
| JB/T9740.1-M6
| NIPPLE, GREASE M6
| 93700-06M03
|
15
| T20-01010203
| LIMITING HANDLE, TILT
| 689-43192-01
|
16
| GB/T879.2-3x16
| PIN 3x16
| 0.00
|
17
| F25-01010004
| PLATE, TWO HOLE
| 6J8-43113-01
|
18
| F15-01010007
| NUT, SELF-LOCKING
| 90185-22043
|
19
| F25-01010011
| PLASTIC NUT
| 6G5-43145-01
|
| 20 | T20-01010200
| RIGHT CLAMP BRACKET ASSY | 689-43112-02-4D |
| 21 | F4-01010004
| HANDLE, CLAMP | 69M-G3118-00 |
| 22 | F4-01010005
| RIVET, CLAMP HANDLE | 90243-04M01 |
| 23 | F25-01010104
| SCREW, CLAMP | 90149-14M12 |
| 24 | F4-01010003
| CLAMP PLATE | 6F5-43114-00 |
| 25 | GB/T6170-M8
| NUT M8 | 95380-08600 |
| 26 | GB/T97.1-8
| WAHSER 8 | 92995-08100 |
| 27 | GB/T879.1-4x38
| PIN 4x38 | 0.00 |
| 28 | T20-01010305
| INNER FRAME, LOCKER HANDLE | 648-43615-00 |
| 29 | T20-01010304
| SPRING, SUPPORT
| 90506-16M17
|
| 30 | T20-01010303
| SCREW, FLAT HEXAGON
| 90109-06M18
|
| 31 | F15-01010305-3
| JACKET, HANDLE
| 682-43318-01
|
| 32 | T20-01010302
| SUPPORT BRACKET ASSY
| 689-43681-01
|
| 33 | T20-01010309
| PULL ROD, INNER FRAME
| 648-43617-00
|
| 34 | T20-01010310
| BRACKET, PULL ROD
| 648-43642-00
|
| 35 | GB/T896-5
| CIRCLIP 5
| 99080-05600
|
| 36 | T20-01010311
| SPRING, PULL ROD
| 689-43616-00
|
| 37 | T20-01010003
| WREST SPRING
| 689-43643-00
|
| 38 | T20-01010001
| LOCKING HANDLE
| 689-43631-00
|
| 39 | T20-01010002
| JACKET, LOCKING HANDLE
| 689-43633-00
|
| 40 | T20-01000004
| BUSH, ROTARY BRACKET | 90386-38090 |
| 41 | T20-01000005
| O-RING | 93210-37160 |
| 42 | T20-01000006
| WASHER, ROTARY BRACKET | 90386-38022 |
| 43 | T20-01010004
| TUBE, BOLT | 90387-08M03 |
| 44 | T20-01010100
| LEFT CLAMP BRACKET ASSY | 689-43111-03-4D |
| 45 | F15-01010001
| DOUBLE-EDGED TUBE | 63W-43131-10
|
| 46 | F15-01010400
| LIMITATIVE ROD, TILT LOCK | 689-43160-00 |
| 47 | F15-01010402 | CONICAL SPRING | 90502-10M07 |
| 48 | GB/T5782-M8x155
| BOLT M8x155 | 0.00
|
| 49 | T20-00000004
| MOUNT DAMPER |
50
| T20-00000006
| DAMPER, FRONT
| 689-44557-00
|
51
| T20-00000005
| COVER, FRONT DAMPER
| 689-44553-00-94
|
52
| GB/T5782-M8x105
| BOLT M8x105
| 0.00
|
53
| GB/T5782-M8x70
| BOLT M8x70
| 0.00
|
54
| T20-00000003
| RIGHT ABSORBER COVER
| 689-44552-01-4D
|
55
| GB/T9074.14-M8X25
| BOLT M8x25
| 90119-08m51
|
56
| T20-00000011
| LEFT ABSORBER COVER
| 689-44551-01-4D
|
57
| T20-01010312
| SHAFT, PULL ROD
| 90249-06M22
|
58
| F15-01010303
| SEAL, LOCK BOLT
| 689-43373-01
|
59
| GB/T5787-M6x25
| BOLT M6x25
| 0.00
|
60
| T20-01010308
| SPRING, OUTER FRAME
| 90506-30M27
|
61
| T20-01010306
| FRAME ASSY, LOCKED HANDLE
| 689-43614-01
|
62
| GB/T91-1.2x12
| COTTER PIN 2x12
| 0.00
|
63
| T20-01010307
| SHAFT, LOCKED HANDLE
| 90240-05047
|
64
| GB/T923-M10x1.25
| COVER NUT M10x1.25
| 0.00
|
65
| GB/T97.1-10
| WASHER 10
| 90201-10120
|
66
| T20-00000001
| GASKET A, ABSORBER
| 664-44591-A0
|
| 67 | T20-00000100
| ABSORBER ASSY
| 664-44514-00-94
|
| 68 | T20-00000002 | GASKET B, ABSORBER | 664-44591-A0
|
| 69 | GB/T6170-M10x1.25
| NUT M10x1.25
| 95380-10600
|
| 70 | T20-00000007
| SEAL, UPPER CASING
| 69P-42716-00
|
| 71 | T20-01000100
| ABSORBER, SHIFT ROD BRACKET
| 689-44516-00
|
| 72 | T20-03000001
| BRACKET, SHIFT ROD
| 69P-44518-00-94
|
| 73 | T20-03000004
| RUBBER RING, SHIFT HANDLE
| 0.00
|
| 74 | T20-03000013
| BRACKET, BOTTOM COWLING
| 648-44519-00-94
|
| 75 | F15-00000006
| PIN 6x12
| 93606-12019
|
| 76 | T20-00000008
| GASKET, SHIFT ROD BRACKET
| 69P-42717-00
|
