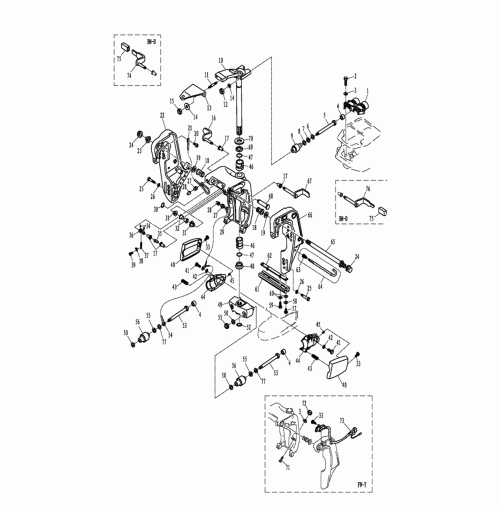

BRACKET - 2 Strock for T75T85T90
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T85-02000005
| COVER, ABSORBER
| 688-44511-00
|
| 2 | GB/T9074.14-M8X35
| BOLT M8x35
| 90119-08M10
|
| 3 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 4 | T85-00000003
| ROBBER CAP
| 663-44575-00
|
| 5 | T85-02020003
| LONG BOLT
| 90101-10M49
|
| 6 | T85-02020004
| WASHER B
| 90201-11M22
|
| 7 | T85-02020002
| GASKET, RUBBER B
| 90202-20M06
|
| 8 | T85-02020001
| PLATE B, ABSORBER
| 90201-20M21
|
| 9 | T85-02020100
| ABSORBER B
| 688-44514-00
|
| 10 | T85-01020000
| HELM BRACKET ASSY
| 69D-42510-11-8D
|
| 11 | T85-01020008
| BOLT STUD M10x1.25x28
| 90116-10M28
|
| 12 | GB/T889.2-M10x1.25
| LOCK NUT M10x1.25
| 90185-10051
|
| 13 | T85-01020009
| LINK PLATE, STEERING
| 688-48511-30
|
| 14 | GB/T97.1-10
| WASHER 10
| 90201-10120
|
| 15 | GB/T889.1-M10x1.25
| LOCK NUT M10
| 0.00
|
| 16 | T85-01010202
| SUPPORT BRACKET ASSY A
| 6H1-43185-01
|
| 17 | T85-01010203
| BUSH, NYLON
| 90386-10M16
|
| 18 | F25-01010002
| BUSH, NYLON
| 90386-22M15
|
| 19 | F25-01010003
| WASHER
| 90201-22M03
|
| 20 | GB/T818-M6x10
| SCREW M6x10
| 97880-06012
|
| 21 | T85-01010003
| EARTH WIRE A
| 6E5-82148-00
|
| 22 | T85-01010002
| CLAMP BRACKET, RIGHT
| 6H1-43112-00-8D
|
| 23 | F15-01010007
| NUT, SELF-LOCKING
| 90185-22043
|
| 24 | F25-01010011
| PLASTIC NUT
| 6G5-43145-01
|
| 25 | GB/T5785-M10x1.25x45
| BOLT M10x1.25x45
| 0.00
|
| 26 | GB/T93-10
| WASHER, SPRING 10
| 92995-10100
|
| 27 | JB/T9740.1-M6
| NIPPLE, GREASE M6
| 93700-06M03
|
| 28 | T85-01010210
| CAP, RUBBER
| 663-45119-00
|
| 29 | T85-01010201
| BRACKET, ROTARY
| 6H1-43311-02-8D
|
| 30 | GB/T894.1-18
| CIRCLIP 18
| 93410-18M02
|
| 31 | T85-00000017
| BUSH A
| 90386-18M35
|
| 32 | T85-00000018
| BUSH B
| 90386-18M63
|
| 33 | GB/T818-M6x16
| SCREW M6x16
| 90159-06M11
|
| 34 | GB/T879.3-3x16
| PIN 3x16
| 0.00
|
| 35 | T85-01010205
| BUSH
| 90387-10M02
|
| 36 | T85-01010206
| SWING LINK ASSY, SUPPORT
| 6G5-43148-00
|
| 37 | T85-01010207
| SPRING, SWING SHAFT
| 90506-14M24
|
| 38 | T85-01010208
| BRACKET,TENSION SPRING
| 6G5-43144-00
|
| 39 | GB/T5783-M6x10
| BOLT M6x10
| 0.00
|
| 40 | T85-00000008
| COVER, ABSORBER
| 0.00
|
| 41 | GB/T9074.14-M8x25
| BOLT M8x25
| 90119-08m51
|
| 42 | GB/T93-8
| WASHER, SPRING 8
| 92995-08100
|
| 43 | T85-00000007
| SPRING
| 90501-14M08
|
| 44 | T85-00000005
| COVER, DAMPER
| 687-44552-02
|
| 45 | T85-00000006
| NUT, PLASTIC
| 0.00
|
| 46 | T85-01020005
| BUSH, ROTARY BRACKET
| 90386-30M77
|
| 47 | T85-01020004
| O-RING
| 93210-29M94
|
| 48 | T85-01020006
| BUSH, ROTARY BRACKET
| 90386-30M60
|
| 49 | T85-01020007
| ABSORBER BLOCK
| 663-44551-02-8D
|
| 50 | T85-00000020
| PLATE, ABSORBER
| 90201-12M16
|
| 51 | T36-00000011
| NUT M12x1.25
| 95380-12800
|
| 52 | T85-01020010
| CIRCLIP
| 93410-28M06
|
| 53 | T85-00000004
| BOLT, ABSORBER
| 90109-12261
|
| 54 | T85-00000019
| EARTH WIRE B
| 688-82127-02
|
| 55 | T85-00000001
| GASKET, RUBBER A
| 90202-25M04
|
| 56 | T85-00000100
| ABSORBER ASSY
| 688-44555-00
|
| 57 | GB/T5783-M6x12
| BOLT M6x12
| 90119-06M73
|
| 58 | GB/T93-6
| WASHER, SPRING 6
| 92995-06100
|
| 59 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 60 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 61 | T85-01010005
| ANODE
| 6H1-45251-03
|
| 62 | T85-01010004
| PLATE, ANODE
| 6H1-44256-00
|
| 63 | T85-01010403
| CONICAL SPRING
| 90502-16M02
|
| 64 | T85-01010400
| LIMITATIVE ROD, TILT LOCK
| 688-43160-01
|
| 65 | T85-01010300
| DOUBLE-EDGED TUBE ASSY
| 688-43131-03
|
| 66 | T85-01010001
| CLAMP BRACKET, LEFT
| 688-43111-13-8D
|
| 67 | T85-01010204
| SUPPORT BRACKET ASSY B
| 6H1-43181-10
|
| 68 | T85-00000016
| LIMITED SHAFT, TILT
| 6E5-43126-02
|
| 69 | T85-01020003
| BUSH, ROTARY BRACKET
| 90386-30M78
|
| 70 | T85-01020002
| WASHER, ROTARY BRACKET
| 90201-30M00
|
| 71 | T85-00000015
| SCREW, SUPPORT
| 6H1-43376-00
|
| 72 | GB/T6182-M8
| LOCK NUT M8
| 90185-08057
|
| 73 | T85-01010100A
| TILT SENSOR ASSY
| 0.00
|
| 74 | T85-01010211
| SUPPORT BRACKET ASSY C
| 688-43185-04
|
| 75 | T36-01010304-2
| JACKET, LOCKED HANDLE
| 0.00
|
| 76 | T85-01010212
| SUPPORT BRACKET ASSY D
| 688-43181-00
|
| 77 | T85-00000002
| WASHER A
| 0.00
|
