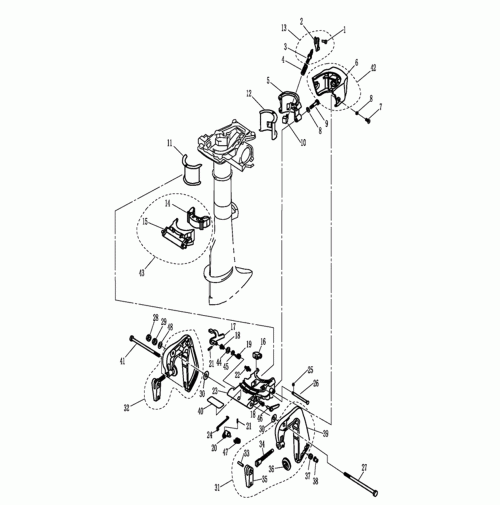

BRACKET - 4 Strok For F2.6BM
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | GB/T875-4X11 | RIVET 4x11 | 90266-04M05
|
| 2 | F4-01060002 | CLAMP HANDLE | 68D-G2561-01
|
| 3 | F2.6-01050101 | BOLT, LOCKED HANDLE | 69M-42529-00
|
| 4 | F2.6-01050002 | SPRING
|
|
| 5 | F2.6-01050001 | COVER, ROTARY BRACKET
| 69M-G3312-00-4D
|
| 6 | F2.6-00000101 | COVER, BRACKET |
|
| 7 | GB/T818-M6X16 | SCREW M6x16 | 90159-06M11
|
| 8 | GB/T97.1-6 | WASHER 6 | 92995-06600
|
| 9 | GB/T5783-M6X30 | BOLT M6x30
|
|
| 10 | F2.6-01050200
| LOCKED BLOCK ASSY
| 69M-42528-00
|
| 11 | F2.6-01000003
| BUSH A, ROTARY BRACKET
| 69M-G2537-00
|
| 12 | F2.6-01000004
| BUSH B, ROTARY BRACKET
| 69M-G2538-00
|
| 13 | F2.6-01050100
| LOCKED HANDLE ASSY
|
|
| 14 | F2.6-01040100
| DAMPER, THRUST
| 69M-44557-00
|
| 15 | F2.6-01040001
| BRACKET, THRUST
| 69M-G3351-00
|
| 16 | F2.6-01030007
| SPACER, TILT
| 69M-G3186-00
|
| 17 | F2.6-01030100-A
| TILT CLAMP HANDLE ASSY
|
|
| 18 | F4-01090006
| BUSH
| 90386-08032
|
| 19 | F2.6-01030003-A
| WREST SPRING
|
|
| 20 | F2.6-01030004-A
| LEVER, TILT LOCK
| |
| 21 | GB/T879.2-2X10
| PIN 2x10
|
|
| 22 | JB/T9740.1-M6
| NIPPLE, GREASE M6
|
|
| 23 | F2.6-01030001
| BASE, ROTARY BRACKET
| 69M-G3311-00-4D
|
| 24 | F2.6-01030005-A
| LINK, LOCATED
|
|
| 25 | GB/T896-3.5
| CIRCLIP 3.5
|
|
| 26 | F2.6-01030006
| SHAFT, TILT
| 69M-G3166-00
|
| 27 | F2.6-01000001
| BOLT M8x135
| 90101-08M07
|
| 28 | GB/T6172.1-M8
| THIN NUT M8
|
|
| 29 | GB/T6170-M8
| NUT M8
| 95380-08600
|
| 30 | GB/T96-8
| BIG WASHER 8
| |
| 31 | F2.6-01010000
| LEFT CLAMP BRACKET ASSY
|
|
| 32 | F2.6-01020000
| RIGHT CLAMP BRACKET ASSY
|
|
| 33 | F4-01010005
| RIVET, CLAMP HANDLE
| 90243-04M01
|
| 34 | F4-01010002
| SCREW, CLAMP
| 6E0-43116-01
|
| 35 | F4-01010004
| HANDLE, CLAMP
| 69M-G3118-00
|
| 36 | F4-01010003
| CLAMP PLATE
| 6F5-43114-00
|
| 37 | F2.6-01000002
| BUSH, BOLT
| 90201-06040
|
| 38 | GB/T889.1-M6
| LOCK NUT M6
|
|
| 39 | F2.6-01010001
| CLAMP BRACKET, LEFT
|
|
| 40 | F2.6-07000009
| MARK 9
| 69M-G3691-00
|
| 41 | GB/T5782-M6X125
| BOLT M6x125
|
|
| 42 | F2.6-00000100
| BRACKET COVER ASSY
| 69M-G3318-00
|
| 43 | F2.6-01040000
| BRACKET ASSY, THRUST
|
|
| 44 | F2.6-01030009
| WASHER
|
|
| 45 | GB/T896-6
| CIRCLIP 6
|
|
| 46 | F2.6-01030200
| TILT BAR
|
|
| 47 | F2.6-01030008
| SPRING, TILT BAR
|
|
| 48 | GB/T97.1-8
| WAHSER 8
| 92995-08100 |
|
