BRACKET - 4 Strok For F5AF6A
- Brand: Yamaha
- Product Code: BRACKET - 4 Strok For F5AF6A
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

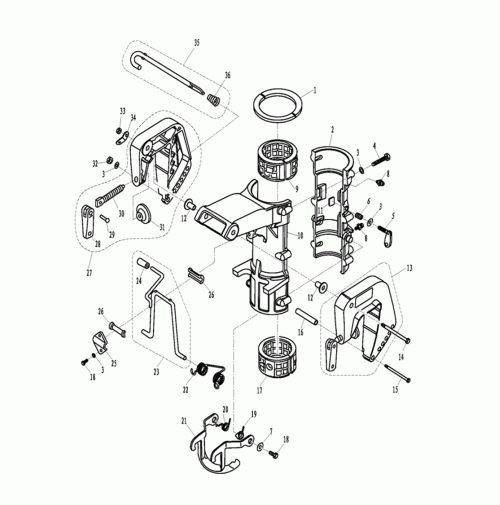

BRACKET - 4 Strok For F5AF6A
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | T5-01010003 | BUSH, NYLON | |
| 2 | F6-01010101 | COVER, ROTARY BRACKET | 68D-G3312-01-4D |
| 3 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 4 | GB/T5783-M6X35 | BOLT M6x35 | |
| 5 | F2.6-01050100 | LOCKED HANDLE ASSY | |
| 6 | F2.6-01050002 | SPRING | |
| 7 | GB/T96-6 | BIG WASHER 6 | |
| 8 | JB/T9740.1-M6 | NIPPLE, GREASE M6 | |
| 9 | T5-01010004 | UPPER ABSORBER |
| 10 | F6-01010001 | BASE, ROTARY BRACKET | 68D-G3311-01-4D |
| 11 | T5-01010100 | LOCKED BLOCK ASSY | |
| 12 | F4-01000003 | WASHER, NYLON | |
| 13 | F4-01010000 | RIGHT CLAMP BRACKET ASSY | |
| 14 | GB/T5782-M8x140 | BOLT M8x140 | |
| 15 | GB/T5782-M6x130 | BOLT M6x130 | |
| 16 | F8-01010001 | BUSH, BOLT | |
| 17 | T5-01010005 | DAMPER RING, LOWER | |
| 18 | GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73 |
| 19 | F4-01000007 | TWIST SPRING RIGHT | 90508-14M11 |
| 20 | F4-01000006 | TWIST SPRING LEFT | 90508-14M10 |
| 21 | T5-01010300 | TILT LOCKED HOOK ASSY | |
| 22 | T5-01010002 | SPRING, BRACKET | |
| 23 | T5-01010400 | BRACKET ASYY, TILT LOCK | |
| 24 | F4-01030103 | JACKET, HANDLE | 6E0-43632-00 |
| 25 | F8-01010105 | PRESS PLATE | |
| 26 | F8-01010103 | BUSH, NYLON | |
| 27 | F4-01020000 | LEFT CLAMP BRACKET ASSY | |
| 28 | F4-01010004 | HANDLE, CLAMP | 69M-G3118-00 |
| 29 | F4-01010005 | RIVET, CLAMP HANDLE | 90243-04M01 |
| 30 | F4-01010002 | SCREW, CLAMP | 6E0-43116-01 |
| 31 | F4-01010003 | CLAMP PLATE | 6F5-43114-00 |
| 32 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 33 | GB/T889.1-M8 | LOCK NUT M8 | |
| 34 | F4-01000002 | PLATE, TWO HOLE | 68D-G3113-00 |
| 35 | F8-01010200 | LIMITATIVE ROD, TILT LOCK | |
| 36 | F4-01050002 | CONICAL SPRING |
