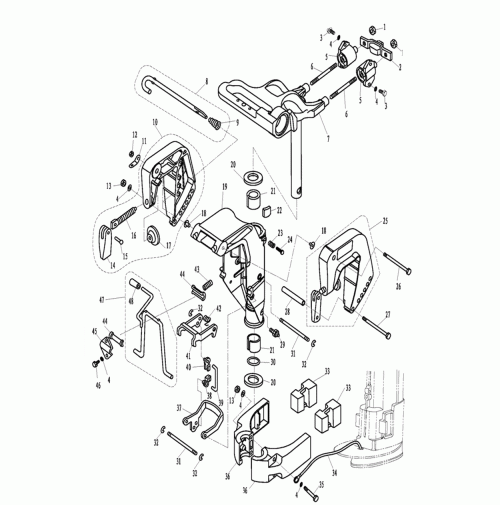

BRACKET - 4 Strok For F8F9.8
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | GB/T889.1-M8
| LOCK NUT M8
|
|
| 2 | F8-00000100
| DAMPER, FRONT
|
|
| 3 | GB/T5783-M6X20
| BOLT M6x20
|
|
| 4 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 5 | F8-02000100
| ABSORBER ASSY
|
|
| 6 | F8-01000003
| BOLT STUD M8x65
|
|
| 7 | F8-01020000
| HELM BRACKET ASSY
|
|
| 8 | F8-01010200
| LIMITATIVE ROD, TILT LOCK
|
|
| 9 | F4-01050002
| CONICAL SPRING
|
|
| 10 | T8-01010400
| LEFT CLAMP BRACKET ASSY
| |
| 11 | F4-01000002
| PLATE, TWO HOLE
| 68D-G3113-00
|
| 12 | GB/T889.1-M8
| LOCK NUT M8
|
|
| 13 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 14 | F4-01010004
| HANDLE, CLAMP
| 69M-G3118-00
|
| 15 | F4-01010005
| RIVET, CLAMP HANDLE
| 90243-04M01
|
| 16 | F8-01010002
| SCREW, CLAMP
|
|
| 17 | F4-01010003
| CLAMP PLATE
| 6F5-43114-00
|
| 18 | F4-01000003
| WASHER, NYLON
|
|
| 19 | F8-01010101
| BRACKET, ROTARY
|
|
| 20 | F8-01000001
| WASHER, ROTARY BRACKET
| |
| 21 | F8-01000002
| BUSH, ROTARY BRACKET
|
|
| 22 | F8-01000100
| LOCKED BLOCK ASSY
|
|
| 23 | F8-01010102
| SPRING, LOCKING
|
|
| 24 | GB/T5783-M8X30
| BOLT M8x30
| 90119-08102
|
| 25 | T8-01010300
| RIGHT CLAMP BRACKET ASSY
|
|
| 26 | GB/T5782-M8X140
| BOLT M8x140
|
|
| 27 | GB/T5782-M6X130
| BOLT M6x130
|
|
| 28 | F8-01010001
| BUSH, BOLT
|
|
| 29 | JB/T9740.1-M6
| NIPPLE, GREASE M6
|
|
| 30 | JASO-F404-35-022
| O-RING 22.4x3.5
| |
| 31 | F8-01010108
| SHAFT, ROTARY BRACKET
|
|
| 32 | GB/T896-5
| CIRCLIP 5
| 99080-05600
|
| 33 | F8-00000002
| BRACKET, DAMPER
|
|
| 34 | T15-02010100
| EARTH WIRE B
| 63V-82127-00
|
| 35 | GB/T5782-M6X75
| BOLT M6x75
|
|
| 36 | F8-00000001
| COVER, ABSORBER
|
|
| 37 | F8-01010106
| OUTER FRAME, ROTARY BRACKET
|
|
| 38 | F8-01010112
| JOINT, CONNECTING ROD
|
|
| 39 | F8-01010110
| LINK, INNER FRAME
|
|
| 40 | F8-01010111
| JOINT, INNER FRAME
| |
| 41 | F8-01010107
| INNER FRAME, ROTARY BRACKET
|
|
| 42 | F8-01010109
| SPRING, WREST
|
|
| 43 | F8-01010104
| SPRING, SUPPORT
|
|
| 44 | F8-01010103
| BUSH, NYLON
|
|
| 45 | F8-01010105
| PRESS PLATE
|
|
| 46 | GB/T5783-M6X12
| BOLT M6x12
| 90119-06M73
|
| 47 | F8-01010300
| BRACKET ASYY, TILT LOCK
|
|
| 48 | F4-01030103
| JACKET, HANDLE
| 6E0-43632-00
|
