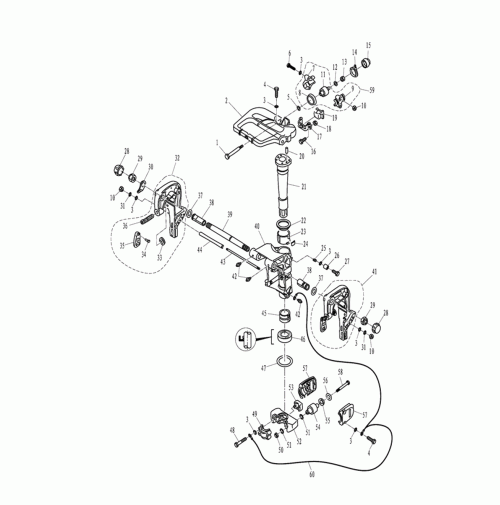

BRACKET I - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T36-00000002
| BOLT, ABSORBER
| 90101-08M02
|
| 2 | T36-01020001
| BRACKET, HELM
| 676-42511-03-4D
|
| 3 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 4 | GB/T9074.14-M8X30
| BOLT M8x30
| 0.00
|
| 5 | T36-00000012
| WASHER 9
| 0.00
|
| 6 | GB/T5782-M8x50
| BOLT M8x50
| 0.00
|
| 7 | T36-02010001
| COVER, ABSORBER UPPER
| 676-44512-00-94
|
| 8 | T36-02010103
| RUBBER RING, ABSORBER
| 676-44521-00
|
| 9 | T36-02010002
| COVER, ABSORBER LOWER
| 676-44511-00-94
|
| 10 | T36-02000004
| NUT M8
| 95380-08600
|
| 11 | T36-02010100
| ABSORBER A
| 679-44514-00-94
|
| 12 | F25-01010010
| THICK WASHER 8
| 90201-08M07
|
| 13 | GB/T889.1-M8
| LOCK NUT M8
| 0.00
|
| 14 | HT3.5x120
| NYLON CLAMP 3.5x120
| 0.00
|
| 15 | T36-00000003
| CAP, ABSORBER
| 679-44522-01
|
| 16 | GB/T9074.14-M6X25
| BOLT M6x25
| 97095-06025-00
|
| 17 | T36-00000005L
| BAFFLE, ABSORBER L
| 676-44518-00
|
| T36-00000005S
| BAFFLE, ABSORBER S
| 0.00
|
| 18 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 19 | T36-00000004
| ABSORBER, BRACKET
| 676-44533-00
|
| 20 | F25-00000014
| PIN 8x12
| 99530-08012
|
| 21 | T36-01020002
| SHAFT, HELM BRACKET
| 676-42521-00-94
|
| 22 | F25-01000003
| WASHER, ROTARY BRACKET
| 90209-52M00
|
| 23 | F25-01000001A
| BUSH, ROTARY BRACKET
| 90386-52M02
|
| 24 | F25-01000002
| LOCK PLATE ASSY
| 648-42528-00
|
| 25 | T36-01010325
| SPRING, LOCKING
| 90501-18M00
|
| 26 | T36-01010326
| JACKET, LOCK HOOK
| 676-43373-00
|
| 27 | GB/T9074.14-M8X25
| BOLT M8x25
| 90119-08m51
|
| 28 | F25-01010011
| PLASTIC NUT
| 6G5-43145-01
|
| 29 | F15-01010007
| NUT, SELF-LOCKING
| 90185-22043
|
| 30 | F25-01010004
| PLATE, TWO HOLE
| 6J8-43113-01
|
| 31 | GB/T93-8
| WASHER, SPRING 8
| 92995-08100
|
| 32 | T36-01010200
| RIGHT CLAMP BRACKET ASSY
| 676-43112-04-4D
|
| 33 | T36-01010104A
| CLAMP PLATE
| 0.00
|
| 34 | F25-01010103
| RIVET, CLAMP HANDLE
| 90243-04007
|
| 35 | F25-01010102
| HANDLE, CLAMP
| 663-43118-01-4D
|
| 36 | T36-01010103A
| SCREW, CLAMP
| 90149-14030
|
| 37 | F25-01010003
| WASHER
| 90201-22M03
|
| 38 | F25-01010002
| BUSH, NYLON
| 90386-22M15
|
| 39 | F15-01010001
| DOUBLE-EDGED TUBE
| 63W-43131-10
|
| 40 | T36-01010301
| BRACKET, ROTARY
| 676-43311-10-4D
|
| 41 | T36-01010100
| LEFT CLAMP BRACKET ASSY
| 676-43111-04-4D
|
| 42 | JB/T9740.1-M6
| NIPPLE, GREASE M6
| 93700-06M03
|
| 43 | T36-01010001
| BOLT, BRACKET
| 90116-08M00
|
| 44 | T36-01010002
| TUBE, BOLT
| 90387-08M02
|
| 45 | F25-01000004L
| BUSH, ROTARY BRACKET
| 90386-44M03
|
| 46 | T36-01000001
| OIL SEAL 44x54x7
| 93109-44M00
|
| 47 | T36-01000002
| WASHER, ROTARY BRACKET
| 90201-44M01
|
| 48 | GB/T5783-M8x45
| BOLT M8x45
| 0.00
|
| 49 | T36-01000005
| COVER, ABSORBER
| 676-44552-01-4D
|
| 50 | T36-00000011
| NUT M12x1.25
| 95380-12800
|
| 51 | T85-00000020
| PLATE, ABSORBER
| 90201-12M16
|
| 52 | T36-01000003
| COVER, FRONT DAMPER
| 676-44551-01-4D
|
| 53 | T36-01000004
| DAMPER, FRONT
| 676-44575-00
|
| 54 | T36-02020100
| ABSORBER B
| 62Y-44555-00-94
|
| 55 | T36-02020003
| GASKET, RUBBER
| 90202-21100
|
| 56 | T36-02020002
| BUSH, BOLT
| 90201-13M11
|
| 57 | T36-02000007
| COVER, ABSORBER
| 676-44553-01-4D
|
| 58 | T36-02020001
| BOLT, ABSORBER
| 90101-12M01
|
| 59 | T36-02010000
| ABSORBER ASSY
| 0.00
|
| 60 | T36-02000200
| EARTH WIRE
| 0.00
|
| 61 | T36-01010105A
| SCREW, CLAMP PLATE
| 0.00
|
