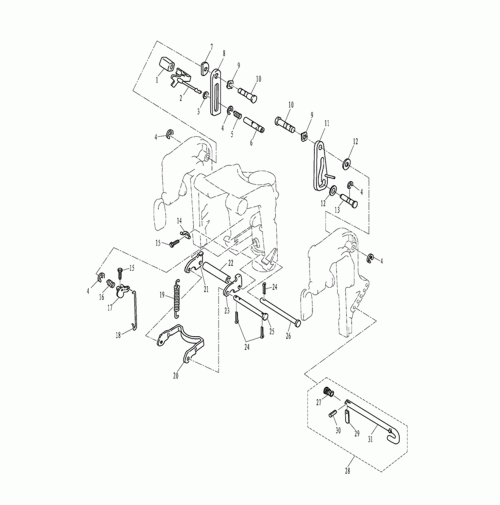

BRACKET II - 2 Strock for T40G
SN.
| PART NO.
| DESCRIPTION-ENGLISH
| OEM PART NO.
|
| 1 | T36-01010304-2 | JACKET, LOCKED HANDLE | 0.00
|
| 2 | T36-01010304 | LOCKED HANDLE ASSY | 6F5-43630-80
|
| 3 | T36-01010305 | WASHER, LOCKED HANDLE | 90202-06M00
|
| 4 | GB/T896-9 | CIRCLIP 9 | 99080-09600
|
| 5 | T36-01010308 | SPRING | 90501-14M05
|
| 6 | T36-01010307 | BUSH, LOCKED HANDLE | 676-43191-00
|
| 7 | T36-01010313 | WASHER, LIMITED PLATE
| 676-43132-00 |
| 8 | T36-01010306 | PLATE, TILT STOPPER | 6F5-43627-80
|
| 9 | T36-01010323
| WAVE WASHER
| 90206-12M00
|
| 10 | T36-01010322
| PIN, DETENT
| 90249-12M27
|
| 11 | T36-01010311
| LIMITATIVE BOARD ASSY
| 6F5-43628-80
|
| 12 | T36-01010324
| WASHER, NYLON
| 90202-12M01
|
| 13 | T36-01010327
| LIMITED AXIS, TILT
| 90249-12M13
|
| 14 | T36-01010302
| PLATED, PULL ROD
| 90202-12M01
|
| 15 | GB/T5783-M5x10
| BOLT M5x10
| 0.00
|
| 16 | T36-01010309
| SPRING, SUPPORT
| 90508-14M00
|
| 17 | T36-01010310
| BRACKET, PULL ROD
| 676-43631-00
|
| 18 | T36-01010321
| PULL ROD, INNER FRAME
| 676-43616-00
|
| 19 | T36-01010318
| SPRING, INNER FRAME
| 90506-30M00
|
| 20 | T36-01010314
| INNER FRAME, LOCKED HANDLE
| 676-43613-00
|
| 21 | T36-01010316
| OUTER FRAME B
| 676-43614-00
|
| 22 | T36-01010319
| BUSH, OUTER FRAME
| 90387-07M04
|
| 23 | T36-01010315
| OUTER FRAME A
| 676-43615-00
|
| 24 | GB/T91-2x12
| COTTER PIN 2x12
| 0.00
|
| 25 | T36-01010317
| SHAFT, INNER FRAME
| 90249-07M01
|
| 26 | T36-01010320
| SHAFT, OUTER FRAME
| 90249-07M02
|
| 27 | F25-01010403
| CONICAL SPRING
| 90502-10M04
|
| 28 | T36-01010400
| LIMITATIVE ROD, TILT LOCK
| 676-43160-02
|
| 29 | F25-01010402
| BRACKET, ANTI-OFF
| 676-43165-00
|
| 30 | GB/T879.1-3x10
| PIN 3x10
| 0.00
|
| 31 | T36-01010401
| LIMITATIVE ROD, TILT LOCK
| 0.00
|
