BRACKET II - 2 Strock for T40J
- Brand: Yamaha
- Product Code: BRACKET II - 2 Strock for T40J
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00

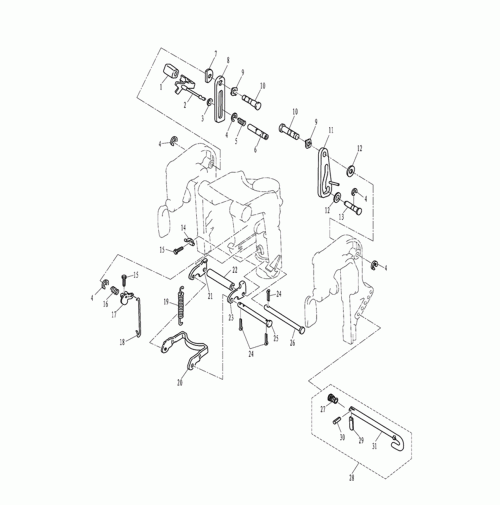

BRACKET II - 2 Strock for T40J
| SN. | PART NO. | DESCRIPTION-ENGLISH | OEM PART NO. |
| 1 | T36-01010304-2 | JACKET, LOCKED HANDLE | 0.00 |
| 2 | T36-01010304 | LOCKED HANDLE ASSY | 6F5-43630-80 |
| 3 | T36-01010305 | WASHER, LOCKED HANDLE | 90202-06M00 |
| 4 | GB/T896-9 | CIRCLIP 9 | 99080-09600 |
| 5 | T36-01010308 | SPRING | 90501-14M05 |
| 6 | T36-01010307 | BUSH, LOCKED HANDLE | 676-43191-00 |
| 7 | T36-01010313 | WASHER, LIMITED PLATE | 676-43132-00 |
| 8 | T36-01010306 | PLATE, TILT STOPPER | 6F5-43627-80 |
| 9 | T36-01010323 | WAVE WASHER | 90206-12M00 |
| 10 | T36-01010322 | PIN, DETENT | 90249-12M27 |
| 11 | T36-01010311 | LIMITATIVE BOARD ASSY | 6F5-43628-80 |
| 12 | T36-01010324 | WASHER, NYLON | 90202-12M01 |
| 13 | T36-01010327 | LIMITED AXIS, TILT | 90249-12M13 |
| 14 | T36-01010302 | PLATED, PULL ROD | 90202-12M01 |
| 15 | GB/T5783-M5x10 | BOLT M5x10 | 0.00 |
| 16 | T36-01010309 | SPRING, SUPPORT | 90508-14M00 |
| 17 | T36-01010310 | BRACKET, PULL ROD | 676-43631-00 |
| 18 | T36-01010321 | PULL ROD, INNER FRAME | 676-43616-00 |
| 19 | T36-01010318 | SPRING, INNER FRAME | 90506-30M00 |
| 20 | T36-01010314 | INNER FRAME, LOCKED HANDLE | 676-43613-00 |
| 21 | T36-01010316 | OUTER FRAME B | 676-43614-00 |
| 22 | T36-01010319 | BUSH, OUTER FRAME | 90387-07M04 |
| 23 | T36-01010315 | OUTER FRAME A | 676-43615-00 |
| 24 | GB/T91-2x12 | COTTER PIN 2x12 | 0.00 |
| 25 | T36-01010317 | SHAFT, INNER FRAME | 90249-07M01 |
| 26 | T36-01010320 | SHAFT, OUTER FRAME | 90249-07M02 |
| 27 | F25-01010403 | CONICAL SPRING | 90502-10M04 |
| 28 | T36-01010400 | LIMITATIVE ROD, TILT LOCK | 676-43160-02 |
| 29 | F25-01010402 | BRACKET, ANTI-OFF | 676-43165-00 |
| 30 | GB/T879.1-3x10 | PIN 3x10 | 0.00 |
| 31 | T36-01010401 | LIMITATIVE ROD, TILT LOCK | 0.00 |
