Dealer Service Kit (Hydraulic Systems) - DSKIT:

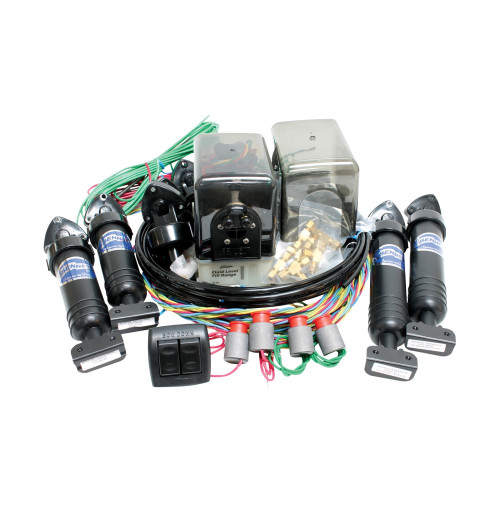

The Dealer Service Kit includes a HPU, 4 actuators and a rocker control PLUS several of the most common replacement parts – at one very low price.

ITEMS INCLUDED IN SET:

DESCRIPTION	PART #	QUANTITY
Hydraulic Actuator Assembly	A1101A	2
Hydraulic Upper Hinge With O-Ring	A1103	2
Hydraulic Actuator Lower Hinge	A1113	10
Lower Hinge Pin	A1115	20
Actuator Upper Hinge O-Ring	A1120	12
Actuator Piston O-Ring	A1121	12
Small Hydraulic Actuator	A1200SRC	2
White PVC Clip for Actuator	ATC9	6
Actuator Upper Hinge with Coil - Port	CC3003-P	1
Actuator Upper Hinge with Coil - Stbd.	CC3003-S	1
#10 x 1-1/4" Full Thread Screw	EH1071	50
EIC Bridge Wire Harness 20′	EIC801	2
EIC Port Upper Hinge with 10' Sensor Wire	EIC901P	1
EIC Stbd. Port Upper Hinge with 10' Sensor Wire	EIC901S	1
Hydraulic Euro-Style Rocker Switch	ES2000	1
Hydraulic Trim Tab Hardware Pack	H1170A	1
Dual Actuator Hardware Pack	H1170B	1
3" & 4" Pipe Nipples (2" - 6" Available)	H1171(3-4)	2 ea.
Female Elbow	H1172	12
#14 x 1-1/2" Full Thread Screw	H1174	30
1/4 - 20 X 3/4" Machine Screw	H1175	20
Mounting Bracket for HPU	H1179	2
Pigtail for Wire Harness	PT109	2

DESCRIPTION	PART #	QUANTITY
Pigtail for HPU or Control	PT110	2
EIC Port Pigtail	PT950P	3
EIC Starboard Pigtail	PT950S	3
Hydraulic Tubing 20′ (Available 10′ – 50′)	T1125(20-50)	2
Brass Line Tee Fitting	T1126	6
Solenoid Valve 12V - Green Wire (Stbd.)	T1127	24
Solenoid Valve 12V - Green Wire (Stbd.)	VP1135G	2
Solenoid Valve 12V - Red Wire (Port)	VP1135R	2
Lexan Cover	VP1138	1
1/8" P	VP1146	5
Valve Seat with O-Ring	VP1159	20
HPU Valve Spring	VP1160	10
HPU Valve Plunger	VP1161	10
Hydraulic Power Unit (Pump)	VP351HPU1	1
Standard 22' Wire Harness	WH100022	2
