Hpower Battery Charger -  A/C to D/C  - 24 V - From 45 to 100 Ampere - 3 banks - HPO24X - Cristec:

24V/45A, 24V/60A, 24V/80A & 24V/100A

3-PHASE 400V INPUT : 24V/60A, 24V/100A

Specialized in the design and manufacturing of automatic battery chargers for more than 30 years, CRISTEC is launching high-quality battery chargers for the toughest conditions for professional and recreational purposes: HPOWER.

This new generation of battery chargers replaces the very popular CPS3 range. Available models are :

24V/45A,

24V/60A,

24V/80A,

24V/100A.

With CRISTEC HPOWER battery chargers you are assured of unrivaled efficiency, ruggedness, flexibility, and battery life increase. Fully AC universal equipped and suitable for every type of battery including Li-Ion, they operate at full power up to 50°C without derating.

Internal circuit boards have been specially designed and coated to withstand to adverse environment : heat, humidity, and salt air.

Options available :

> Temperature probe

> Remote touch-screen control panel

> Parallelization kit

HPOWER battery chargers are also compatible with a DC 144V (121V–169V) or a DC 288V (247V–346V) input network

Some approved models are also available: HPO-CERT

Availability :

3-phase 400V input : 24V/60A, 24V/100A & 48V/50A : TBA

A- PERFORMANCES:

• 5-stage charging profile to ensure fast and complete charging, power-supply mode available
• Full power up to +50°C ambient with no derating allowing rated charge for intensive use in a hot or confined place
• 3 isolated battery banks, with no current limitation

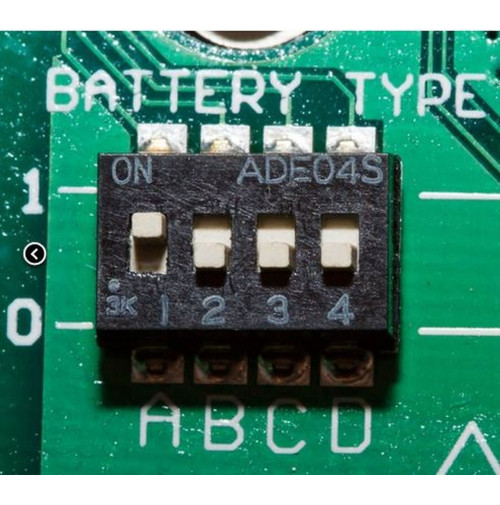

• Suitable for all battery types: flooded, Lead-sealed, Calcium-Lead, AGM, gel, Lithium, etc.
• Increased battery life

B- WORLDWIDE USE:

• 90-265VAC/47-65Hz auto-ranging
• Rated operation regardless of the available AC voltage including from a genset
• Memory function: in case of an unstable AC network the charger will not reset to prevent battery overcharging
• Best in class protection: removable fuses and varistor, a coated circuit board for the marine environment, automatic burn-in test
• UL-1236 and CSA 22.2-107.2 standards compliant (pending)

C- ERGONOMICS:

• Lightweight rugged Aluminium casing with special coating for the marine environment

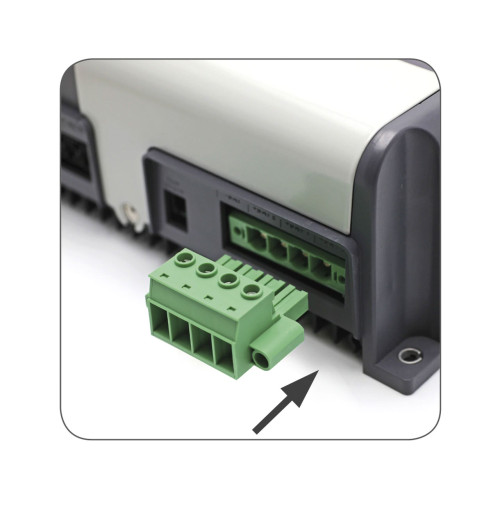

• Optimal accessibility: specific secured connection compartment
• Readability comfort Dedicated LEDs and icons on the front

D- APPLICATIONS:

HPOWER AC-DC battery chargers adapt to different markets and applications:

• Professional marine: naval, service boat, fishing boat, passenger boat, tug, barge, barge, lighthouse, and beacon.
• Recreational marine: yachting, sailing boat, motor boat, electric boat, catamaran, speedboat, etc.
• Mobile :

        > Emergency vehicles: firemen, ambulance, rescue, depollution, etc.

        > Recreational vehicles: motorhome, golf course, etc.

        > Special vehicles: surveillance, transport of animals, Van, public works, etc.

• Industry: automated cleaning, onboard camera, recognition robots, telecommunications, etc.
• Wind-powered: land sites
• Solar: isolated sites
