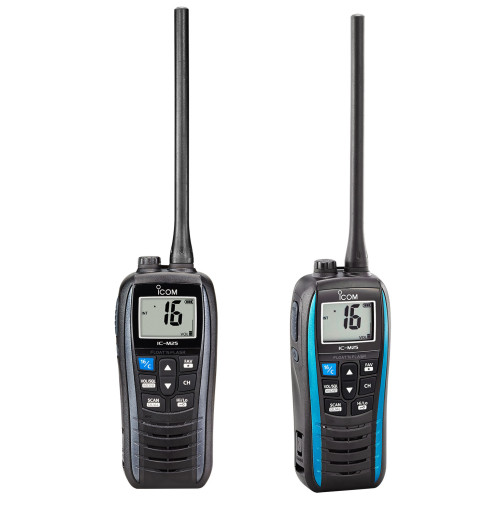

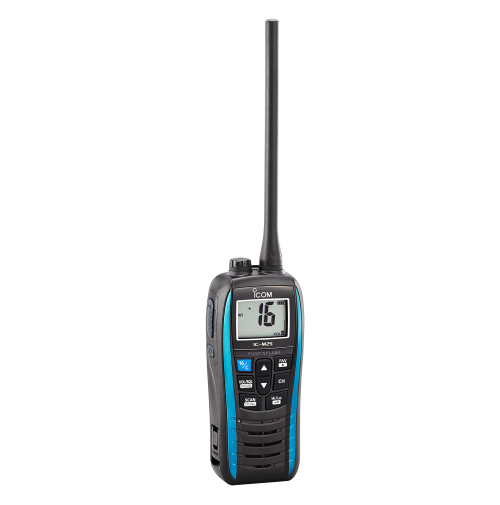

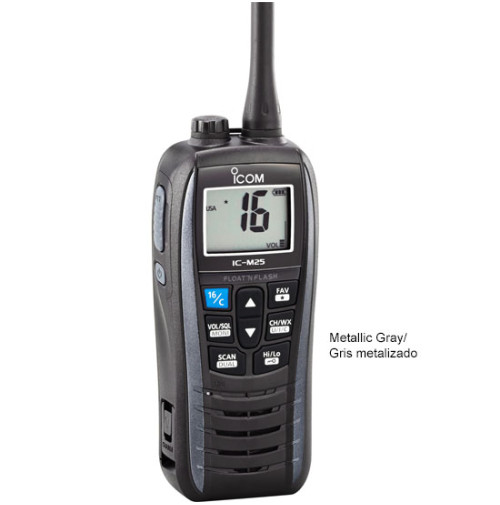

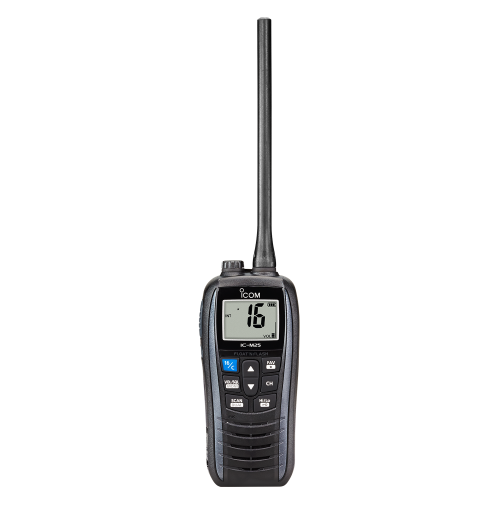

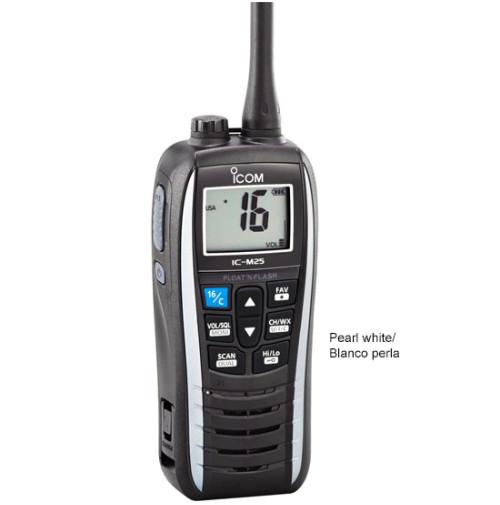

VHF Handheld Marine Transceiver - M25EURO-17X - ICOM:
Buoyant, Lightweight & Smart Features
Lightweight and Compact Body
The IC-M25EURO is the lightest weight buoyant marine radio* (218 g). Its slim depth (30.5 mm) can be comfortably operated with one hand. These features make it easier to equip, carry and operate for a long time.
*As of June 2022, researched by Icom.

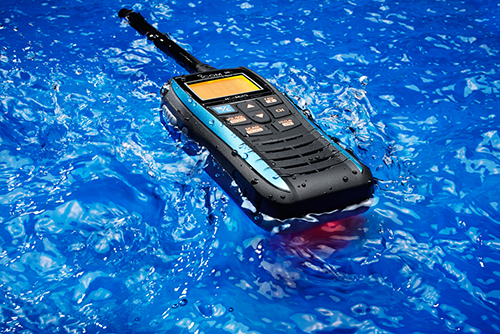

Float'n Flash
If you accidentally drop the IC-M25EURO into the water, it will float, flash and sound an alarm. The buoyancy, the flashing light, and the sound reduce the risk of loss at sea.

11 Hours of Battery Life
The built-in 1570 mAh (typical) Li-ion battery realizes 5 Watts (approx.) output power and 11 hours of operation*.
* Typical operation with Tx (Hi): Rx: Standby=5:5:90
700 mW Audio Output
The IC-M25EURO provides a powerful 700 mW (typical) audio output and received voice can be heard loud and clear.
Easy-to-Use

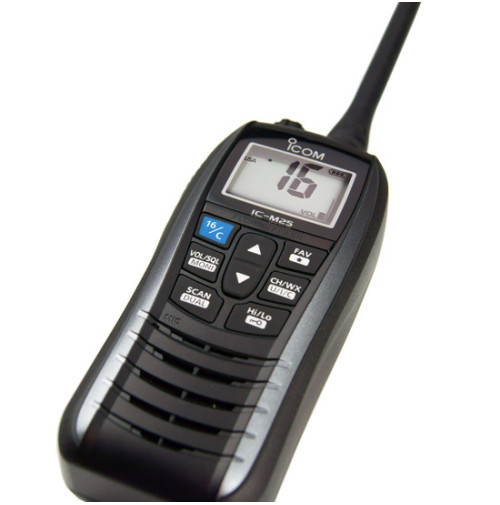

On the front panel, the function keys are good-sized and simply laid out. The large display features big channel numbers supporting 4-digit channels and automatic backlighting.

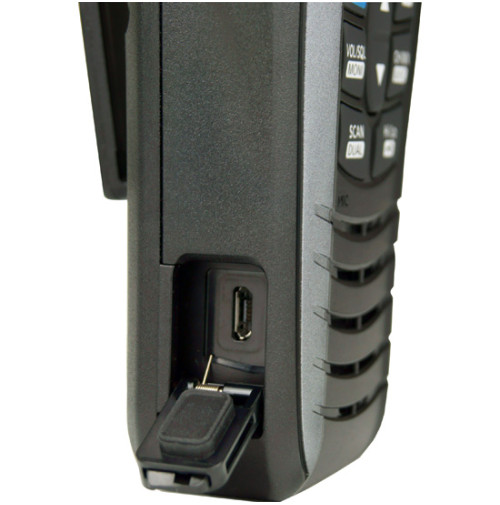

USB Charging (Micro-B USB type)
The IC-M25EURO adopts a micro-B USB charger connector* widely used on mobile devices. The built-in Li-ion battery pack can be charged quickly in three hours (approx.).
* The IC-M25EURO accepts 5 V/1 A (Max.) input. Use of third-party products is not guaranteed.
Optional Speaker-Microphone, HM-213

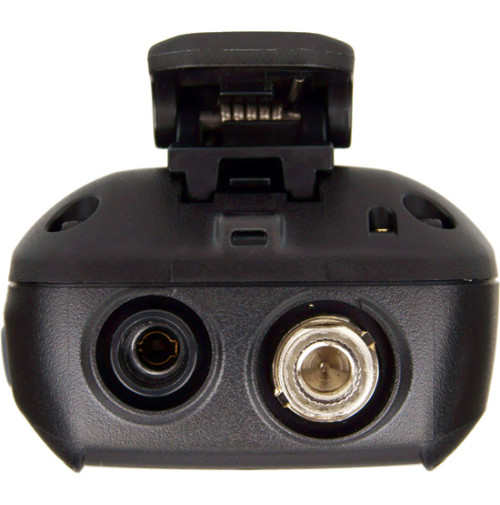

The optional waterproof speaker-microphone, HM-213, provides commercial-grade convenience while mounting the radio on the waist. The radio floats even when the HM-213 is attached.
Other Features
- * IPX7 waterproof construction (1 m depth of water for 30 minutes)
- * 4-step battery life indicator
- * 2-step power save function
- * Dual/Tri-watch functions*
- * Instant access to Ch 16 or programmable call channel
- * Favorite channel function
- * Monitor function opens noise squelch
- * Auto scan function*
- * Display auto backlighting
- * AquaQuake™ draining function
* Not available in the NDL version
Supplied Accessories
・AC adapter and USB cable*
・Belt clip, MB-133
・Antenna
・Hand strap
* Not supplied or may differ, depending on the version.
Applicable IP Rating |
Ingress Protection Standard |
M25EURO |
Water |
IPX7 (Waterproof protection) |
RECEIVER |
Adjacent channel selectivity |
70dB |
Audio output power (at 10% distortion) |
Internal SP: 700mW typ. ( 8Ω load, at 1 kHz) //
External SP: 200mW (4Ω load) |
Intermodulation |
68dB |
Sensitivity |
–6dBμ emf typ. (at 20dB SINAD) |
Spurious response |
70dB |
Squelch sensitivity |
–6dBμ emf typ. (at threshold) |
TRANSMITTER |
Adjacent channel power |
70dB |
Frequency stability |
±1.5kHz |
Max. frequency deviation |
±5.0kHz |
Output power |
5W (approx.) / 1W/0.5W*
* For only FRG version |
Residual modulation |
40dB |
Spurious emissions |
0.25μW |
GENERAL |
Antenna impedance |
50Ω |
Current drain |
(AT 3.7VDC) : Tx: (5W): 2.3A //
Rx (Internal SP/External SP): 400mA/200mA (Max. audio) |
Dimensions (W×H×D) (Projections not included) |
56.6×134.2×30.5 mm |
Frequency range |
Tx: 156.000–161.450MHz //
Rx: 156.000–163.425MHz
|
Operating temperature range |
–15°C to +55°C |
Power supply voltage |
3.7V DC nominal |
Type of emission |
16K0G3E (FM) |
Usable channel groups |
INT, USA*, ATIS* channels
* Depending on version |
Weight (approximately) |
220g
(With FA-SC59V and MB-133) |
